b. Grip the handle to pull the power supply out of the enclosure as shown in
Figure 56.
6. Insert the replacement power supply unit into the enclosure with the handle
pointing towards the center of the enclosure. Insert the unit in the same
orientation as the one that you removed.
svc00633

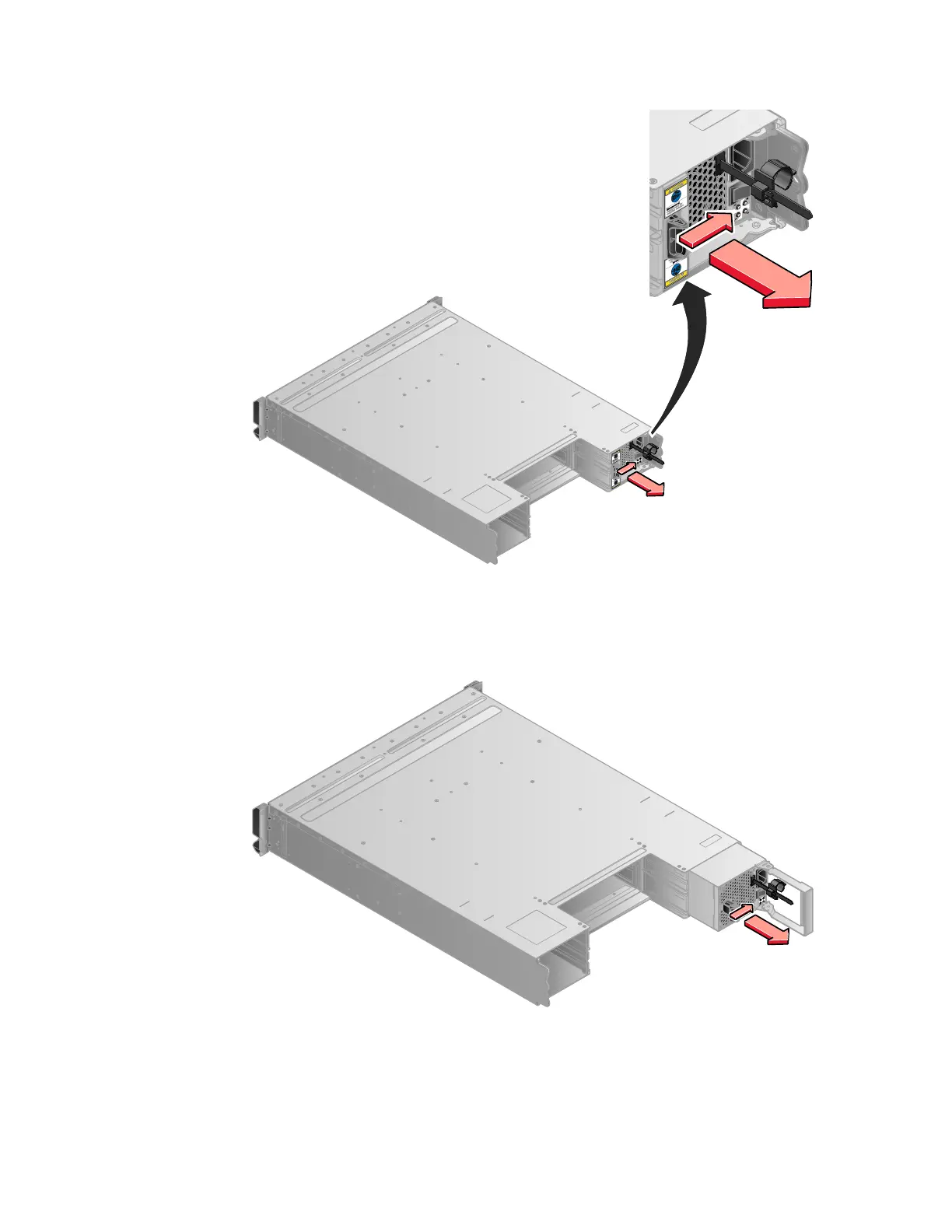

Figure 55. Directions for lifting the handle on the power supply unit
svc00632
Figure 56. Using the handle to remove a power supply unit
216 Storwize V7000 Unified: Problem Determination Guide Version

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IBM Storwize V7000 2076-324 and is the answer not in the manual?

IBM Storwize V7000 2076-324 Specifications

General IconGeneral
RAID LevelsRAID 0, 1, 5, 6, 10
Maximum Drives Supported504
Drive Bays24
Product TypeStorage system
Form Factor2U
Drive Type SupportedSAS, NL-SAS, SSD
Host Interfaces8 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Cache Memory32 GB
Operating SystemIBM SAN Volume Controller
