2. Align the enclosure with the front of the rack cabinet.
3. Carefully slide the enclosure into the rack along the rails until the enclosure is
fully inserted.
Notes:
a. The preinstalled rails on the sides of the enclosure must fit into the
rack-mounted rails that you previously installed.
b. The rails are not designed to hold an enclosure that is partially inserted.
The enclosure must always be in a fully inserted position.
c. Do not have more than one enclosure extended out of the rack at the same
time to avoid the danger of the rack toppling over.
4. Insert a screw into the hole behind each enclosure end cap and tighten the
screw.
svc00648

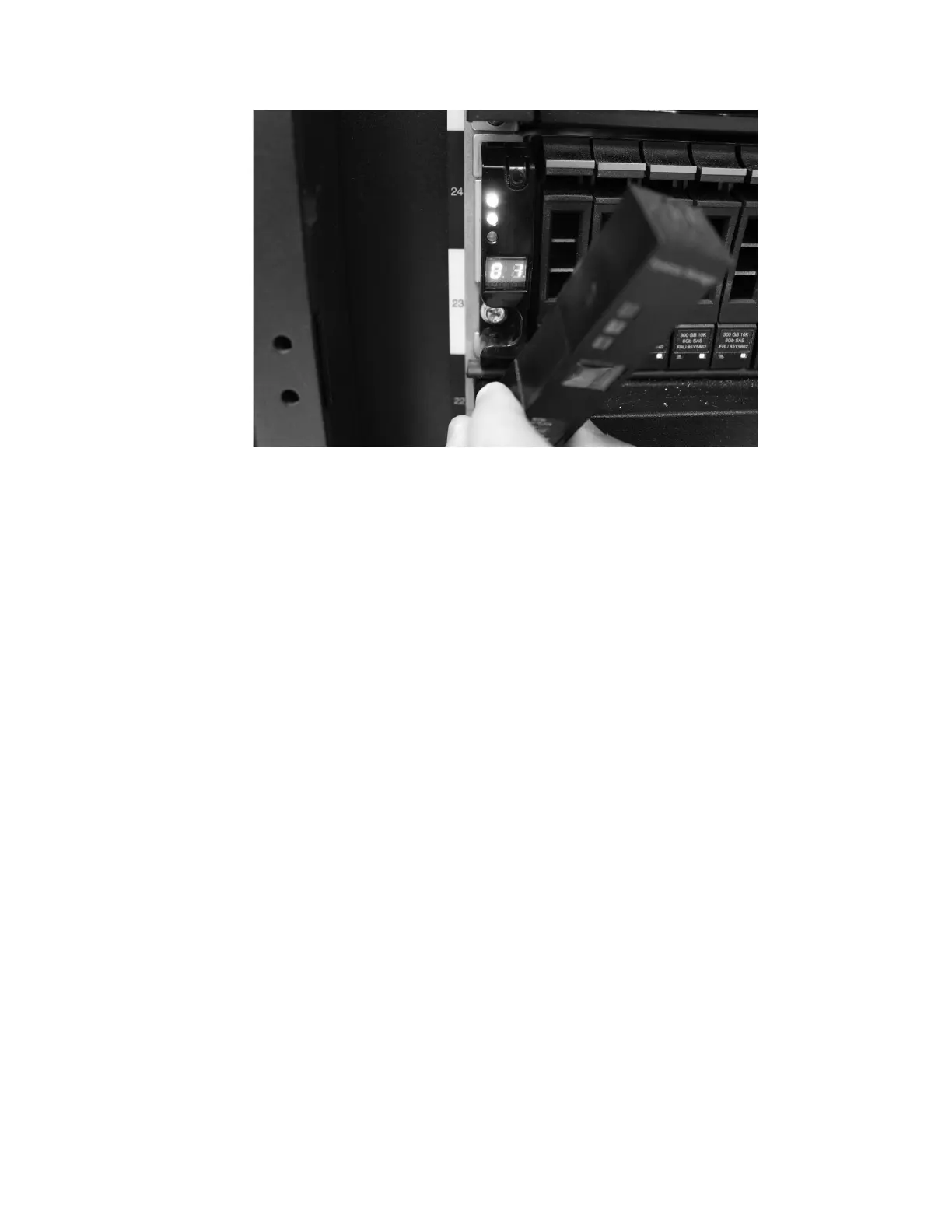

Figure 33. Removing the enclosure end cap
80 IBM Storwize V7000 Unified: Adding Storwize V7000 File Modules to an existing Storwize V7000 system 2073-720
