5. After matching each end cap's serial number to the serial number found on the
rear of each enclosure, push the end caps back into position.
6. Repeat this procedure for each additional enclosure that you install.
Reconnect the SAS cables to the expansion enclosures
About this task
In the event that you repositioned the control enclosure and any expansion
enclosures, reconnect the SAS cables. The cables lengths may have changed in
some cases, depending on your site plan.
Installing the support rails for file module slides
The file module's rails differ from those of the enclosures.
Before you begin
Review the documentation that comes with the rack cabinet for safety and cabling
information. Before you install the file module in a rack cabinet, review the
following guidelines:
v Two or more people are required to install devices 2U or larger in a rack cabinet.
v Make sure that the room air temperature is below 35°C (95°F).
v Do not block any air vents; usually 15 cm (6 inch) of space provides proper
airflow.
v Do not leave open spaces above or below an installed file module in the rack
cabinet. To help prevent damage to file module components, always install a
blank filler panel to cover the open space and to help ensure proper air
circulation.
v Install the file module only in a rack cabinet with perforated doors.
v Plan the device installation starting from the bottom of the rack cabinet.
v Install the heaviest device in the bottom of the rack cabinet.
svc00688

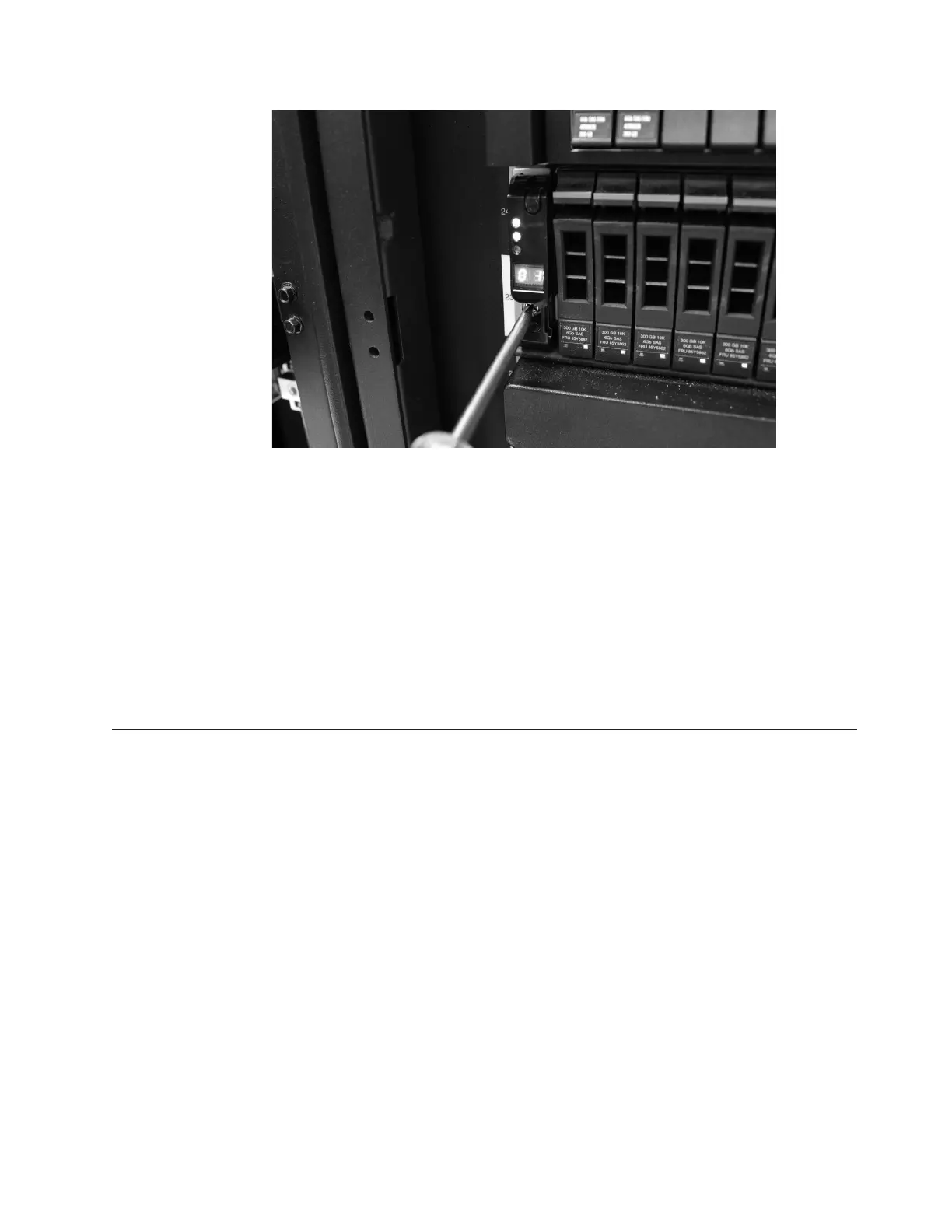

Figure 34. Securing an enclosure to a rack cabinet
Chapter 5. Performing the hardware installation 81
