IBM Storwize V7000 Unified User Manual

3. Slide the cable retention bracket away from the power supply unit until there is
enough room to attach the cable retention bracket to the cable. When sliding
the bracket away from the cable plug-in, pull the lever on the bracket that
controls the cable tie slightly towards the center of the canister. You do not
need to pull the lever to slide the bracket towards the cable plug-in.
4. Attach a power cord to each of the two power supply units in each enclosure.
Ensure that cables are installed in an orderly way to reduce the risk of cable
damage when replaceable units are removed or inserted.
5. Place the cable retention bracket around the end of the cable that plugs into the
power supply unit.
6. Slide the cable retention bracket along the cord until it fits snugly against the
plug end of the cable.
svc00686

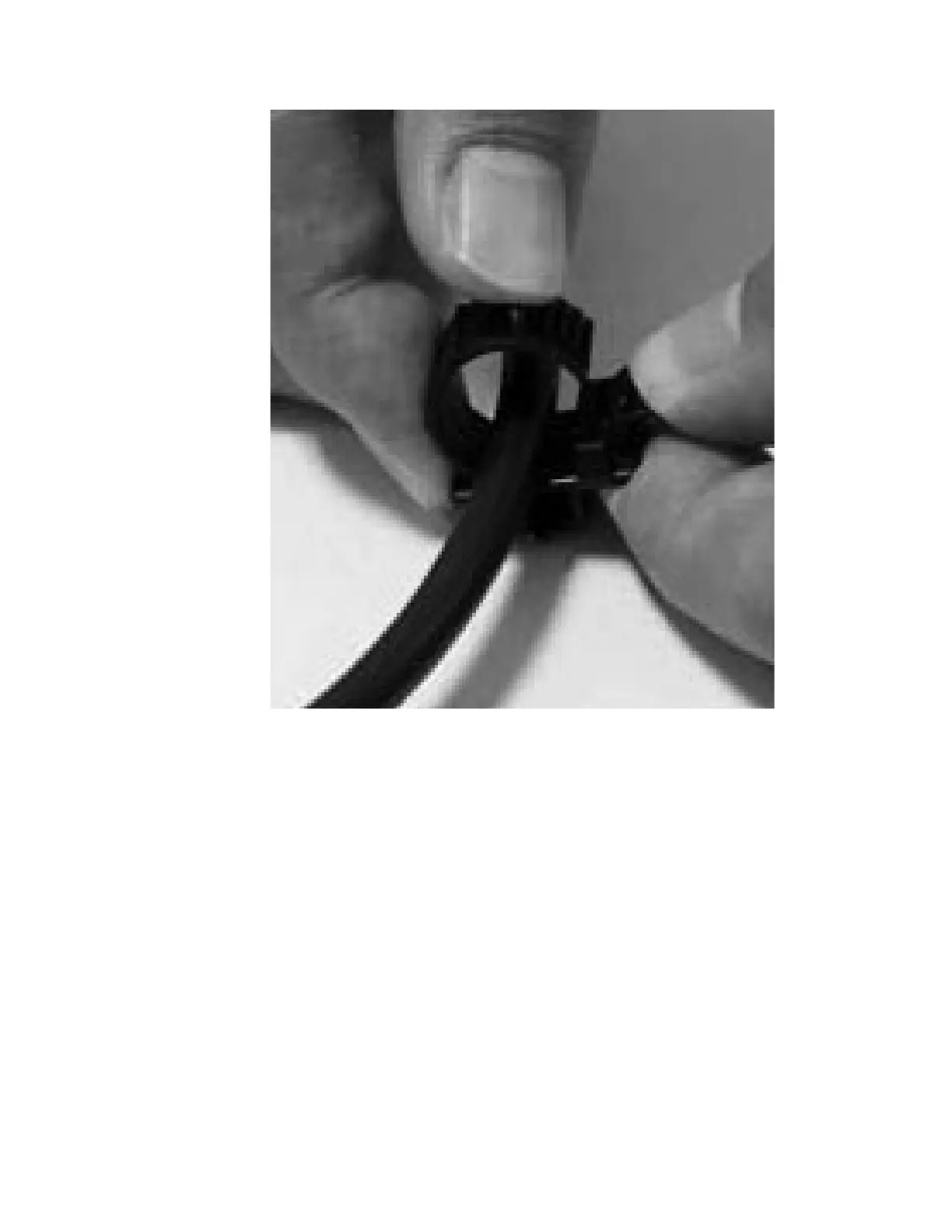

Figure 57. Unlocking the cable retention bracket
Chapter 5. Performing the hardware installation 99

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
