2. Remove a screw from the hole behind each enclosure end cap, as shown below.
3. Carefully slide the enclosure out of the rack along the rails.
4. Repeat this procedure for each additional enclosure that you remove.
Removing and reinstalling the enclosure rails
These instructions guide you through repositioning existing enclosure rails.
About this task
Removing the enclosure and rails
svc00648

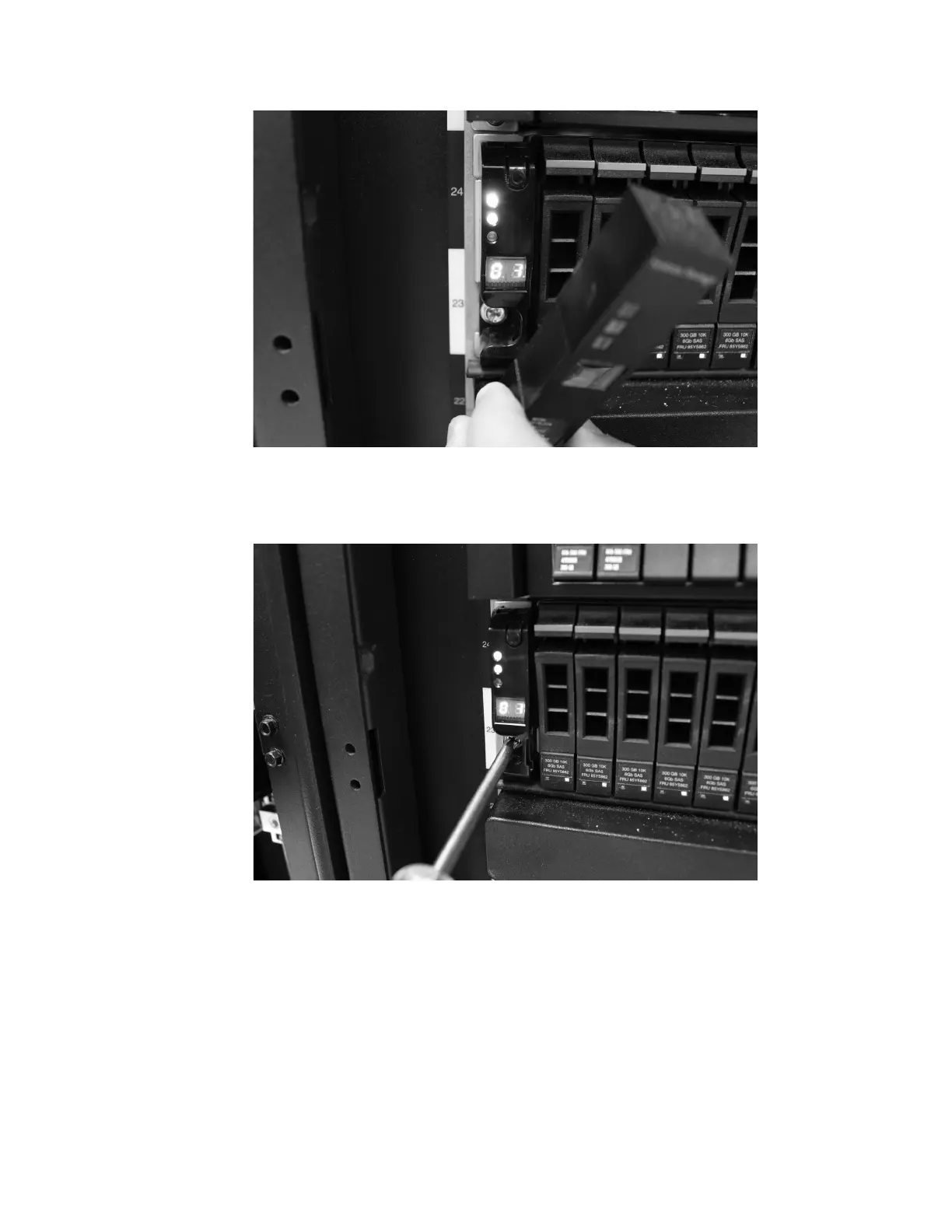

Figure 27. Removing the enclosure end cap
svc00688
Figure 28. Securing an enclosure to a rack cabinet
74 IBM Storwize V7000 Unified: Adding Storwize V7000 File Modules to an existing Storwize V7000 system 2073-720
