After you have removed the enclosure that you want to relocate, remove the rails.
This guide covers removing and then installing the rails at a preferred rack
location.
1. Figure 29 shows two rack units with the back mounting holes identified at the
rear of the rack.
v 1 Bottom rail location pin hole
v 2 Rack mounting screw hole
v 3 Top rail location pin hole
Remove the clamping screw that inserts into the rack mounting hole 2,
located between the rail location pins.
2. Remove the rail location pins that are in holes 1 and 3 in the rack cabinet.
3. Working at the front of the rack cabinet, identify the two standard rack units of
space in the rack.
Figure 30 on page 76 shows two rack units with the front mounting holes
identified.
svc00696
2 Units
1
2
3

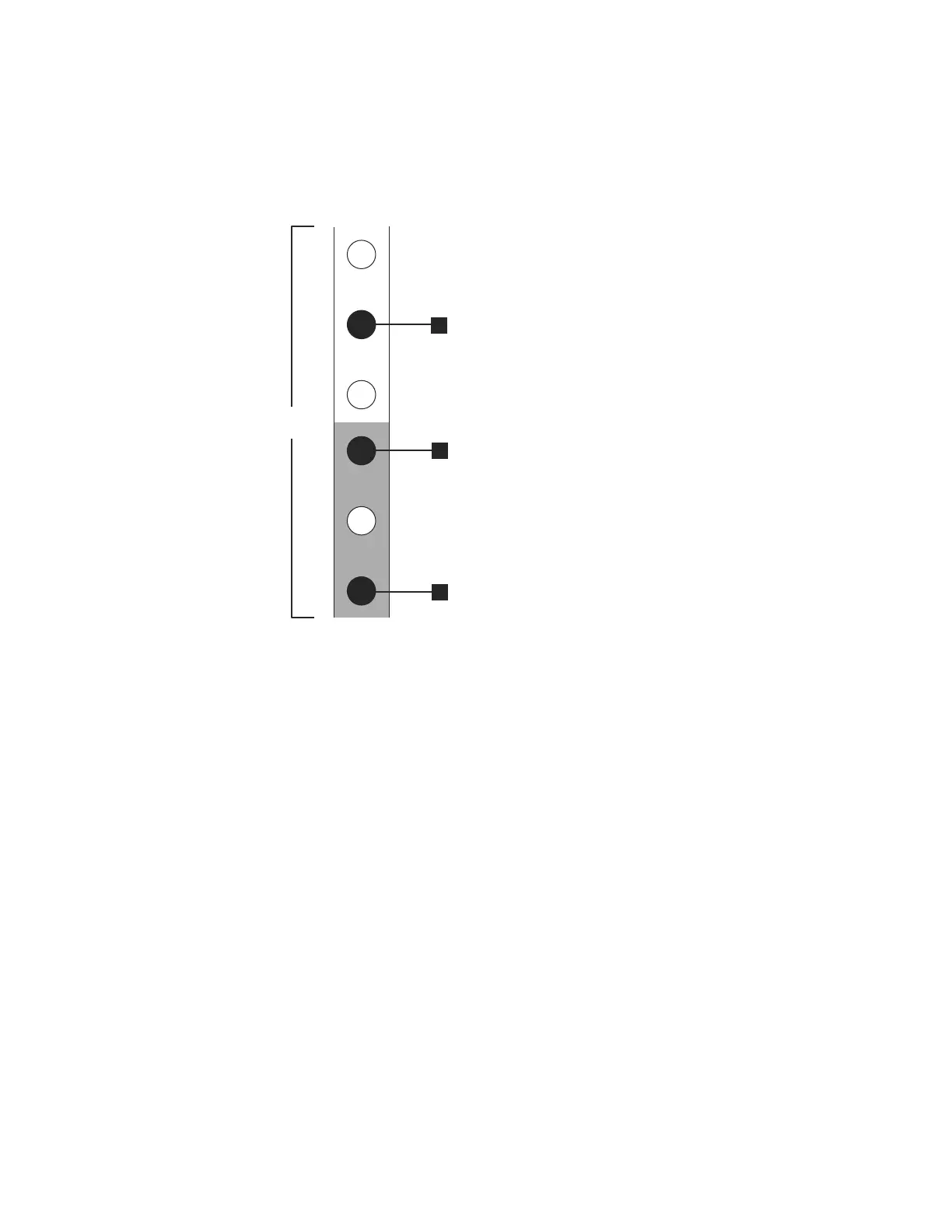

Figure 29. Hole locations in the back of the rack
Chapter 5. Performing the hardware installation 75
