IBM Storwize V7000 User Manual

b. Grip the handle to pull the power supply out of the enclosure as shown in
Figure 30.
6. Insert the replacement power supply unit into the enclosure with the handle
pointing towards the center of the enclosure. Insert the unit in the same
orientation as the one that you removed.
svc00633

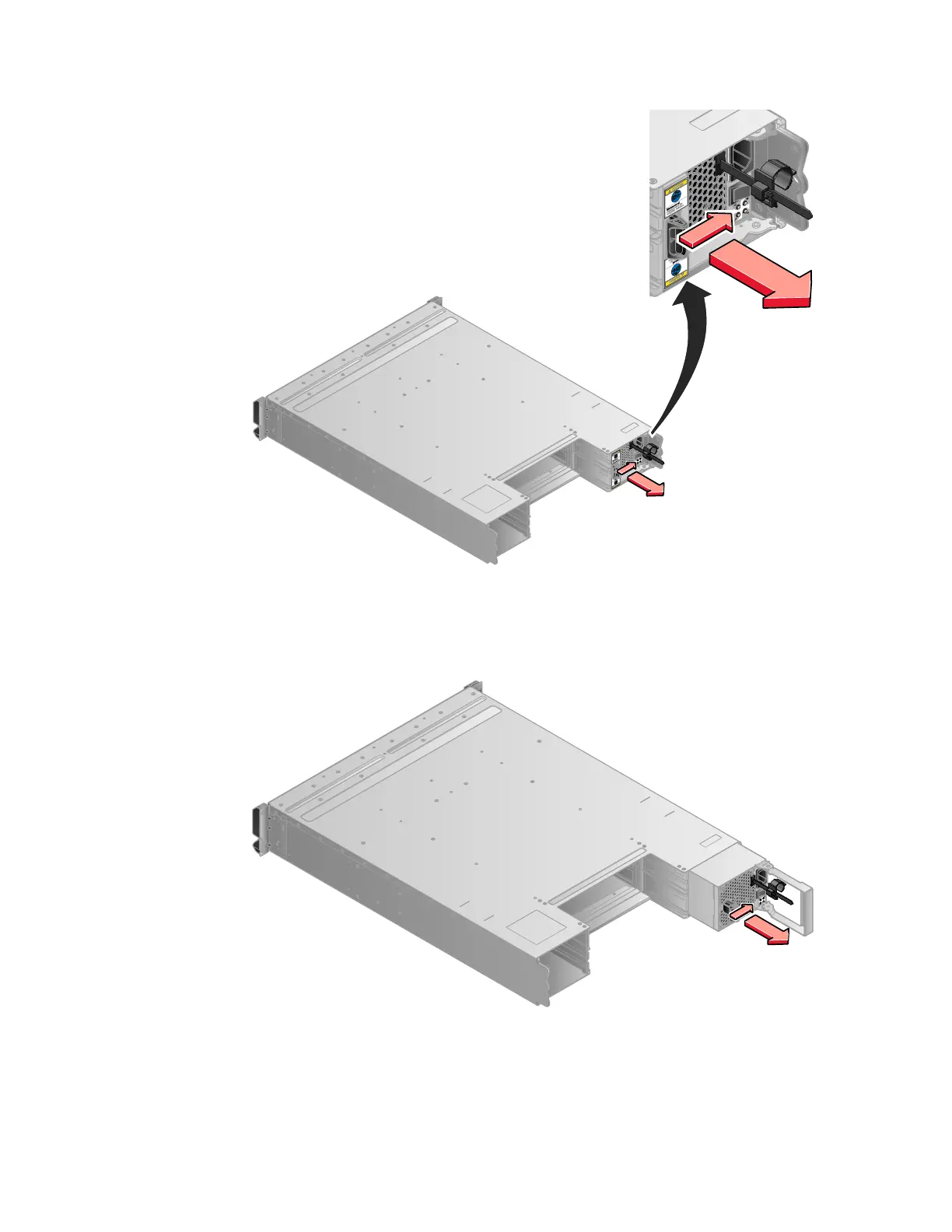

Figure 29. Directions for lifting the handle on the power supply unit
svc00632
Figure 30. Using the handle to remove a power supply unit
94 Storwize V7000: Troubleshooting, Recovery, and Maintenance Guide

IBM Storwize V7000 Specifications

General

Model	Storwize V7000
Storage Type	Hybrid Flash Array
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SSD, SAS
Host Interface	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI, 12 Gbps SAS
Maximum Cache	32GB
Operating System Support	IBM AIX, Linux, Windows, VMware
Data Reduction Features	Real-time Compression
Management Software	IBM Spectrum Virtualize
