IBM Storwize V7000 User Manual

3. Open the handle to the full extension.
4. Pull out the drive.
5. Push the new drive back into the slot until the handle starts to move.
6. Finish inserting the drive by closing the handle until the locking catch clicks
into place.
svc00614

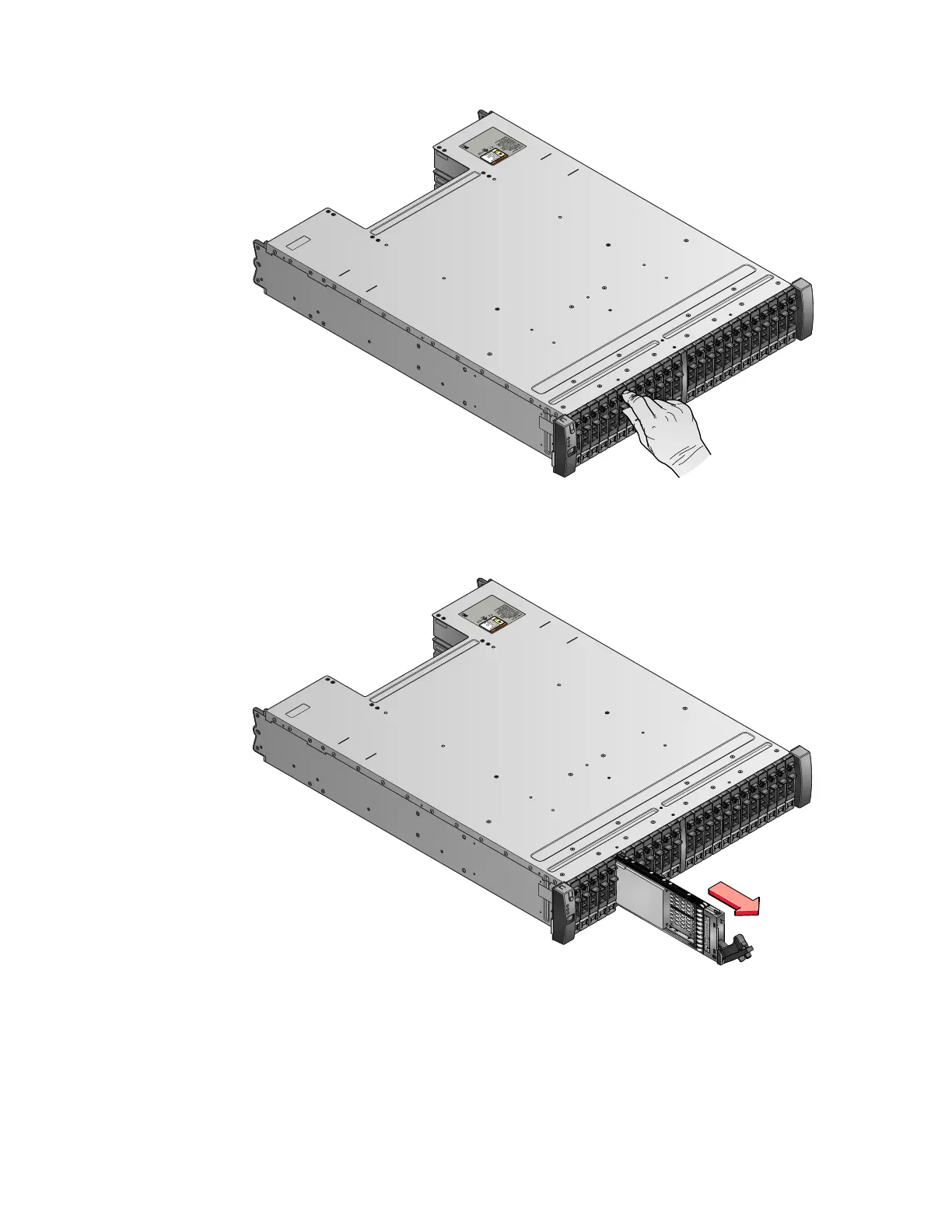

Figure 36. Unlocking the 2.5" drive
svc00615
Figure 37. Removing the 2.5" drive
106 Storwize V7000: Troubleshooting, Recovery, and Maintenance Guide

IBM Storwize V7000 Specifications

General

Model	Storwize V7000
Storage Type	Hybrid Flash Array
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SSD, SAS
Host Interface	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI, 12 Gbps SAS
Maximum Cache	32GB
Operating System Support	IBM AIX, Linux, Windows, VMware
Data Reduction Features	Real-time Compression
Management Software	IBM Spectrum Virtualize
