Fiscal screw
The fiscal screw A (Figure 3) is a fiscal security device, used to secure the fiscal assembly in the
printer. The screw is sealed using the required country specific fiscal seal. The 4610-NF can
accommodate wire, wax, or lead seals.
RS-232 audit port
This RS-232 audit port B (Figure 3) is used to connect a laptop or other audit device to the
printer.
RS-232 communications port
This RS-232 communications port C (Figure 3) is an optional method of communicating between
the POS system and the printer.
24 V USB communications port
This 24 V USB communications port D (Figure 3) is used to communicate with the printer and
provide power to the printer.
12 V USB display port
This 12 V USB display port E (Figure 3) is used to provide power and communicate with the
display.
Cash drawer
The cash drawer (RJ-45) connector F (Figure 3) is used to communicate with the cash drawer.
L
A
C
D
E
F
G
H
I
J
K
B

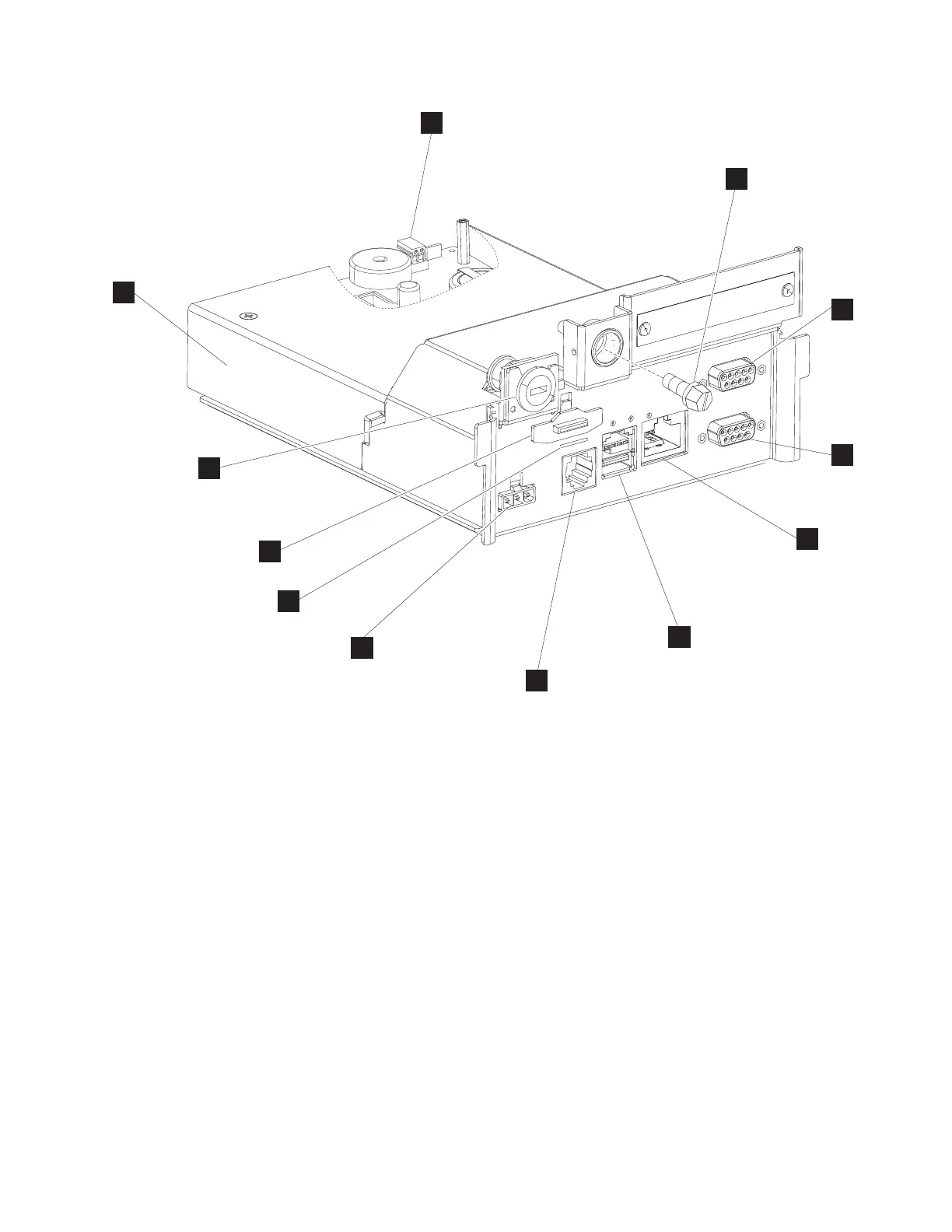

Figure 3. IBM Fiscal Logic Assembly with USB and RS-232 communications options
Chapter 1. Introduction 7
