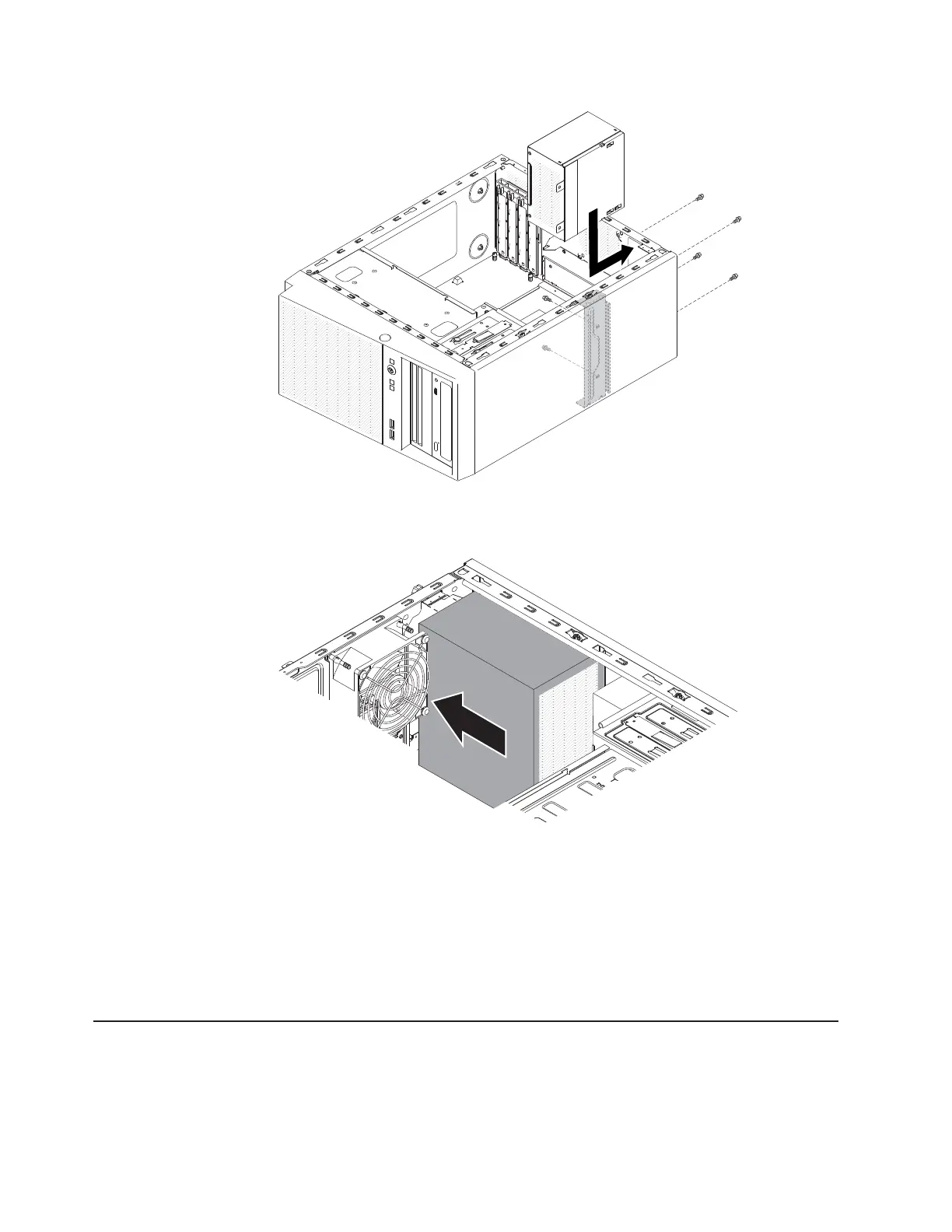

Note: Make sure the top and the bottom of the power supply align with the
upper and lower tabs on the opening.
4. Install the screws that secure the power supply to the chassis.
5. Install the air duct.
6. Install the side cover (see “Installing the side cover” on page 49).
7. Stand the server back up in its vertical position.
8. Install the bezel (see “Installing the bezel” on page 49).
9. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Completing the installation
To complete the installation, you must reinstall the two-piece bezel, reinstall the side
cover, connect all the cables and, for some devices, run the Setup utility. Follow the
instructions in this section.
48 System x3100 M4 Type 2582: Installation and User's Guide

IBM System x3100 M4 Specifications

General

Memory	Up to 32 GB DDR3 ECC UDIMM
Memory Slots	4 DIMM slots
Form Factor	Tower
Chipset	Intel C202
Processor Sockets	1
Processor	Intel Xeon E3-1200 v2 series, Intel Pentium series, Intel Celeron series
Storage	Up to 4x 3.5-inch
Power Supply	350W
Hard Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1, 10
Network Interface	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
