IBM System x3400 M3 Types 7378 User Manual

5. To ship the server, repackage it in the original undamaged packing material and
observe IBM procedures for shipping.
Support information for IBM Business Partners is available at http://www.ibm.com/
partnerworld/.

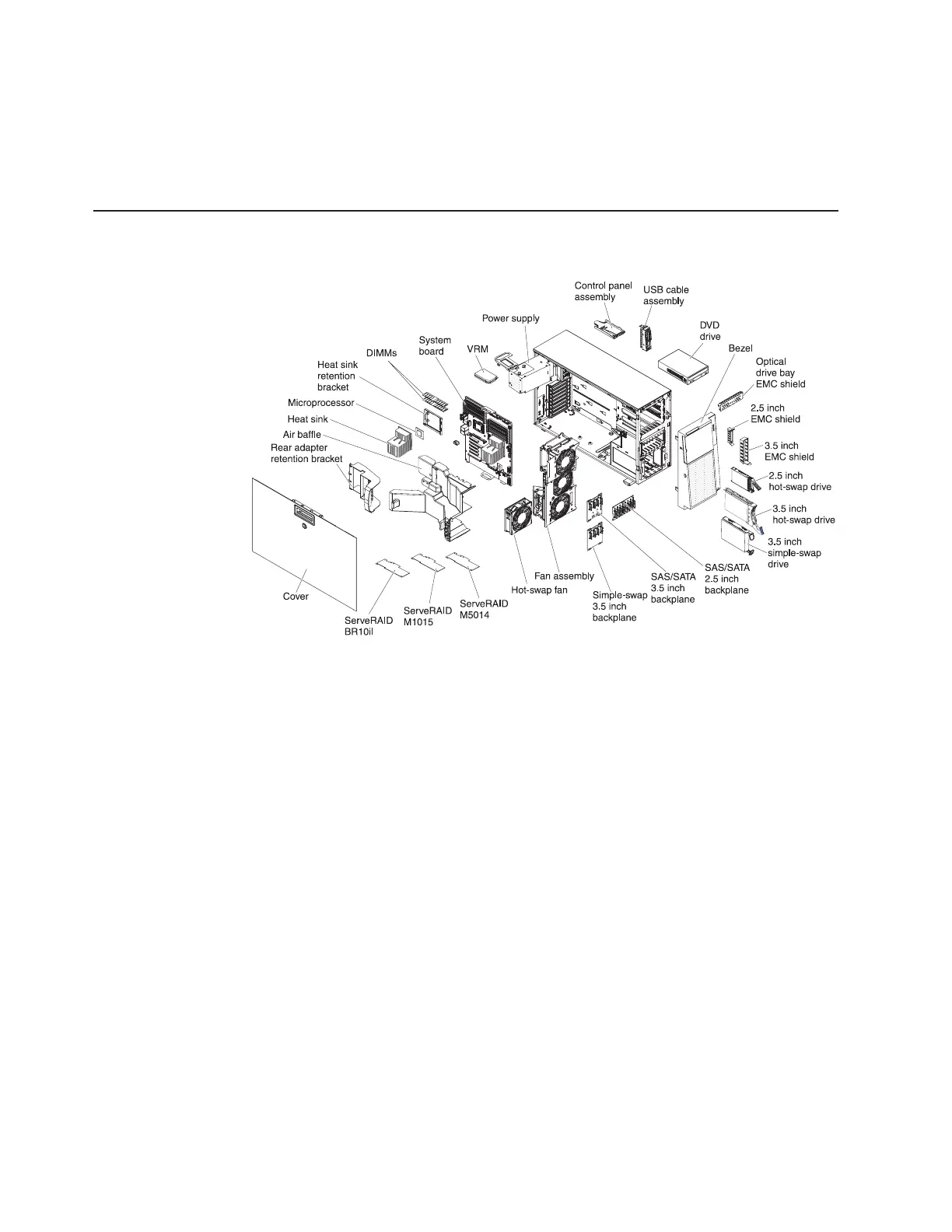

Server components
The following illustration shows the major components in the server.
Blue on a component indicates touch points, where you can grip the component to
remove it from or install it in the server, open or close a latch, and so on.
Orange on a component or an orange label on or near a component indicates that
the component can be hot-swapped, which means that if the server and operating
system support hot-swap capability, you can remove or install the component while
the server is running. (Orange can also indicate touch points on hot-swap
components.) See the instructions for removing or installing a specific hot-swap
component for any additional procedures that you might have to perform before you
remove or install the component.
22 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

IBM System x3400 M3 Types 7378 Specifications

General

Processor	Intel Xeon 5600 series
Memory Slots	12 DIMM slots
Hard Drive Bays	Up to 8 bays
Network Interface	Dual Gigabit Ethernet
Management	Integrated Management Module (IMM)
Form Factor	Tower
Processor Cores	4 or 6 cores
Chipset	Intel 5520
Storage	SAS/SATA
RAID Support	RAID 0, 1, 10
Power Supply	Redundant Power Supply Options Available
Expansion Slots	4 PCI-Express slots
USB Ports	6 USB 2.0
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
