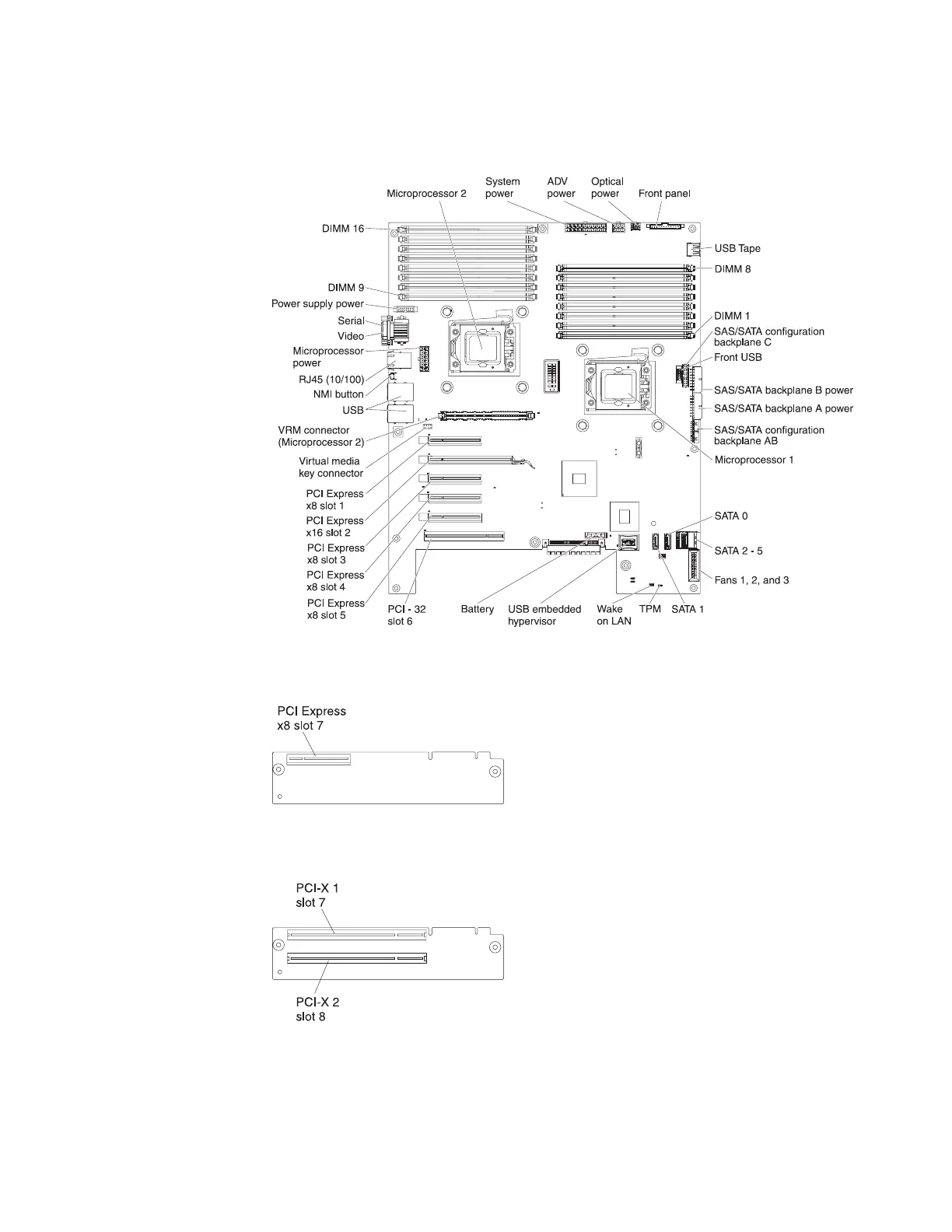

System-board internal connectors
The following illustrations show the internal connectors and switches on the system
board.
The following illustration shows the additional PCI Express expansion slot that is
available on the PCI Express extender card.
The following illustration shows two additional PCI-X expansion slots that are
available on the PCI-X extender card.
Chapter 2. Installing optional devices 23
