IBM System x3400 M3 Types 7378

SAS backplane connectors

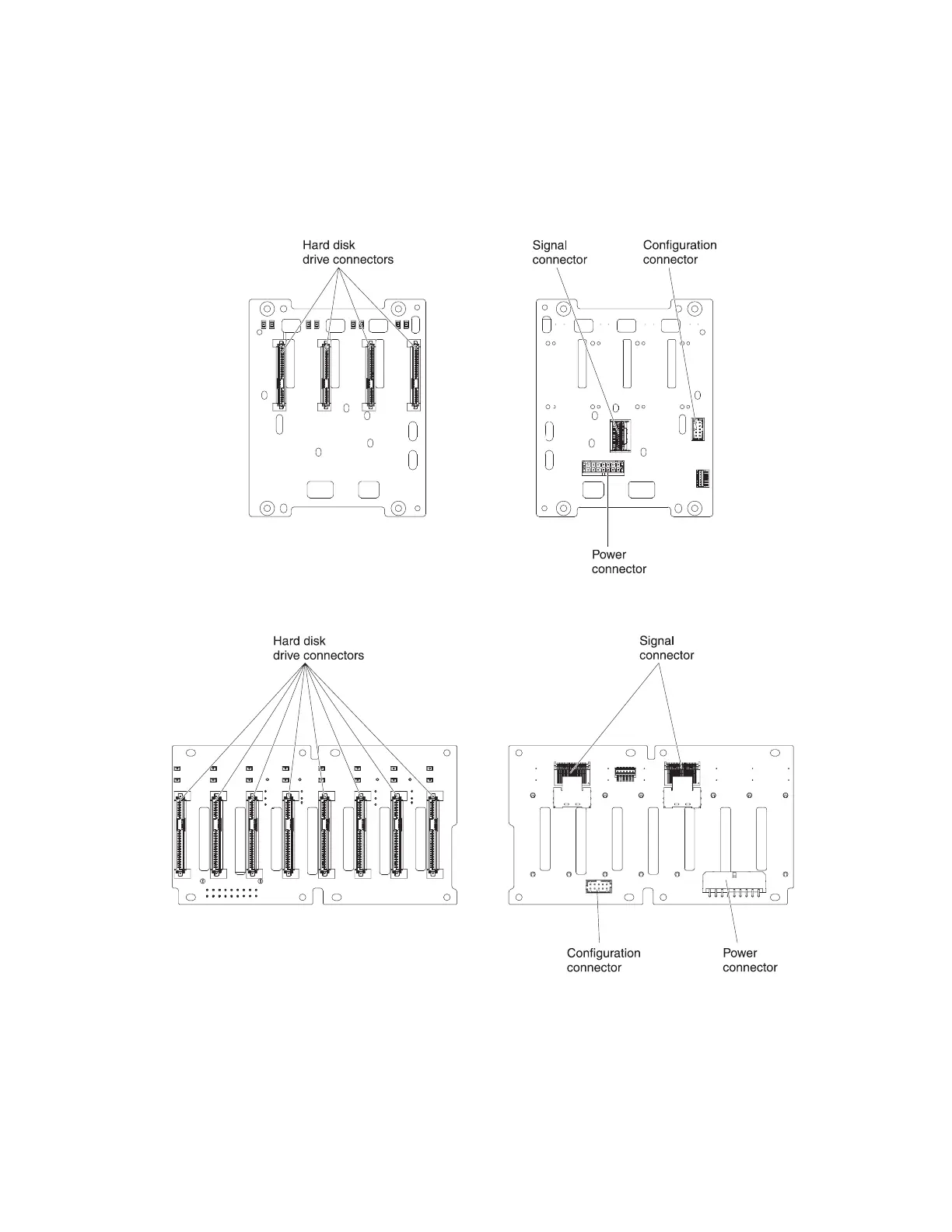

The following illustrations show the connectors on the SAS backplanes.
Figure 1. 3.5-inch backplane connectors
Figure 2. 2.5-inch backplane connectors
