IBM System x3400 M3 Types 7378 User Manual

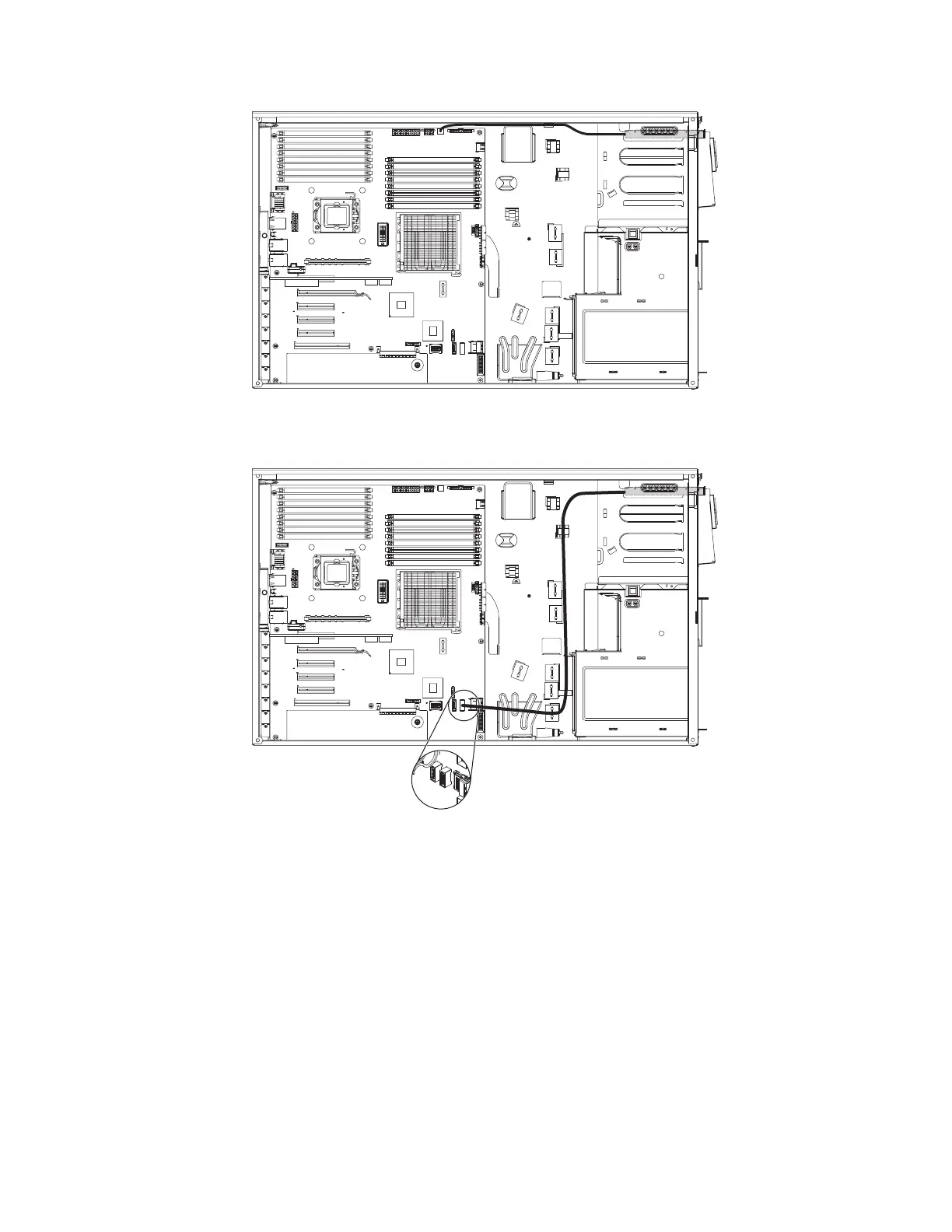

The following illustration shows the internal SATA cable routing and the connectors
from the UltraSlim DVD drive to the system board.
Operator information panel cable connection
The following illustration shows the internal cable routing and connectors from the
operator information panel to the system board.
Notes:
1. To remove the operator information panel cable, slightly press the cable toward
the chassis; then, pull to remove the cable from the connector on the system
board. Pulling the cable out of the connector by excessive force might cause
damage to the cable or connector.
2. To connect the operator information panel cable on the system board, press
evenly on the cable. Pressing on one side of the cable might cause damage to
the cable or connector.
3. Failing to install or remove the cable with care may damage the connectors on
the system board. Any damage to the connectors may require replacing the
system board.
36 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

IBM System x3400 M3 Types 7378 Specifications

General

Processor	Intel Xeon 5600 series
Memory Slots	12 DIMM slots
Hard Drive Bays	Up to 8 bays
Network Interface	Dual Gigabit Ethernet
Management	Integrated Management Module (IMM)
Form Factor	Tower
Processor Cores	4 or 6 cores
Chipset	Intel 5520
Storage	SAS/SATA
RAID Support	RAID 0, 1, 10
Power Supply	Redundant Power Supply Options Available
Expansion Slots	4 PCI-Express slots
USB Ports	6 USB 2.0
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
