System-board LEDs

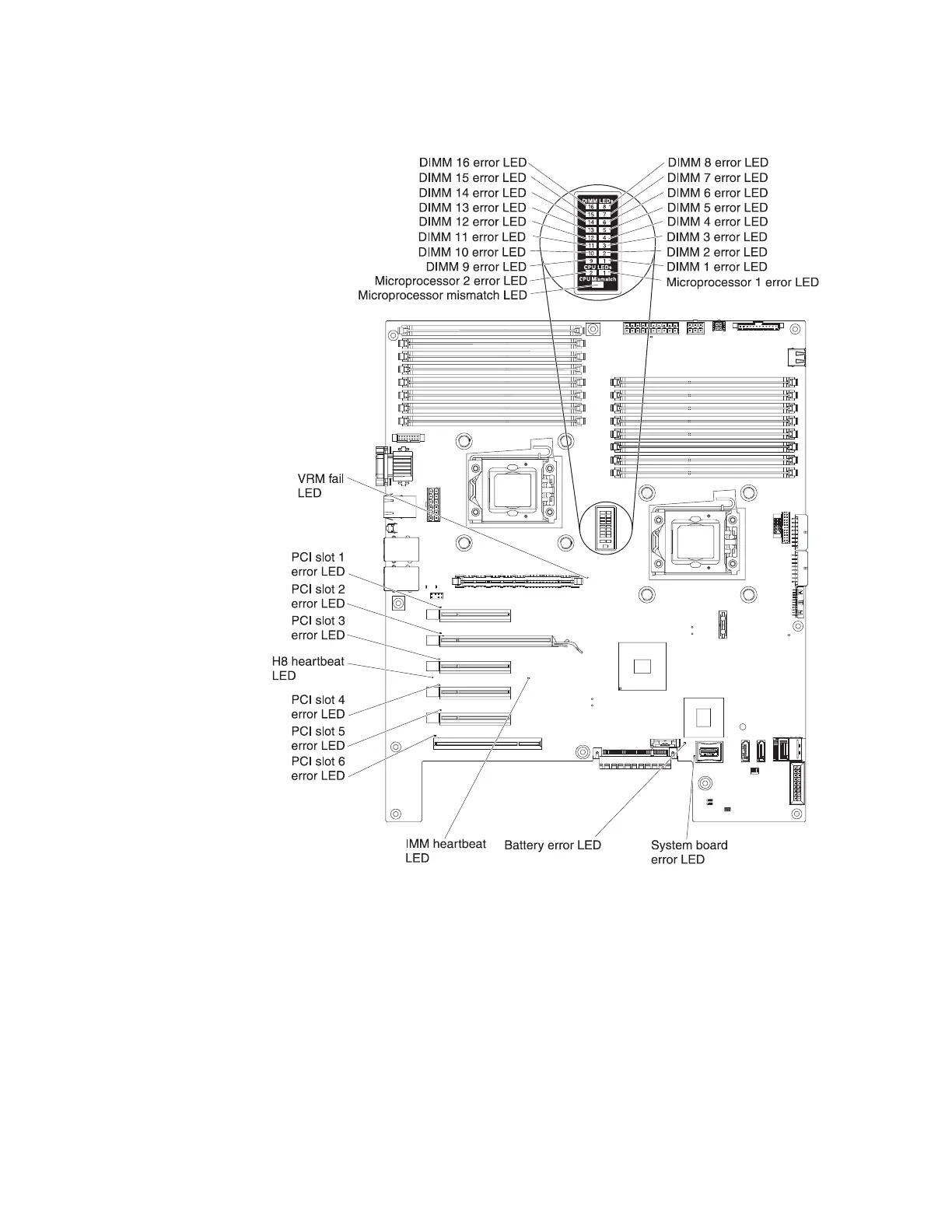

The following illustration shows the LEDs on the system board.
System-board external connectors
The following illustration shows the external input/output connectors and the NMI
button on the system board.
Chapter 2. Installing optional devices 25
