IBM System x3400 M3 Types 7378

3. For server models with eight 2.5-inch hot-swap hard disk drives.

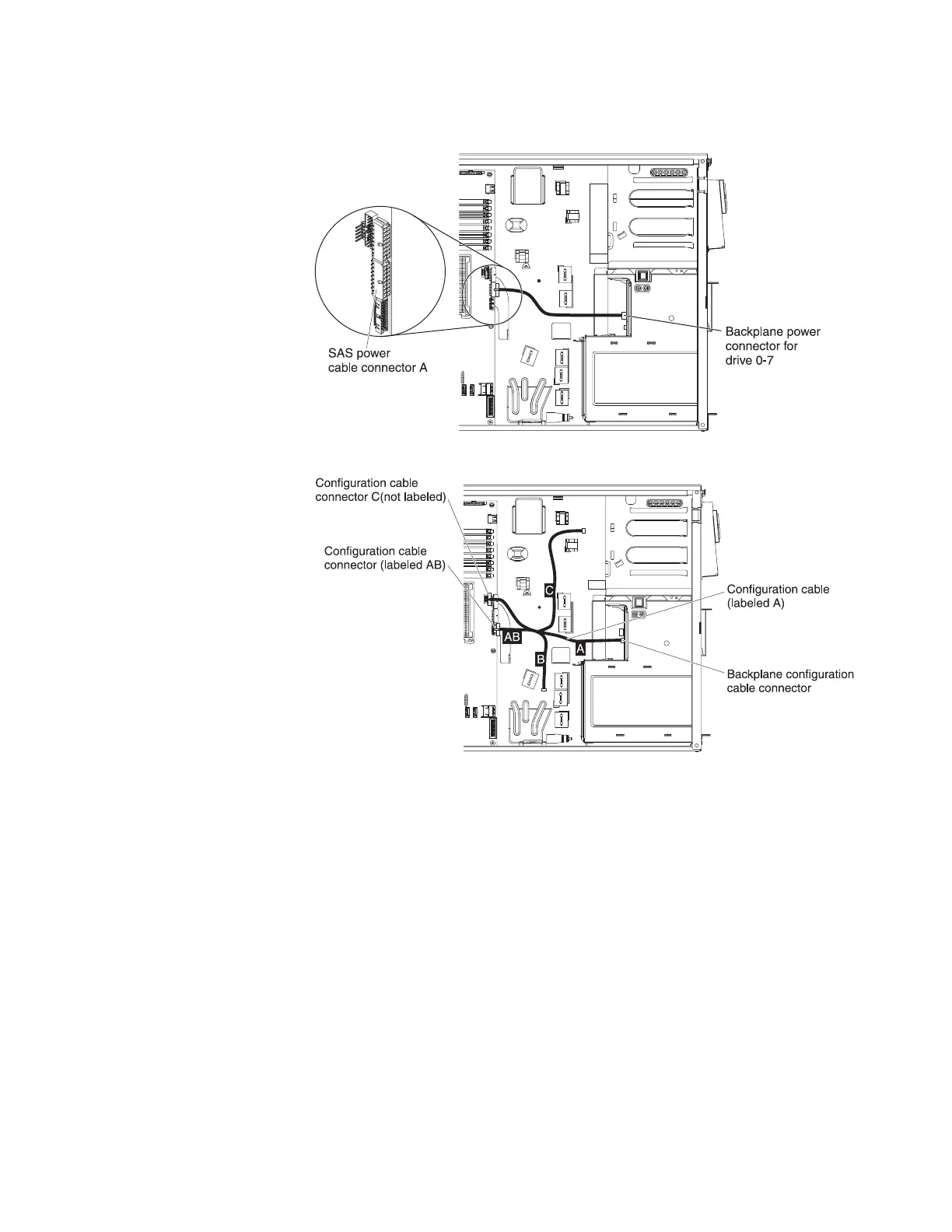

v The following illustration shows the internal power cable routing.
v The following illustration shows the internal configuration cable routing.
v The following illustration shows the internal signal cable routing for installing a
ServeRAID adapter.
Chapter 2. Installing optional devices 45
