IBM System x3400 M3 Types 7378 User Manual

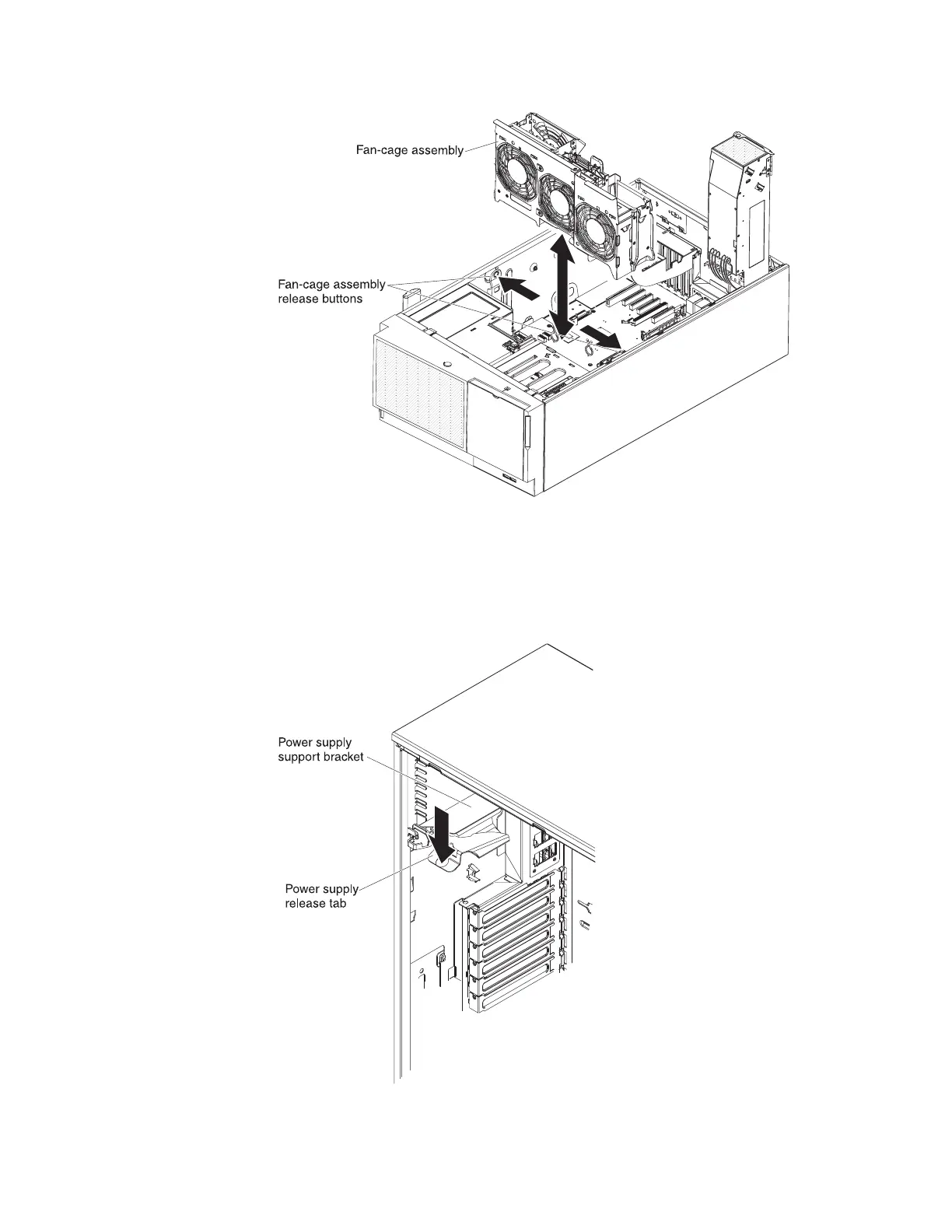

2. Slide the fan cage assembly into the chassis and press firmly until the fan cage
is seated firmly in place.
3. Install the air baffle (see “Installing the air baffle” on page 53).
4. Rotate the power-supply cage assembly back into the server. Press the
power-supply release tab and rotate the power-supply cage assembly into the
chassis.
54 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

IBM System x3400 M3 Types 7378 Specifications

General

Brand	IBM
Model	System x3400 M3 Types 7378
Category	Server
Language	English
