5. Remove the EMC shields from the drive bays.
6. Find the blue drive rails in the server bay and install one on each side of the
tape drive.
7. Slide the tape drive into the server.

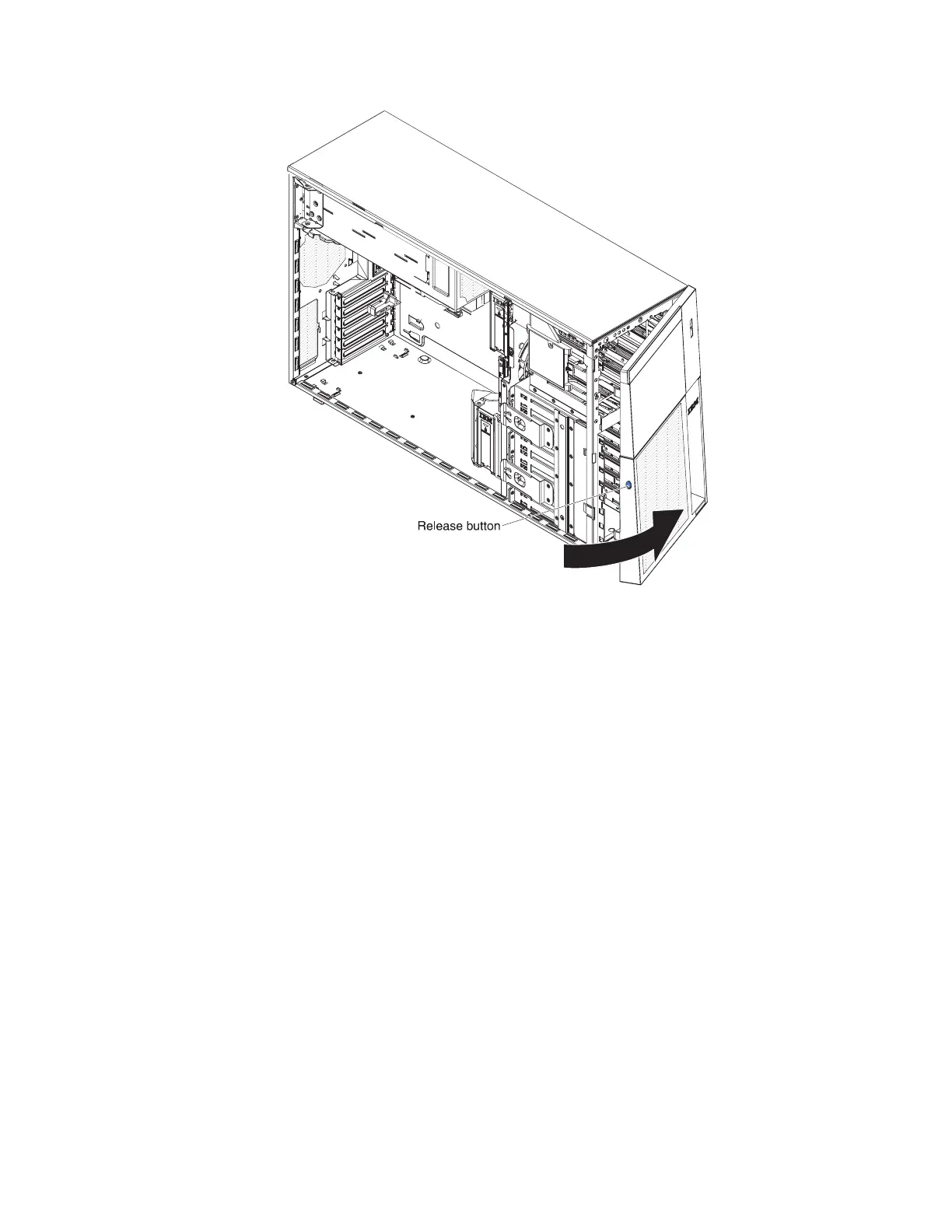

8. Close the bezel.
9. Remove the power supplies from the rear of the server.
10. Carefully lay the server down on its side.
11. Open the power-supply cage (see “Opening the power-supply cage” on page
55 for more information).
12. Remove the air baffle (see “Removing the air baffle” on page 52 for more
information).
13. Remove the fan cage assembly.
72 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide
