IBM System x3400 M3 Types 7378 User Manual

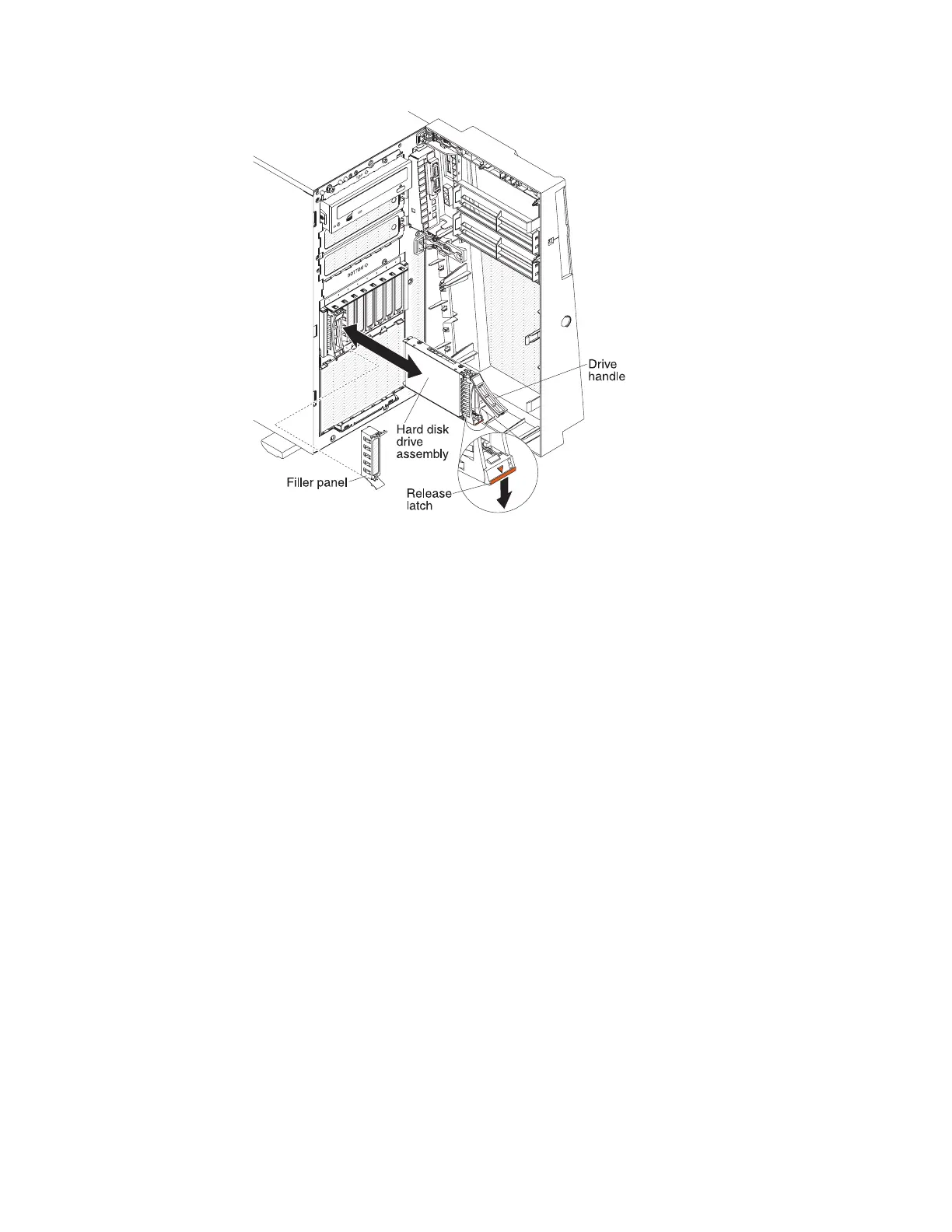

To install a hot-swap hard disk drive, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 29.
2. Remove the filler panel from one of the empty hot-swap bays.
3. Make sure that the drive handle is open; then, slide the hard disk drive into the
hot-swap bay.
4. Push the drive handle in until it latches.
Notes:
1. When you turn on the server, check the hard disk drive status LEDs to verify
that the hard disk drive is operating correctly.
If the amber hard disk drive status LED is lit continuously, that drive is faulty
and must be replaced. If the green hard disk drive activity LED is flashing, the
drive is being accessed.
2. If the server is configured for RAID operation through an optional ServeRAID
adapter, you might have to reconfigure your disk arrays after you install hard
disk drives. See the ServeRAID documentation on the IBM ServeRAID Support
CD for additional information about RAID operation and complete instructions
for using ServeRAID Manager.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 98.
76 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

IBM System x3400 M3 Types 7378 Specifications

General

Processor	Intel Xeon 5600 series
Memory Slots	12 DIMM slots
Hard Drive Bays	Up to 8 bays
Network Interface	Dual Gigabit Ethernet
Management	Integrated Management Module (IMM)
Form Factor	Tower
Processor Cores	4 or 6 cores
Chipset	Intel 5520
Storage	SAS/SATA
RAID Support	RAID 0, 1, 10
Power Supply	Redundant Power Supply Options Available
Expansion Slots	4 PCI-Express slots
USB Ports	6 USB 2.0
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
