7. Touch the static-protective package that contains the drive to any unpainted
metal surface on the server; then, remove the drive from the package and
place it on a static-protective surface.

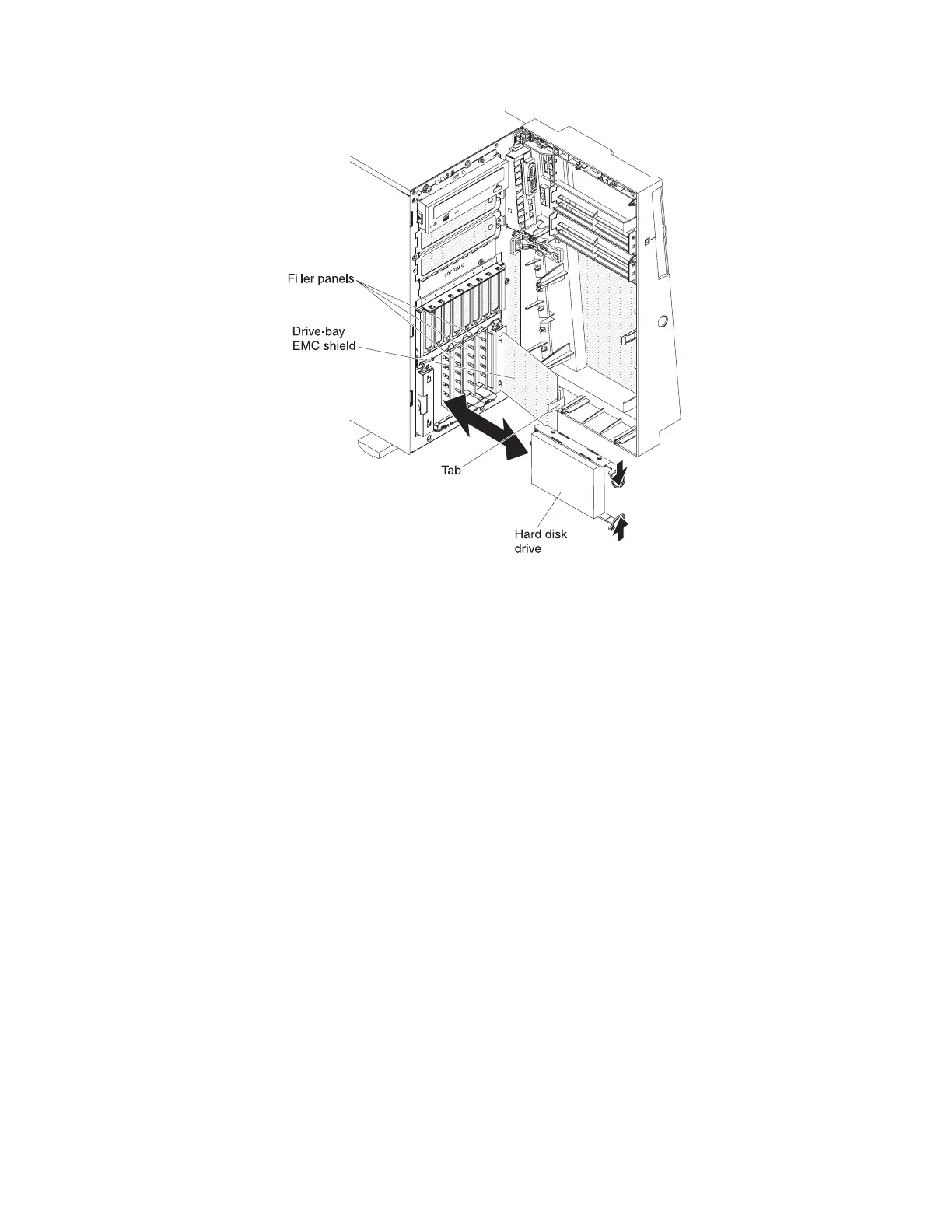

8. Align the drive assembly with the guide rails in the bay (the connector end of
the drive goes in first).
9. Press the drive assembly loops toward each other; then, carefully slide the
drive assembly into the drive bay until it stops and release the loops.
Note: Do not release the loops on the drive assembly until it is completely
seated.
10. See the Problem Determination and Service Guide for cabling information, if
needed.
11. Close the drive bay EMC shield.
12. Close the bezel.
If you have other options to install or remove, do so now.
The simple-swap-drive backplate controls the IDs for the internal simple-swap drive
bays. The following table lists the IDs for the hard disk drives and backplate that
are connected to simple-swap models.
78 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

IBM System x3400 M3 Types 7378 Specifications

General

Processor	Intel Xeon 5600 series
Memory Slots	12 DIMM slots
Hard Drive Bays	Up to 8 bays
Network Interface	Dual Gigabit Ethernet
Management	Integrated Management Module (IMM)
Form Factor	Tower
Processor Cores	4 or 6 cores
Chipset	Intel 5520
Storage	SAS/SATA
RAID Support	RAID 0, 1, 10
Power Supply	Redundant Power Supply Options Available
Expansion Slots	4 PCI-Express slots
USB Ports	6 USB 2.0
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
