2050 Hinge L and hinge R
For access, remove following FRUs, in order:
v “1010 Battery pack” on page 76
v “1020 Hard disk drive” on page 77
v “1030 DIMM cover” on page 78
v “1040 Mini PCI adapter, DIMM, MDC-2, and BMDC-2”
on page 79
v “1070 Backup battery” on page 88
v “1050 Keyboard” on page 82
v “1060 Upper case” on page 85
v “1080 LCD module” on page 89
v “2010 LCD bezel” on page 99
v “2020 LCD” on page 102
v “2030 Inverter card” on page 103
v “2040 Antenna L and antenna R” on page 105

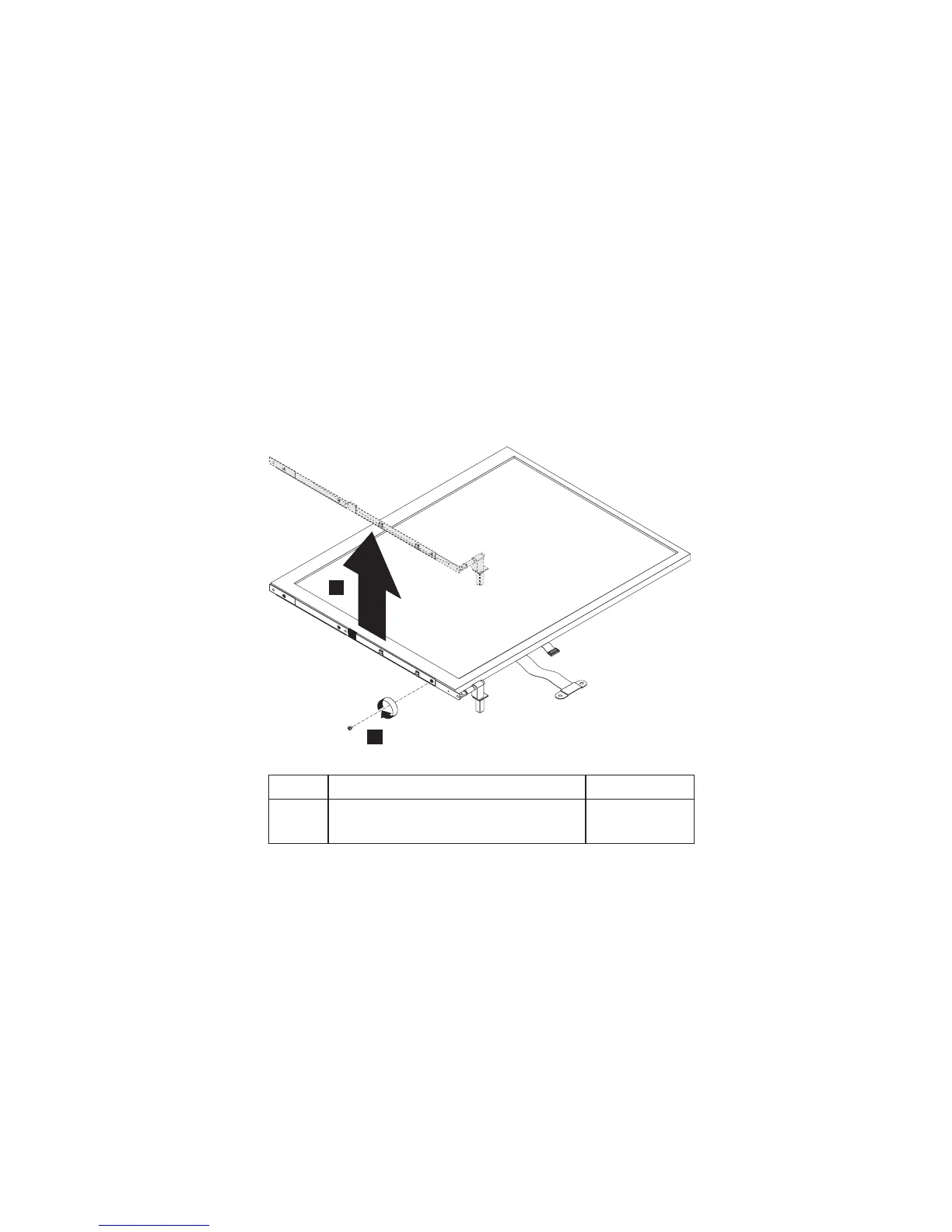

Remove hinge L.
2
1
Step Screw (quantity) Torque
1 M2 × 2.5 mm, nylon-coated (1) 0.1568 Nm
(1.6
kgfcm)
Removing and replacing a FRU
ThinkPad X40 109
