SimpleComfort
®

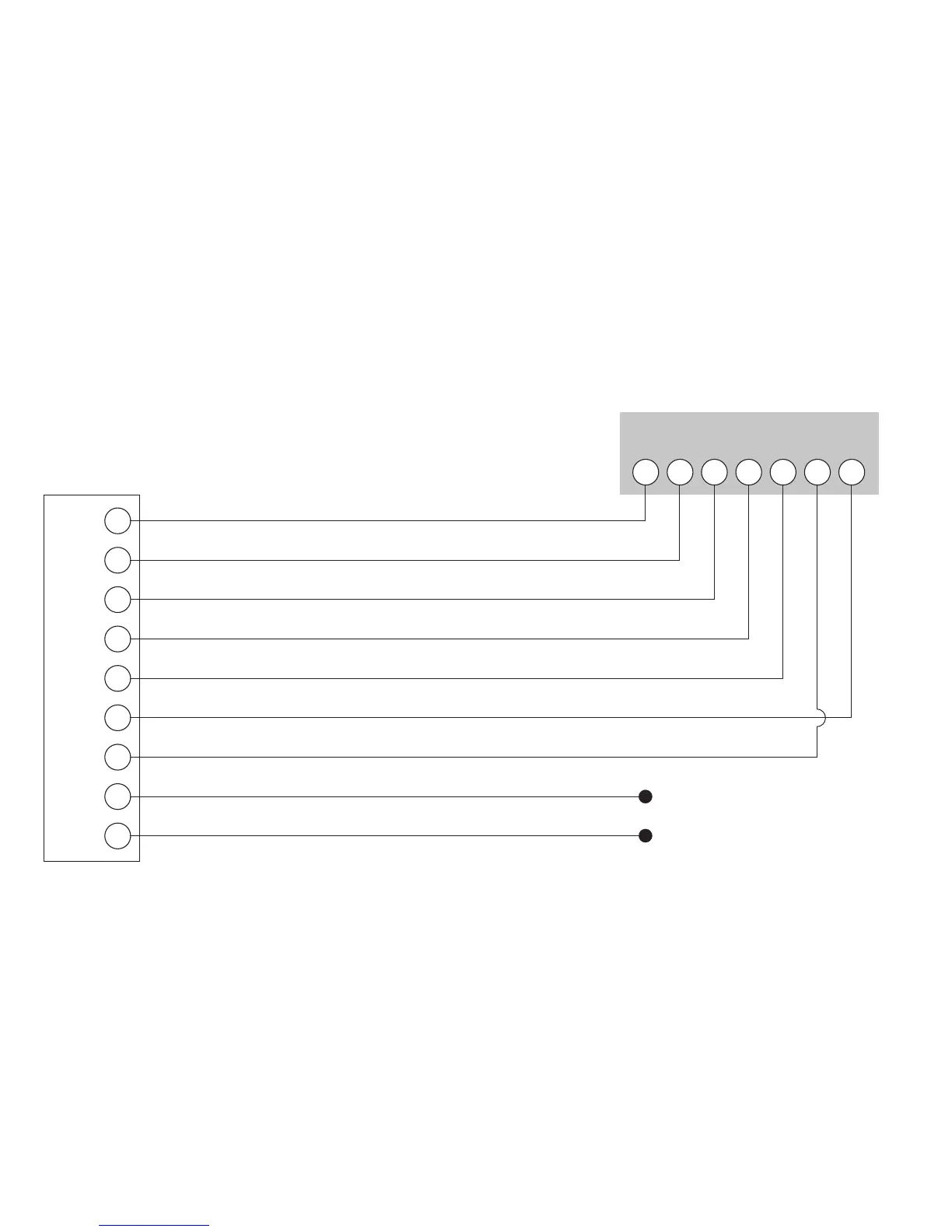

2311 Electronic Thermostat Conversion to:
Payne Reliant and Endura Model Heat Pump Systems
SC 2311
Electronic Thermostat
R C
W1
O/B
Y W2 E G
24 VAC, return
24 VAC, common
Reversing valve (cooling mode)
Compressor contactor
2nd stage heating circuit
Fan contactor circuit
Emergency heating circuit
System monitor LED
(capped)
Note 1: L terminal on PCB capped
Note 2: W3 terminal on PCB capped
R
C
O
Y
W2
G
E
L
W3
Payne Reliant and Endura
Low Voltage Terminal Board
3rd stage heating circuit
(capped)
