Icom IC-706MKIIG

63
11

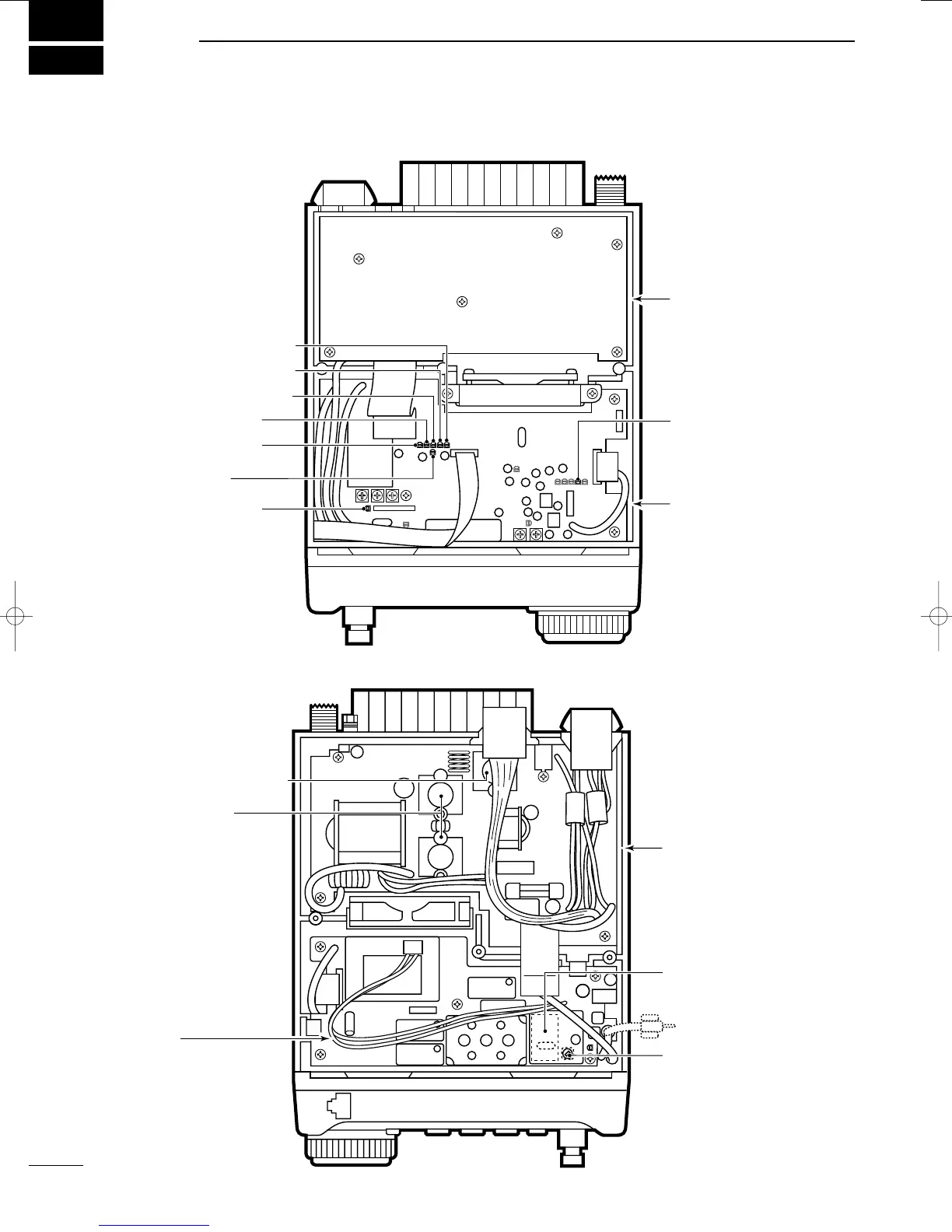

IINNTTEERRNNAALL VVIIEEWWSS
The internal speaker has
been removed in this
diagram for illustration
purposes.
FM deviation adj.
AM Tx carrier adj.
HF Tx power adj.
50 MHz Tx power adj.
NB sencitivity adj.
ID APC adj.
144 MHz Tx power adj.
430 MHz Tx power adj.
FILTER unit
MAIN unit
PLL unit
HF Final amplifier
(SRFJ7044 x 2)
PA unit
Reference freq. adj. (L601)
(when optional crystal
is installed)
Optional crystal (CR-282)
Reference freq. check point
(60.000 MHz)
144/430 MHz Final amplifier
(SRFJ7044)
D
TToopp vviieeww
D
BBoottttoomm vviieeww
CCaauuttiioonn::
The transceiver has been
thoroughly tested and
adjusted at the factory
before being shipped.
The transceiver warranty
does not cover any prob-
lems caused by unautho-
rized internal adjustment.
