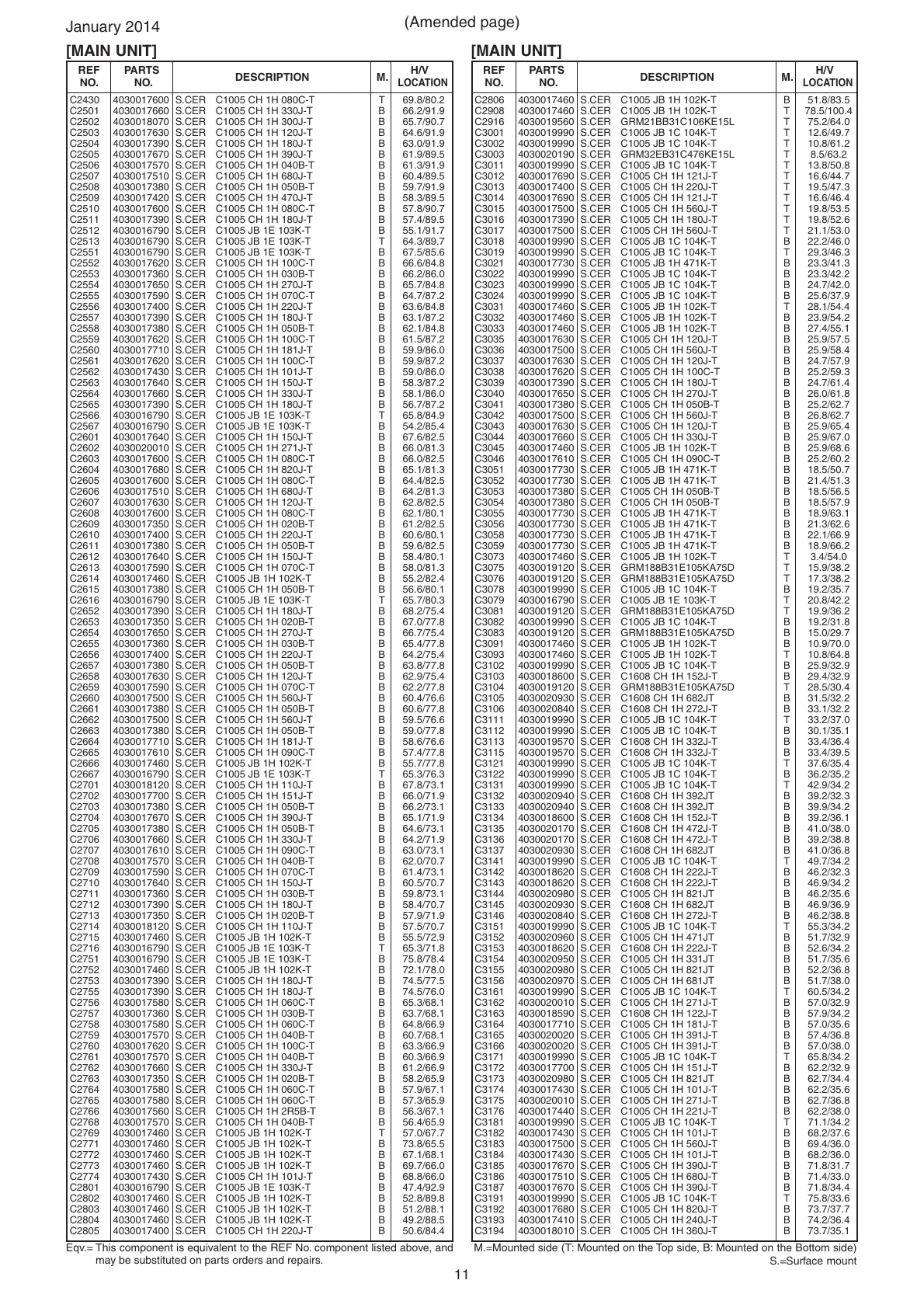

11
January 2014
(Amended page)
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
C2430 4030017600 S.CER C1005 CH 1H 080C-T T 69.8/80.2
C2501 4030017660 S.CER C1005 CH 1H 330J-T B 66.2/91.9
C2502 4030018070 S.CER C1005 CH 1H 300J-T B 65.7/90.7
C2503 4030017630 S.CER C1005 CH 1H 120J-T B 64.6/91.9
C2504 4030017390 S.CER C1005 CH 1H 180J-T B 63.0/91.9
C2505 4030017670 S.CER C1005 CH 1H 390J-T B 61.9/89.5
C2506 4030017570 S.CER C1005 CH 1H 040B-T B 61.3/91.9
C2507 4030017510 S.CER C1005 CH 1H 680J-T B 60.4/89.5
C2508 4030017380 S.CER C1005 CH 1H 050B-T B 59.7/91.9
C2509 4030017420 S.CER C1005 CH 1H 470J-T B 58.3/89.5
C2510 4030017600 S.CER C1005 CH 1H 080C-T B 57.8/90.7
C2511 4030017390 S.CER C1005 CH 1H 180J-T B 57.4/89.5
C2512 4030016790 S.CER C1005 JB 1E 103K-T B 55.1/91.7
C2513 4030016790 S.CER C1005 JB 1E 103K-T T 64.3/89.7
C2551 4030016790 S.CER C1005 JB 1E 103K-T B 67.5/85.6
C2552 4030017620 S.CER C1005 CH 1H 100C-T B 66.6/84.8
C2553 4030017360 S.CER C1005 CH 1H 030B-T B 66.2/86.0
C2554 4030017650 S.CER C1005 CH 1H 270J-T B 65.7/84.8
C2555 4030017590 S.CER C1005 CH 1H 070C-T B 64.7/87.2
C2556 4030017400 S.CER C1005 CH 1H 220J-T B 63.6/84.8
C2557 4030017390 S.CER C1005 CH 1H 180J-T B 63.1/87.2
C2558 4030017380 S.CER C1005 CH 1H 050B-T B 62.1/84.8
C2559 4030017620 S.CER C1005 CH 1H 100C-T B 61.5/87.2
C2560 4030017710 S.CER C1005 CH 1H 181J-T B 59.9/86.0
C2561 4030017620 S.CER C1005 CH 1H 100C-T B 59.9/87.2
C2562 4030017430 S.CER C1005 CH 1H 101J-T B 59.0/86.0
C2563 4030017640 S.CER C1005 CH 1H 150J-T B 58.3/87.2
C2564 4030017660 S.CER C1005 CH 1H 330J-T B 58.1/86.0
C2565 4030017390 S.CER C1005 CH 1H 180J-T B 56.7/87.2
C2566 4030016790 S.CER C1005 JB 1E 103K-T T 65.8/84.9
C2567 4030016790 S.CER C1005 JB 1E 103K-T B 54.2/85.4
C2601 4030017640 S.CER C1005 CH 1H 150J-T B 67.6/82.5
C2602 4030020010 S.CER C1005 CH 1H 271J-T B 66.0/81.3
C2603 4030017600 S.CER C1005 CH 1H 080C-T B 66.0/82.5
C2604 4030017680 S.CER C1005 CH 1H 820J-T B 65.1/81.3
C2605 4030017600 S.CER C1005 CH 1H 080C-T B 64.4/82.5
C2606 4030017510 S.CER C1005 CH 1H 680J-T B 64.2/81.3
C2607 4030017630 S.CER C1005 CH 1H 120J-T B 62.8/82.5
C2608 4030017600 S.CER C1005 CH 1H 080C-T B 62.1/80.1
C2609 4030017350 S.CER C1005 CH 1H 020B-T B 61.2/82.5
C2610 4030017400 S.CER C1005 CH 1H 220J-T B 60.6/80.1
C2611 4030017380 S.CER C1005 CH 1H 050B-T B 59.6/82.5
C2612 4030017640 S.CER C1005 CH 1H 150J-T B 58.4/80.1
C2613 4030017590 S.CER C1005 CH 1H 070C-T B 58.0/81.3
C2614 4030017460 S.CER C1005 JB 1H 102K-T B 55.2/82.4
C2615 4030017380 S.CER C1005 CH 1H 050B-T B 56.6/80.1
C2616 4030016790 S.CER C1005 JB 1E 103K-T T 65.7/80.3
C2652 4030017390 S.CER C1005 CH 1H 180J-T B 68.2/75.4
C2653 4030017350 S.CER C1005 CH 1H 020B-T B 67.0/77.8
C2654 4030017650 S.CER C1005 CH 1H 270J-T B 66.7/75.4
C2655 4030017360 S.CER C1005 CH 1H 030B-T B 65.4/77.8
C2656 4030017400 S.CER C1005 CH 1H 220J-T B 64.2/75.4
C2657 4030017380 S.CER C1005 CH 1H 050B-T B 63.8/77.8
C2658 4030017630 S.CER C1005 CH 1H 120J-T B 62.9/75.4
C2659 4030017590 S.CER C1005 CH 1H 070C-T B 62.2/77.8
C2660 4030017500 S.CER C1005 CH 1H 560J-T B 60.4/76.6
C2661 4030017380 S.CER C1005 CH 1H 050B-T B 60.6/77.8
C2662 4030017500 S.CER C1005 CH 1H 560J-T B 59.5/76.6
C2663 4030017380 S.CER C1005 CH 1H 050B-T B 59.0/77.8
C2664 4030017710 S.CER C1005 CH 1H 181J-T B 58.6/76.6
C2665 4030017610 S.CER C1005 CH 1H 090C-T B 57.4/77.8
C2666 4030017460 S.CER C1005 JB 1H 102K-T B 55.7/77.8
C2667 4030016790 S.CER C1005 JB 1E 103K-T T 65.3/76.3
C2701 4030018120 S.CER C1005 CH 1H 110J-T B 67.8/73.1
C2702 4030017700 S.CER C1005 CH 1H 151J-T B 66.0/71.9
C2703 4030017380 S.CER C1005 CH 1H 050B-T B 66.2/73.1
C2704 4030017670 S.CER C1005 CH 1H 390J-T B 65.1/71.9
C2705 4030017380 S.CER C1005 CH 1H 050B-T B 64.6/73.1
C2706 4030017660 S.CER C1005 CH 1H 330J-T B 64.2/71.9
C2707 4030017610 S.CER C1005 CH 1H 090C-T B 63.0/73.1
C2708 4030017570 S.CER C1005 CH 1H 040B-T B 62.0/70.7
C2709 4030017590 S.CER C1005 CH 1H 070C-T B 61.4/73.1
C2710 4030017640 S.CER C1005 CH 1H 150J-T B 60.5/70.7
C2711 4030017360 S.CER C1005 CH 1H 030B-T B 59.8/73.1
C2712 4030017390 S.CER C1005 CH 1H 180J-T B 58.4/70.7
C2713 4030017350 S.CER C1005 CH 1H 020B-T B 57.9/71.9
C2714 4030018120 S.CER C1005 CH 1H 110J-T B 57.5/70.7
C2715 4030017460 S.CER C1005 JB 1H 102K-T B 55.5/72.9
C2716 4030016790 S.CER C1005 JB 1E 103K-T T 65.3/71.8
C2751 4030016790 S.CER C1005 JB 1E 103K-T B 75.8/78.4
C2752 4030017460 S.CER C1005 JB 1H 102K-T B 72.1/78.0
C2753 4030017390 S.CER C1005 CH 1H 180J-T B 74.5/77.5
C2755 4030017390 S.CER C1005 CH 1H 180J-T B 74.5/76.0
C2756 4030017580 S.CER C1005 CH 1H 060C-T B 65.3/68.1
C2757 4030017360 S.CER C1005 CH 1H 030B-T B 63.7/68.1
C2758 4030017580 S.CER C1005 CH 1H 060C-T B 64.8/66.9
C2759 4030017570 S.CER C1005 CH 1H 040B-T B 60.7/68.1
C2760 4030017620 S.CER C1005 CH 1H 100C-T B 63.3/66.9
C2761 4030017570 S.CER C1005 CH 1H 040B-T B 60.3/66.9
C2762 4030017660 S.CER C1005 CH 1H 330J-T B 61.2/66.9
C2763 4030017350 S.CER C1005 CH 1H 020B-T B 58.2/65.9
C2764 4030017580 S.CER C1005 CH 1H 060C-T B 57.9/67.1
C2765 4030017580 S.CER C1005 CH 1H 060C-T B 57.3/65.9
C2766 4030017560 S.CER C1005 CH 1H 2R5B-T B 56.3/67.1
C2768 4030017570 S.CER C1005 CH 1H 040B-T B 56.4/65.9
C2769 4030017460 S.CER C1005 JB 1H 102K-T T 57.0/67.7
C2771 4030017460 S.CER C1005 JB 1H 102K-T B 73.8/65.5
C2772 4030017460 S.CER C1005 JB 1H 102K-T B 67.1/68.1
C2773 4030017460 S.CER C1005 JB 1H 102K-T B 69.7/66.0
C2774 4030017430 S.CER C1005 CH 1H 101J-T B 68.8/66.0
C2801 4030016790 S.CER C1005 JB 1E 103K-T B 47.4/92.9
C2802 4030017460 S.CER C1005 JB 1H 102K-T B 52.8/89.8
C2803 4030017460 S.CER C1005 JB 1H 102K-T B 51.2/88.1
C2804 4030017460 S.CER C1005 JB 1H 102K-T B 49.2/88.5
C2805 4030017400 S.CER C1005 CH 1H 220J-T B 50.6/84.4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
C2806 4030017460 S.CER C1005 JB 1H 102K-T B 51.8/83.5
C2908 4030017460 S.CER C1005 JB 1H 102K-T T 78.5/100.4
C2916 4030019560 S.CER GRM21BB31C106KE15L T 75.2/64.0
C3001 4030019990 S.CER C1005 JB 1C 104K-T T 12.6/49.7
C3002 4030019990 S.CER C1005 JB 1C 104K-T T 10.8/61.2
C3003 4030020190 S.CER GRM32EB31C476KE15L T 8.5/63.2
C3011 4030019990 S.CER C1005 JB 1C 104K-T T 13.8/50.8
C3012 4030017690 S.CER C1005 CH 1H 121J-T T 16.6/44.7
C3013 4030017400 S.CER C1005 CH 1H 220J-T T 19.5/47.3
C3014 4030017690 S.CER C1005 CH 1H 121J-T T 16.6/46.4
C3015 4030017500 S.CER C1005 CH 1H 560J-T T 19.8/53.5
C3016 4030017390 S.CER C1005 CH 1H 180J-T T 19.8/52.6
C3017 4030017500 S.CER C1005 CH 1H 560J-T T 21.1/53.0
C3018 4030019990 S.CER C1005 JB 1C 104K-T B 22.2/46.0
C3019 4030019990 S.CER C1005 JB 1C 104K-T T 29.3/46.3
C3021 4030017730 S.CER C1005 JB 1H 471K-T B 23.3/41.3
C3022 4030019990 S.CER C1005 JB 1C 104K-T B 23.3/42.2
C3023 4030019990 S.CER C1005 JB 1C 104K-T B 24.7/42.0
C3024 4030019990 S.CER C1005 JB 1C 104K-T B 25.6/37.9
C3031 4030017460 S.CER C1005 JB 1H 102K-T T 28.1/54.4
C3032 4030017460 S.CER C1005 JB 1H 102K-T B 23.9/54.2
C3033 4030017460 S.CER C1005 JB 1H 102K-T B 27.4/55.1
C3035 4030017630 S.CER C1005 CH 1H 120J-T B 25.9/57.5
C3036 4030017500 S.CER C1005 CH 1H 560J-T B 25.9/58.4
C3037 4030017630 S.CER C1005 CH 1H 120J-T B 24.7/57.9
C3038 4030017620 S.CER C1005 CH 1H 100C-T B 25.2/59.3
C3039 4030017390 S.CER C1005 CH 1H 180J-T B 24.7/61.4
C3040 4030017650 S.CER C1005 CH 1H 270J-T B 26.0/61.8
C3041 4030017380 S.CER C1005 CH 1H 050B-T B 25.2/62.7
C3042 4030017500 S.CER C1005 CH 1H 560J-T B 26.8/62.7
C3043 4030017630 S.CER C1005 CH 1H 120J-T B 25.9/65.4
C3044 4030017660 S.CER C1005 CH 1H 330J-T B 25.9/67.0
C3045 4030017460 S.CER C1005 JB 1H 102K-T B 25.9/68.6
C3046 4030017610 S.CER C1005 CH 1H 090C-T B 25.2/60.2
C3051 4030017730 S.CER C1005 JB 1H 471K-T B 18.5/50.7
C3052 4030017730 S.CER C1005 JB 1H 471K-T B 21.4/51.3
C3053 4030017380 S.CER C1005 CH 1H 050B-T B 18.5/56.5
C3054 4030017380 S.CER C1005 CH 1H 050B-T B 18.5/57.9
C3055 4030017730 S.CER C1005 JB 1H 471K-T B 18.9/63.1
C3056 4030017730 S.CER C1005 JB 1H 471K-T B 21.3/62.6
C3058 4030017730 S.CER C1005 JB 1H 471K-T B 22.1/66.9
C3059 4030017730 S.CER C1005 JB 1H 471K-T B 18.9/66.2
C3073 4030017460 S.CER C1005 JB 1H 102K-T T 3.4/54.0
C3075 4030019120 S.CER GRM188B31E105KA75D T 15.9/38.2
C3076 4030019120 S.CER GRM188B31E105KA75D T 17.3/38.2
C3078 4030019990 S.CER C1005 JB 1C 104K-T B 19.2/35.7
C3079 4030016790 S.CER C1005 JB 1E 103K-T T 20.8/42.2
C3081 4030019120 S.CER GRM188B31E105KA75D T 19.9/36.2
C3082 4030019990 S.CER C1005 JB 1C 104K-T B 19.2/31.8
C3083 4030019120 S.CER GRM188B31E105KA75D B 15.0/29.7
C3091 4030017460 S.CER C1005 JB 1H 102K-T B 10.9/70.0
C3093 4030017460 S.CER C1005 JB 1H 102K-T T 10.8/64.8
C3102 4030019990 S.CER C1005 JB 1C 104K-T B 25.9/32.9
C3103 4030018600 S.CER C1608 CH 1H 152J-T B 29.4/32.9
C3104 4030019120 S.CER GRM188B31E105KA75D T 28.5/30.4
C3105 4030020930 S.CER C1608 CH 1H 682JT B 31.5/32.2
C3106 4030020840 S.CER C1608 CH 1H 272J-T B 33.1/32.2
C3111 4030019990 S.CER C1005 JB 1C 104K-T T 33.2/37.0
C3112 4030019990 S.CER C1005 JB 1C 104K-T B 30.1/35.1
C3113 4030019570 S.CER C1608 CH 1H 332J-T B 33.4/36.4
C3115 4030019570 S.CER C1608 CH 1H 332J-T B 33.4/39.5
C3121 4030019990 S.CER C1005 JB 1C 104K-T T 37.6/35.4
C3122 4030019990 S.CER C1005 JB 1C 104K-T B 36.2/35.2
C3131 4030019990 S.CER C1005 JB 1C 104K-T T 42.9/34.2
C3132 4030020940 S.CER C1608 CH 1H 392JT B 39.2/32.3
C3133 4030020940 S.CER C1608 CH 1H 392JT B 39.9/34.2
C3134 4030018600 S.CER C1608 CH 1H 152J-T B 39.2/36.1
C3135 4030020170 S.CER C1608 CH 1H 472J-T B 41.0/38.0
C3136 4030020170 S.CER C1608 CH 1H 472J-T B 39.2/38.8
C3137 4030020930 S.CER C1608 CH 1H 682JT B 41.0/36.8
C3141 4030019990 S.CER C1005 JB 1C 104K-T T 49.7/34.2
C3142 4030018620 S.CER C1608 CH 1H 222J-T B 46.2/32.3
C3143 4030018620 S.CER C1608 CH 1H 222J-T B 46.9/34.2
C3144 4030020980 S.CER C1005 CH 1H 821JT B 46.2/35.6
C3145 4030020930 S.CER C1608 CH 1H 682JT B 46.9/36.9
C3146 4030020840 S.CER C1608 CH 1H 272J-T B 46.2/38.8
C3151 4030019990 S.CER C1005 JB 1C 104K-T T 55.3/34.2
C3152 4030020960 S.CER C1005 CH 1H 471JT B 51.7/32.9
C3153 4030018620 S.CER C1608 CH 1H 222J-T B 52.6/34.2
C3154 4030020950 S.CER C1005 CH 1H 331JT B 51.7/35.6
C3155 4030020980 S.CER C1005 CH 1H 821JT B 52.2/36.8
C3156 4030020970 S.CER C1005 CH 1H 681JT B 51.7/38.0
C3161 4030019990 S.CER C1005 JB 1C 104K-T T 60.5/34.2
C3162 4030020010 S.CER C1005 CH 1H 271J-T B 57.0/32.9
C3163 4030018590 S.CER C1608 CH 1H 122J-T B 57.9/34.2
C3164 4030017710 S.CER C1005 CH 1H 181J-T B 57.0/35.6
C3165 4030020020 S.CER C1005 CH 1H 391J-T B 57.4/36.8
C3166 4030020020 S.CER C1005 CH 1H 391J-T B 57.0/38.0
C3171 4030019990 S.CER C1005 JB 1C 104K-T T 65.8/34.2
C3172 4030017700 S.CER C1005 CH 1H 151J-T B 62.2/32.9
C3173 4030020980 S.CER C1005 CH 1H 821JT B 62.7/34.4
C3174 4030017430 S.CER C1005 CH 1H 101J-T B 62.2/35.6
C3175 4030020010 S.CER C1005 CH 1H 271J-T B 62.7/36.8
C3176 4030017440 S.CER C1005 CH 1H 221J-T B 62.2/38.0
C3181 4030019990 S.CER C1005 JB 1C 104K-T T 71.1/34.2
C3182 4030017430 S.CER C1005 CH 1H 101J-T B 68.2/37.6
C3183 4030017500 S.CER C1005 CH 1H 560J-T B 69.4/36.0
C3184 4030017430 S.CER C1005 CH 1H 101J-T B 68.2/36.0
C3185 4030017670 S.CER C1005 CH 1H 390J-T B 71.8/31.7
C3186 4030017510 S.CER C1005 CH 1H 680J-T B 71.4/33.0
C3187 4030017670 S.CER C1005 CH 1H 390J-T B 71.8/34.4
C3191 4030019990 S.CER C1005 JB 1C 104K-T T 75.8/33.6
C3192 4030017680 S.CER C1005 CH 1H 820J-T B 73.7/37.7
C3193 4030017410 S.CER C1005 CH 1H 240J-T B 74.2/36.4
C3194 4030018010 S.CER C1005 CH 1H 360J-T B 73.7/35.1
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.
To Next Page
Loading...
