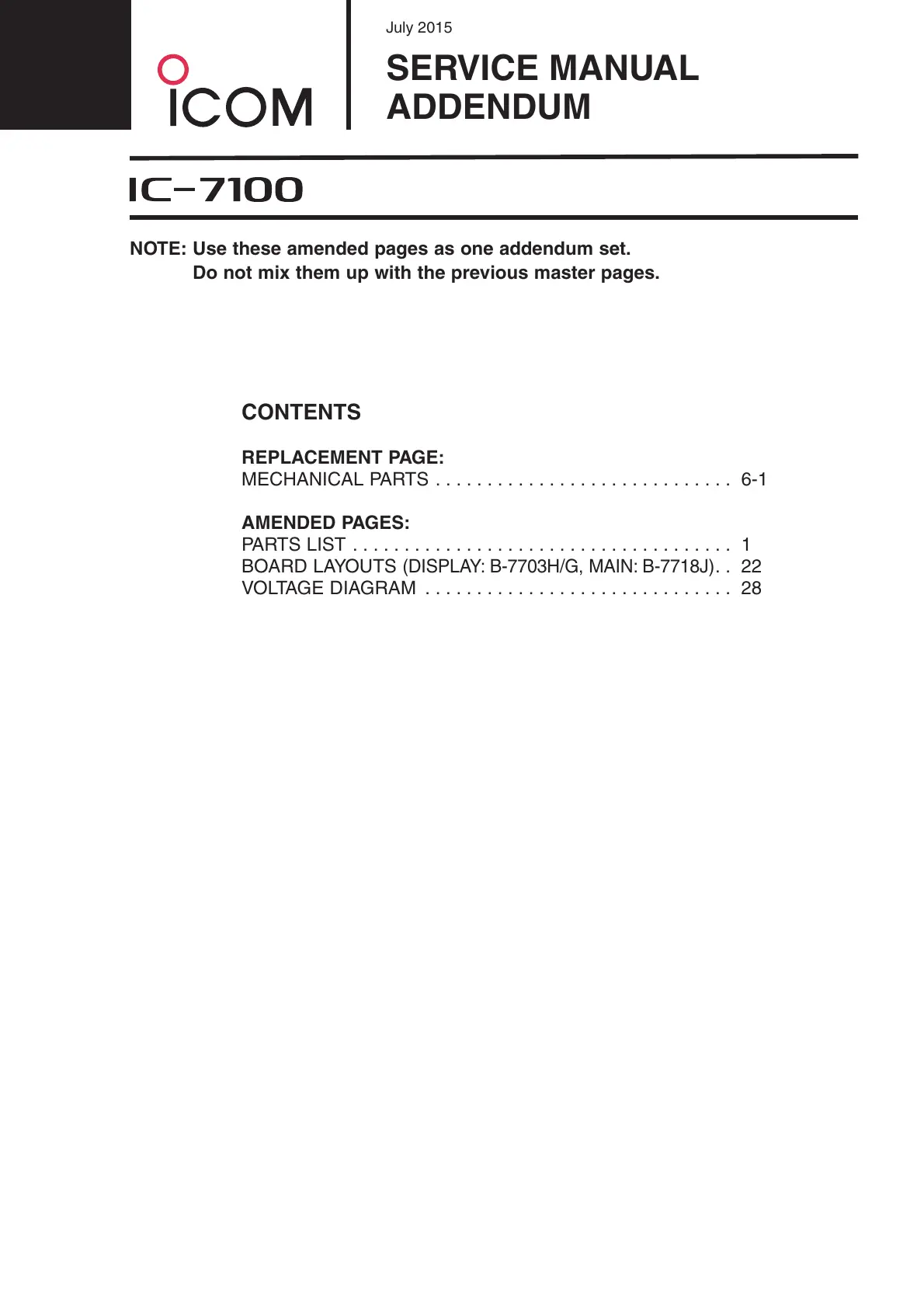

SERVICE MANUAL
ADDENDUM
NOTE: Use these amended pages as one addendum set.
Do not mix them up with the previous master pages.
CONTENTS
REPLACEMENT PAGE:
MECHANICAL PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
AMENDED PAGES:
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BOARD LAYOUTS
(DISPLAY: B-7703H/G, MAIN: B-7718J)
. . 22
VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
July 2015
