Icom IC-7100

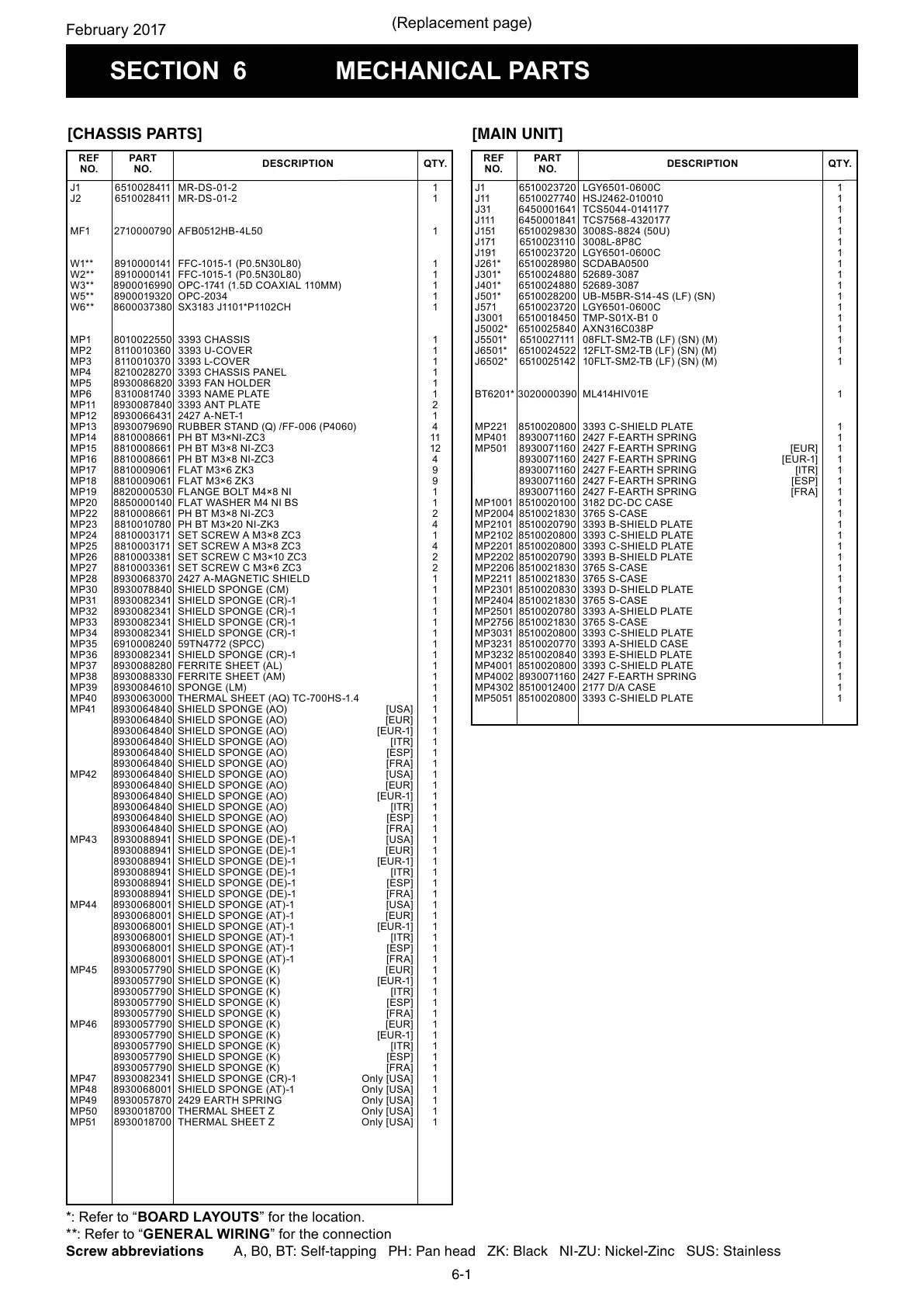

SECTION 6 MECHANICAL PARTS
6-1
[CHASSIS PARTS]
REF PART
DESCRIPTION QTY.
NO. NO.
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
(Replacement page)
February 2017
J1 6510028411 MR-DS-01-2 1
J2 6510028411 MR-DS-01-2 1
MF1 2710000790 AFB0512HB-4L50 1
W1** 8910000141 FFC-1015-1 (P0.5N30L80) 1
W2** 8910000141 FFC-1015-1 (P0.5N30L80) 1
W3** 8900016990 OPC-1741 (1.5D COAXIAL 110MM) 1
W5** 8900019320 OPC-2034 1
W6** 8600037380 SX3183 J1101*P1102CH 1
MP1 8010022550 3393 CHASSIS 1
MP2 8110010360 3393 U-COVER 1
MP3 8110010370 3393 L-COVER 1
MP4 8210028270 3393 CHASSIS PANEL 1
MP5 8930086820 3393 FAN HOLDER 1
MP6 8310081740 3393 NAME PLATE 1
MP11 8930087840 3393 ANT PLATE 2
MP12 8930066431 2427 A-NET-1 1
MP13 8930079690 RUBBER STAND (Q) /FF-006 (P4060) 4
MP14 8810008661 PH BT M3×NI-ZC3 11
MP15 8810008661 PH BT M3×8 NI-ZC3 12
MP16 8810008661 PH BT M3×8 NI-ZC3 4
MP17 8810009061 FLAT M3×6 ZK3 9
MP18 8810009061 FLAT M3×6 ZK3 9
MP19 8820000530 FLANGE BOLT M4×8 NI 1
MP20 8850000140 FLAT WASHER M4 NI BS 1
MP22 8810008661 PH BT M3×8 NI-ZC3 2
MP23 8810010780 PH BT M3×20 NI-ZK3 4
MP24 8810003171 SET SCREW A M3×8 ZC3 1
MP25 8810003171 SET SCREW A M3×8 ZC3 4
MP26 8810003381 SET SCREW C M3×10 ZC3 2
MP27 8810003361 SET SCREW C M3×6 ZC3 2
MP28 8930068370 2427 A-MAGNETIC SHIELD 1
MP30 8930078840 SHIELD SPONGE (CM) 1
MP31 8930082341 SHIELD SPONGE (CR)-1 1
MP32 8930082341 SHIELD SPONGE (CR)-1 1
MP33 8930082341 SHIELD SPONGE (CR)-1 1
MP34 8930082341 SHIELD SPONGE (CR)-1 1
MP35 6910008240 59TN4772 (SPCC) 1
MP36 8930082341 SHIELD SPONGE (CR)-1 1
MP37 8930088280 FERRITE SHEET (AL) 1
MP38 8930088330 FERRITE SHEET (AM) 1
MP39 8930084610 SPONGE (LM) 1
MP40 8930063000 THERMAL SHEET (AQ) TC-700HS-1.4 1
MP41 8930064840 SHIELD SPONGE (AO) [USA] 1
8930064840 SHIELD SPONGE (AO) [EUR] 1
8930064840 SHIELD SPONGE (AO) [EUR-1] 1
8930064840 SHIELD SPONGE (AO) [ITR] 1
8930064840 SHIELD SPONGE (AO) [ESP] 1
8930064840 SHIELD SPONGE (AO) [FRA] 1
MP42 8930064840 SHIELD SPONGE (AO) [USA] 1
8930064840 SHIELD SPONGE (AO) [EUR] 1
8930064840 SHIELD SPONGE (AO) [EUR-1] 1
8930064840 SHIELD SPONGE (AO) [ITR] 1
8930064840 SHIELD SPONGE (AO) [ESP] 1
8930064840 SHIELD SPONGE (AO) [FRA] 1
MP43 8930088941 SHIELD SPONGE (DE)-1 [USA] 1
8930088941 SHIELD SPONGE (DE)-1 [EUR] 1
8930088941 SHIELD SPONGE (DE)-1 [EUR-1] 1
8930088941 SHIELD SPONGE (DE)-1 [ITR] 1
8930088941 SHIELD SPONGE (DE)-1 [ESP] 1
8930088941 SHIELD SPONGE (DE)-1 [FRA] 1
MP44 8930068001 SHIELD SPONGE (AT)-1 [USA] 1
8930068001 SHIELD SPONGE (AT)-1 [EUR] 1
8930068001 SHIELD SPONGE (AT)-1 [EUR-1] 1
8930068001 SHIELD SPONGE (AT)-1 [ITR] 1
8930068001 SHIELD SPONGE (AT)-1 [ESP] 1
8930068001 SHIELD SPONGE (AT)-1 [FRA] 1
MP45 8930057790 SHIELD SPONGE (K) [EUR] 1
8930057790 SHIELD SPONGE (K) [EUR-1] 1
8930057790 SHIELD SPONGE (K) [ITR] 1
8930057790 SHIELD SPONGE (K) [ESP] 1
8930057790 SHIELD SPONGE (K) [FRA] 1
MP46 8930057790 SHIELD SPONGE (K) [EUR] 1
8930057790 SHIELD SPONGE (K) [EUR-1] 1
8930057790 SHIELD SPONGE (K) [ITR] 1
8930057790 SHIELD SPONGE (K) [ESP] 1
8930057790 SHIELD SPONGE (K) [FRA] 1
MP47 8930082341 SHIELD SPONGE (CR)-1 Only [USA] 1
MP48 8930068001 SHIELD SPONGE (AT)-1 Only [USA] 1
MP49 8930057870 2429 EARTH SPRING Only [USA] 1
MP50 8930018700 THERMAL SHEET Z Only [USA] 1
MP51 8930018700 THERMAL SHEET Z Only [USA] 1
REF PART
DESCRIPTION QTY.
NO. NO.
[MAIN UNIT]
J1 6510023720 LGY6501-0600C 1
J11 6510027740 HSJ2462-010010 1
J31 6450001641 TCS5044-0141177 1
J111 6450001841 TCS7568-4320177 1
J151 6510029830 3008S-8824 (50U) 1
J171 6510023110 3008L-8P8C 1
J191 6510023720 LGY6501-0600C 1
J261* 6510028980 SCDABA0500 1
J301* 6510024880 52689-3087 1
J401* 6510024880 52689-3087 1
J501* 6510028200 UB-M5BR-S14-4S (LF) (SN) 1
J571 6510023720 LGY6501-0600C 1
J3001 6510018450 TMP-S01X-B1 0 1
J5002* 6510025840 AXN316C038P 1
J5501* 6510027111 08FLT-SM2-TB (LF) (SN) (M) 1
J6501* 6510024522 12FLT-SM2-TB (LF) (SN) (M) 1
J6502* 6510025142 10FLT-SM2-TB (LF) (SN) (M) 1
BT6201* 3020000390 ML414HIV01E 1
MP221 8510020800 3393 C-SHIELD PLATE 1
MP401 8930071160 2427 F-EARTH SPRING 1
MP501 8930071160 2427 F-EARTH SPRING [EUR] 1
8930071160 2427 F-EARTH SPRING [EUR-1] 1
8930071160 2427 F-EARTH SPRING [ITR] 1
8930071160 2427 F-EARTH SPRING [ESP] 1
8930071160 2427 F-EARTH SPRING [FRA] 1
MP1001 8510020100 3182 DC-DC CASE 1
MP2004 8510021830 3765 S-CASE 1
MP2101 8510020790 3393 B-SHIELD PLATE 1
MP2102 8510020800 3393 C-SHIELD PLATE 1
MP2201 8510020800 3393 C-SHIELD PLATE 1
MP2202 8510020790 3393 B-SHIELD PLATE 1
MP2206 8510021830 3765 S-CASE 1
MP2211 8510021830 3765 S-CASE 1
MP2301 8510020830 3393 D-SHIELD PLATE 1
MP2404 8510021830 3765 S-CASE 1
MP2501 8510020780 3393 A-SHIELD PLATE 1
MP2756 8510021830 3765 S-CASE 1
MP3031 8510020800 3393 C-SHIELD PLATE 1
MP3231 8510020770 3393 A-SHIELD CASE 1
MP3232 8510020840 3393 E-SHIELD PLATE 1
MP4001 8510020800 3393 C-SHIELD PLATE 1
MP4002 8930071160 2427 F-EARTH SPRING 1
MP4302 8510012400 2177 D/A CASE 1
MP5051 8510020800 3393 C-SHIELD PLATE 1
