4-3
(Replacement page)
February 2017

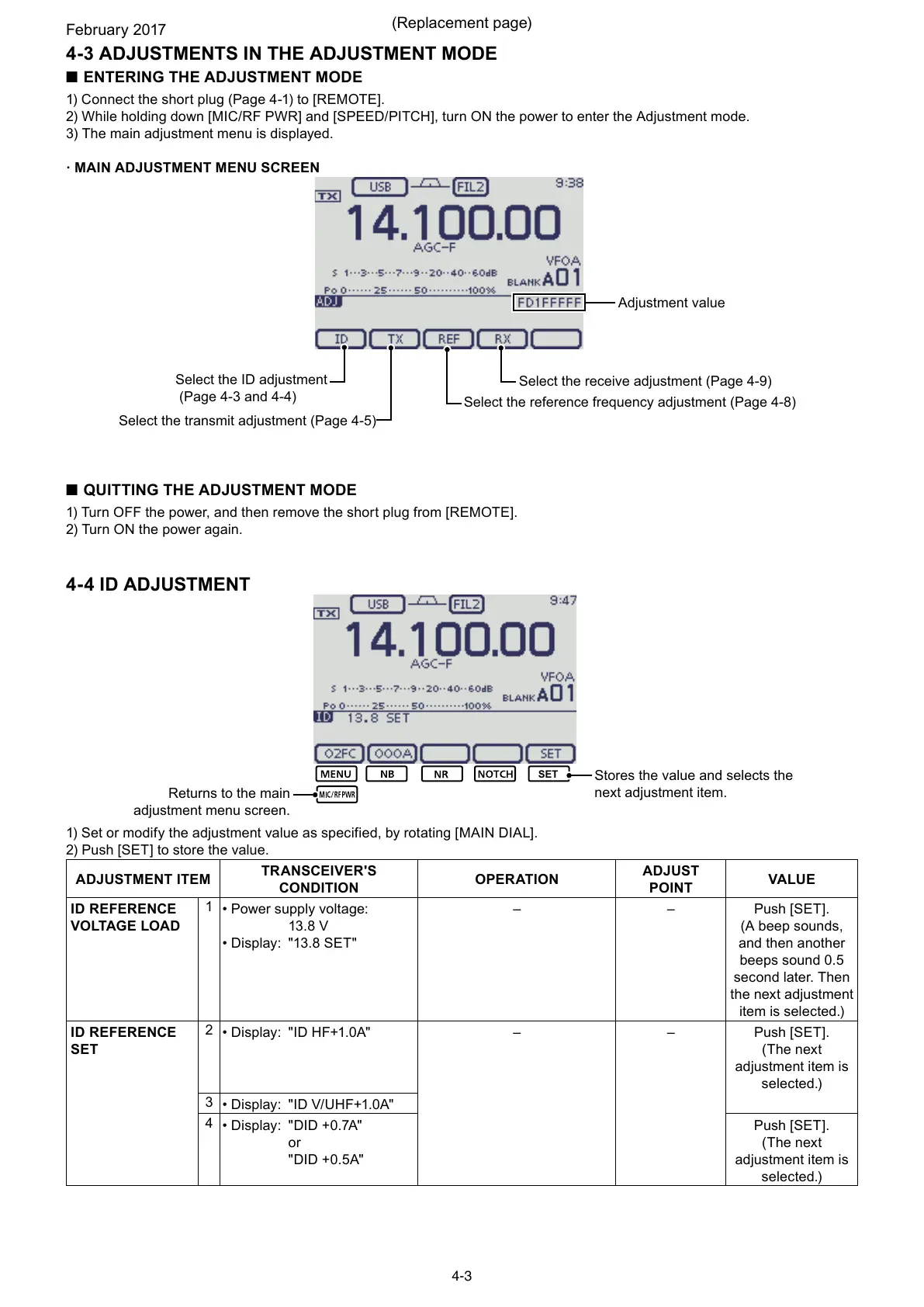

4-3 ADJUSTMENTS IN THE ADJUSTMENT MODE
ENTERING THE ADJUSTMENT MODE ■
1) Connect the short plug (Page 4-1) to [REMOTE].
2) While holding down [MIC/RF PWR] and [SPEED/PITCH], turn ON the power to enter the Adjustment mode.
3) The main adjustment menu is displayed.
· MAIN ADJUSTMENT MENU SCREEN
Adjustment value
Select the receive adjustment (Page 4-9)
Select the reference frequency adjustment (Page 4-8)
Select the ID adjustment
(Page 4-3 and 4-4)
Select the transmit adjustment (Page 4-5)
QUITTING THE ADJUSTMENT MODE ■
1) Turn OFF the power, and then remove the short plug from [REMOTE].
2) Turn ON the power again.
4-4 ID ADJUSTMENT
SET
Stores the value and selects the
next adjustment item.
Returns to the main
adjustment menu screen.
1) Set or modify the adjustment value as specified, by rotating [MAIN DIAL].
2) Push [SET] to store the value.
ADJUSTMENT ITEM
TRANSCEIVER'S
CONDITION
OPER ATION
ADJUST
POINT
VALUE
ID REFERENCE
VOLTAGE LOAD
1
Power supply voltage: •
13.8 V
Display: "13.8 SET"•
– – Push [SET].
(A beep sounds,
and then another
beeps sound 0.5
second later. Then
the next adjustment
item is selected.)
ID REFERENCE
SET
2
Display: "ID HF+1.0A"• – – Push [SET].
(The next
adjustment item is
selected.)
3
Display: "ID V/UHF+1.0A"•
4
Display: "DID +0.7A" •
or
"DID +0.5A"
Push [SET].
(The next
adjustment item is
selected.)
To Next Page
