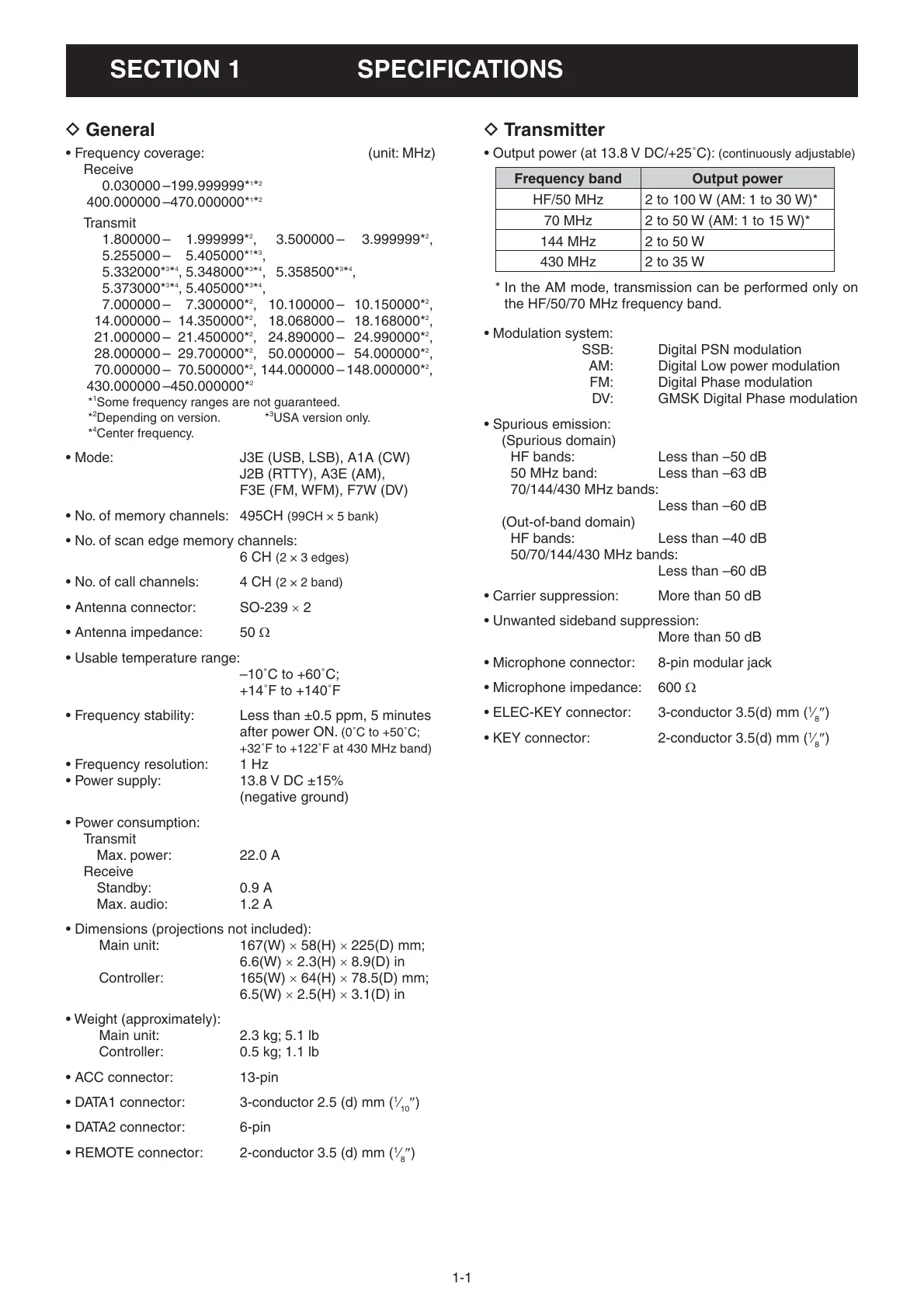

SECTION 1. SPECIFICATIONS
General
D
• Frequency coverage: (unit: MHz)
Receive
0.030000 – 199.999999*
1
*
2
400.000000 – 470.000000*
1
*
2
Transmit
1.800000 – 1.999999*
2
, 3.500000 – 3.999999*
2
,
5.255000 – 5.405000*
1
*
3
,
5.332000*
3
*
4
, 5.348000*
3
*
4
, 5.358500*
3
*
4
,
5.373000*
3
*
4
, 5.405000*
3
*
4
,
7.000000 – 7.300000*
2
, 10.100000 – 10.150000*
2
,
14.000000 – 14.350000*
2
, 18.068000 – 18.168000*
2
,
21.000000 – 21.450000*
2
, 24.890000 – 24.990000*
2
,
28.000000 – 29.700000*
2
, 50.000000 – 54.000000*
2
,
70.000000 – 70.500000*
2
, 144.000000 – 148.000000*
2
,
430.000000 – 450.000000*
2
*
1
Some frequency ranges are not guaranteed.
*
2
Depending on version. *
3
USA version only.
*
4
Center frequency.
• Mode: J3E (USB, LSB), A1A (CW)
J2B (RTTY), A3E (AM),
F3E (FM, WFM), F7W (DV)
• No. of memory channels: 495CH
(99CH × 5 bank)
• No. of scan edge memory channels:
6 CH (2 × 3 edges)
• No. of call channels: 4 CH (2 × 2 band)
• Antenna connector: SO-239 × 2
• Antenna impedance: 50 Ω
• Usable temperature range:
–10˚C to +60˚C;
+14˚F to +140˚F
• Frequency stability: Less than ±0.5 ppm, 5 minutes
after power ON.
(0˚C to +50˚C;
+32˚F to +122˚F at 430 MHz band)
• Frequency resolution: 1 Hz
• Power supply: 13.8 V DC ±15%
(negative ground)
• Power consumption:
Transmit
Max. power: 22.0 A
Receive
Standby: 0.9 A
Max. audio: 1.2 A
• Dimensions (projections not included):
Main unit: 167(W) × 58(H) × 225(D) mm;
6.6(W) × 2.3(H) × 8.9(D) in
Controller: 165(W) × 64(H) × 78.5(D) mm;
6.5(W) × 2.5(H) × 3.1(D) in
• Weight (approximately):
Main unit: 2.3 kg; 5.1 lb
Controller: 0.5 kg; 1.1 lb
• ACC connector: 13-pin
• DATA1 connector: 3-conductor 2.5 (d) mm (
1
⁄
10
″)
• DATA2 connector: 6-pin
• REMOTE connector: 2-conductor 3.5 (d) mm (
1
⁄
8
″)
Transmitter
D
• Output power (at 13.8 V DC/+25˚C): (continuously adjustable)
Frequency band Output power
HF/50 MHz 2 to 100 W (AM: 1 to 30 W)*
70 MHz 2 to 50 W (AM: 1 to 15 W)*
144 MHz 2 to 50 W
430 MHz 2 to 35 W
* In the AM mode, transmission can be performed only on
the HF/50/70 MHz frequency band.
• Modulation system:
SSB: Digital PSN modulation
AM: Digital Low power modulation
FM: Digital Phase modulation
DV: GMSK Digital Phase modulation
• Spurious emission:
(Spurious domain)
HF bands: Less than –50 dB
50 MHz band: Less than –63 dB
70/144/430 MHz bands:
Less than –60 dB
(Out-of-band domain)
HF bands: Less than –40 dB
50/70/144/430 MHz bands:
Less than –60 dB
• Carrier suppression: More than 50 dB
• Unwanted sideband suppression:
More than 50 dB
• Microphone connector: 8-pin modular jack
• Microphone impedance: 600 Ω
• ELEC-KEY connector: 3-conductor 3.5(d) mm (
1
⁄
8
″)
• KEY connector: 2-conductor 3.5(d) mm (
1
⁄
8
″)
