Icom IC-7100 Service Manual Addendum

1-1

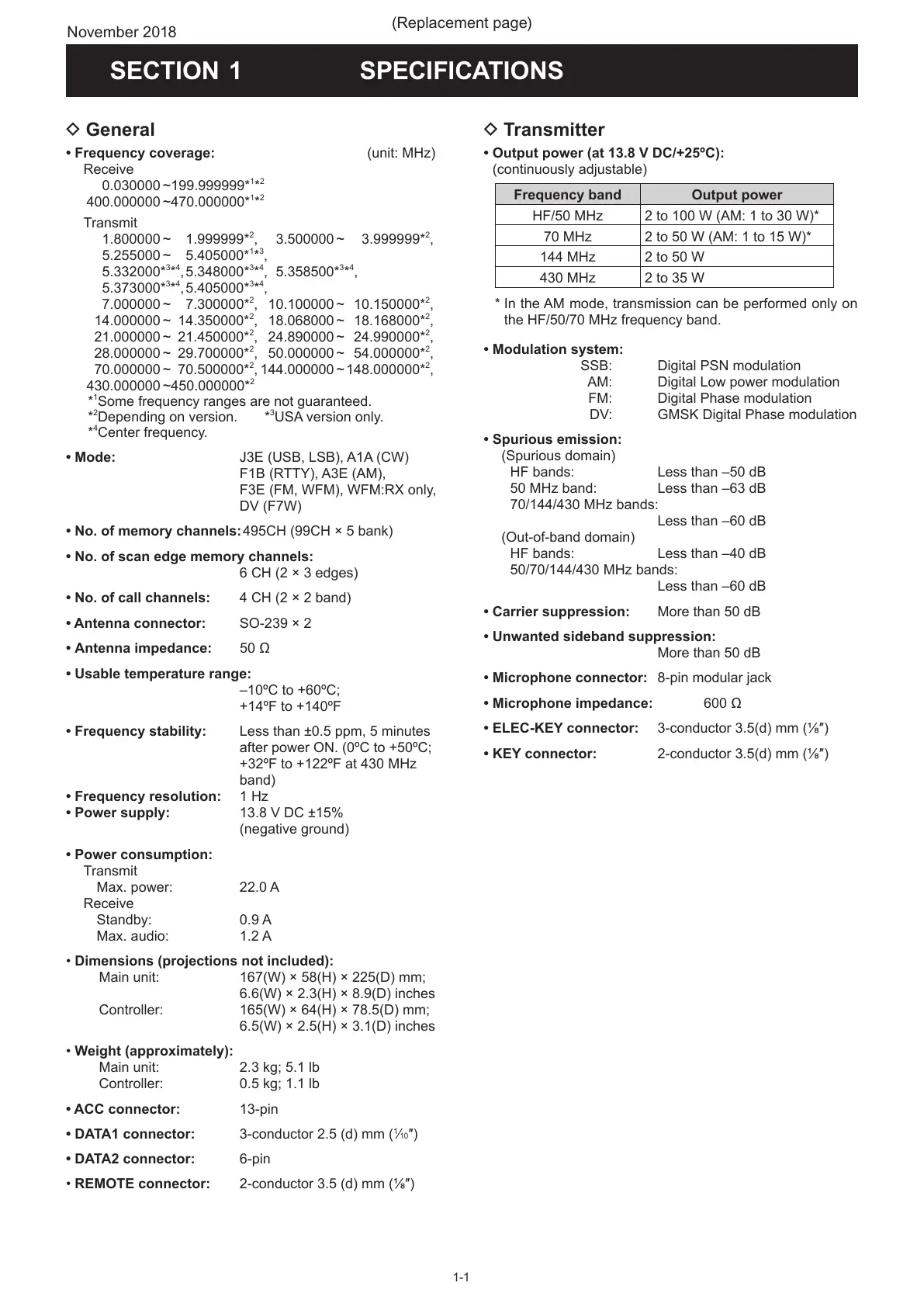

SECTION 1 SPECIFICATIONS
(Replacement page)
November 2018
D
General
• Frequency coverage: (unit: MHz)
Receive
0.030000 ~ 199.999999*
1
*
2
400.000000 ~ 470.000000*
1
*
2
Transmit
1.800000 ~ 1.999999*
2
, 3.500000 ~ 3.999999*
2
,
5.255000 ~ 5.405000*
1
*
3
,
5.332000*
3
*
4
, 5.348000*
3
*
4
, 5.358500*
3
*
4
,
5.373000*
3
*
4
, 5.405000*
3
*
4
,
7.000000 ~ 7.300000*
2
, 10.100000 ~ 10.150000*
2
,
14.000000 ~ 14.350000*
2
, 18.068000 ~ 18.168000*
2
,
21.000000 ~ 21.450000*
2
, 24.890000 ~ 24.990000*
2
,
28.000000 ~ 29.700000*
2
, 50.000000 ~ 54.000000*
2
,
70.000000 ~ 70.500000*
2
, 144.000000 ~ 148.000000*
2
,
430.000000 ~ 450.000000*
2
*
1
Some frequency ranges are not guaranteed.
*
2
Depending on version. *
3
USA version only.
*
4
Center frequency.
• Mode: J3E (USB, LSB), A1A (CW)
F1B (RTTY), A3E (AM),
F3E (FM, WFM), WFM:RX only,
DV (F7W)
• No. of memory channels: 495CH (99CH × 5 bank)
• No. of scan edge memory channels:
6 CH (2 × 3 edges)
• No. of call channels: 4 CH (2 × 2 band)
• Antenna connector: SO-239 × 2
• Antenna impedance:  50Ω
• Usable temperature range:
–10ºC to +60ºC;
+14ºF to +140ºF
• Frequency stability: Less than ±0.5 ppm, 5 minutes
after power ON. (0ºC to +50ºC;
+32ºF to +122ºF at 430 MHz
band)
• Frequency resolution: 1 Hz
• Power supply: 13.8 V DC ±15%
(negative ground)
• Power consumption:
Transmit
Max. power: 22.0 A
Receive
Standby: 0.9 A
Max. audio: 1.2 A
•Dimensions (projections not included):
Main unit: 167(W) × 58(H) × 225(D) mm;
6.6(W) × 2.3(H) × 8.9(D) inches
Controller: 165(W) × 64(H) × 78.5(D) mm;
6.5(W) × 2.5(H) × 3.1(D) inches
•Weight (approximately):
Main unit: 2.3 kg; 5.1 lb
Controller: 0.5 kg; 1.1 lb
• ACC connector: 13-pin
• DATA1 connector: 3-conductor 2.5 (d) mm (
1
⁄
10
″)
• DATA2 connector: 6-pin
•REMOTE connector:  2-conductor3.5(d)mm(⅛″)
D
Transmitter
• Output power (at 13.8 V DC/+25ºC):
(continuously adjustable)
Frequency band Output power
HF/50 MHz 2 to 100 W (AM: 1 to 30 W)*
70 MHz 2 to 50 W (AM: 1 to 15 W)*
144 MHz 2 to 50 W
430 MHz 2 to 35 W
* In the AM mode, transmission can be performed only on
the HF/50/70 MHz frequency band.
• Modulation system:
SSB: Digital PSN modulation
AM: Digital Low power modulation
FM: Digital Phase modulation
DV: GMSK Digital Phase modulation
• Spurious emission:
(Spurious domain)
HF bands: Less than –50 dB
50 MHz band: Less than –63 dB
70/144/430 MHz bands:
Less than –60 dB
(Out-of-band domain)
HF bands: Less than –40 dB
50/70/144/430 MHz bands:
Less than –60 dB
• Carrier suppression: More than 50 dB
• Unwanted sideband suppression:
More than 50 dB
• Microphone connector: 8-pin modular jack
• Microphone impedance: 600Ω
• ELEC-KEY connector:  3-conductor3.5(d)mm(⅛″)
• KEY connector:  2-conductor3.5(d)mm(⅛″)

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
