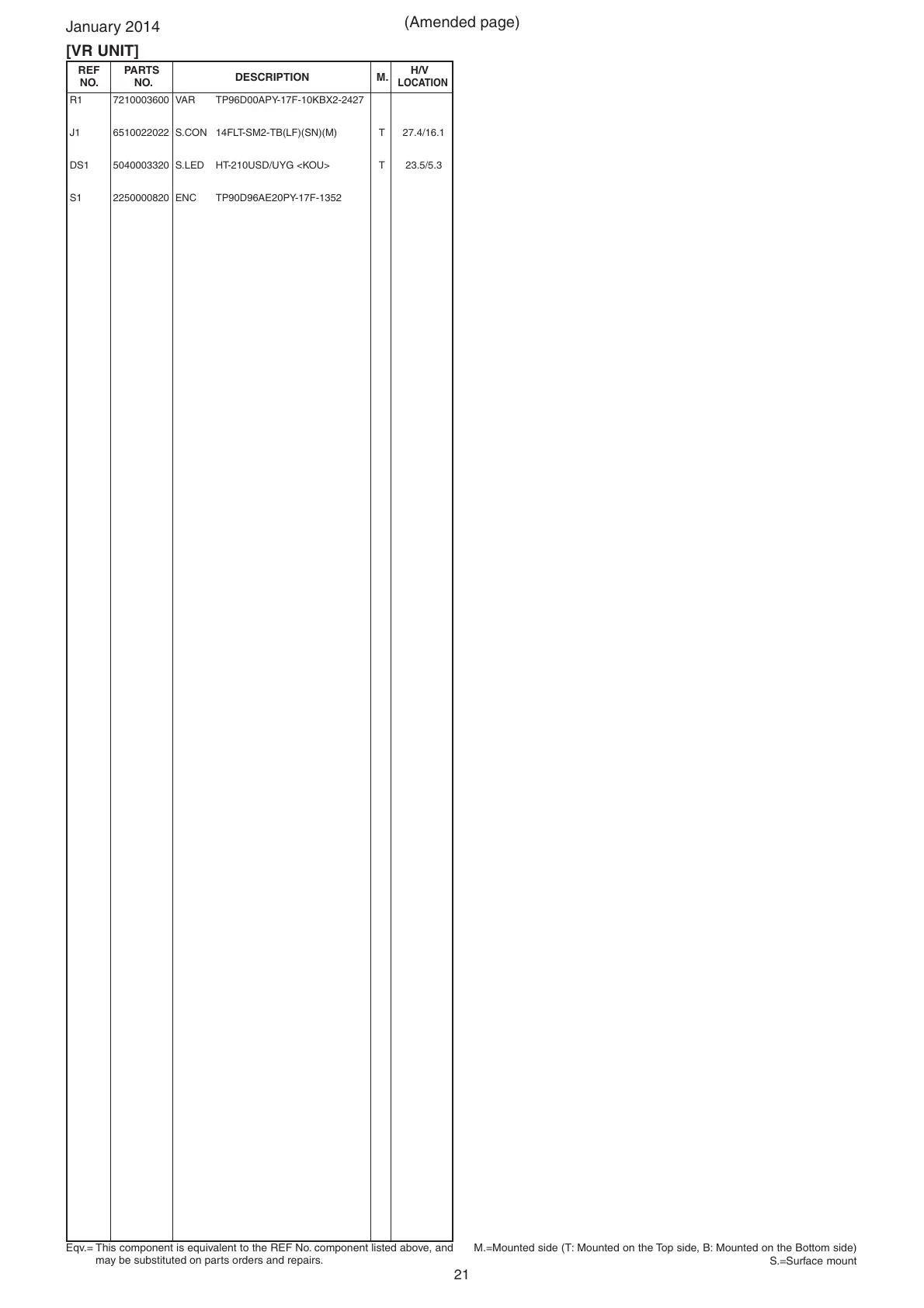

January 2014
(Amended page)
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[VR UNIT]
R1 7210003600 VAR TP96D00APY-17F-10KBX2-2427
J1 6510022022 S.CON 14FLT-SM2-TB(LF)(SN)(M) T 27.4/16.1
DS1 5040003320 S.LED HT-210USD/UYG <KOU> T 23.5/5.3
S1 2250000820 ENC TP90D96AE20PY-17F-1352
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.
