Icom IC-7100

4-10
ADJUSTMENT ITEM TRANSCEIVER'S CONDITION OPERATION
ADJUST
POINT
VALUE
PREPARATION 1 • Frequency: 75.2015 MHz
• Receive
1) Connect the SSG to [ANT2], and
then set it as;
Frequency : 75.2015 MHz
Level :+10
dBµ (–97 dBm)
Modulation: None
2) Connect the millivoltmeter and a
speaker to [EXT-SP].
–
Push [NB].
TUNED BPF 2 • Display: "Tuned BPF VHF1-L"
• Receive
– Push [SET].
(A beep sounds, and
then another beeps
sound 3 sec. later)
3 • Display: "Tuned BPF VHF1-M"
• Receive
• Set the SSG as;
Frequency : 90.2015 MHz
4 • Display: "Tuned BPF VHF1-H"
• Receive
• Set the SSG as;
Frequency : 128.8015 MHz
5 • Display: "Tuned BPF VHF2-L"
• Receive
• Set the SSG as;
Frequency : 129.2015 MHz
6 • Display: "Tuned BPF VHF2-M"
• Receive
• Set the SSG as;
Frequency : 146.0215 MHz
7 • Display: "Tuned BPF VHF2-H"
• Receive
• Set the SSG as;
Frequency : 170.2015 MHz
IF-TRAP 8 • Display: "IF-Trap"
• Receive
• Set the SSG as;
Frequency : 124.4870 MHz
Level :+50
dBµ (–57 dBm)
Modulation: None
Push [SET].
(A beep sounds, and
then another beeps
sound 20 to 30 sec.
later)
RX TOTAL GAIN 9 • Display: "Total Gain VHF"
• Receive
• Set the SSG as;
Frequency : 146.0215 MHz
Level :+10
dBµ (–97 dBm)
Modulation: None
Push [SET].
(A beep sounds, and
then another beeps
sound 15 to 20 sec.
later)
S-METER NOTE: DO NOT change the output level of the SSG until the beep sounds.
10 • Display: "S9 Level VHF"
• Receive
–
–
Push [SET].
(A beep sounds, and
then another beep
sounds
1 sec. later)
11 • Display: "S9+60 Level VHF"
• Receive
• Set the SSG as;
Level :
+70 dB µ (–37 dBm)
Automatically returns to the receive adjustment menu.

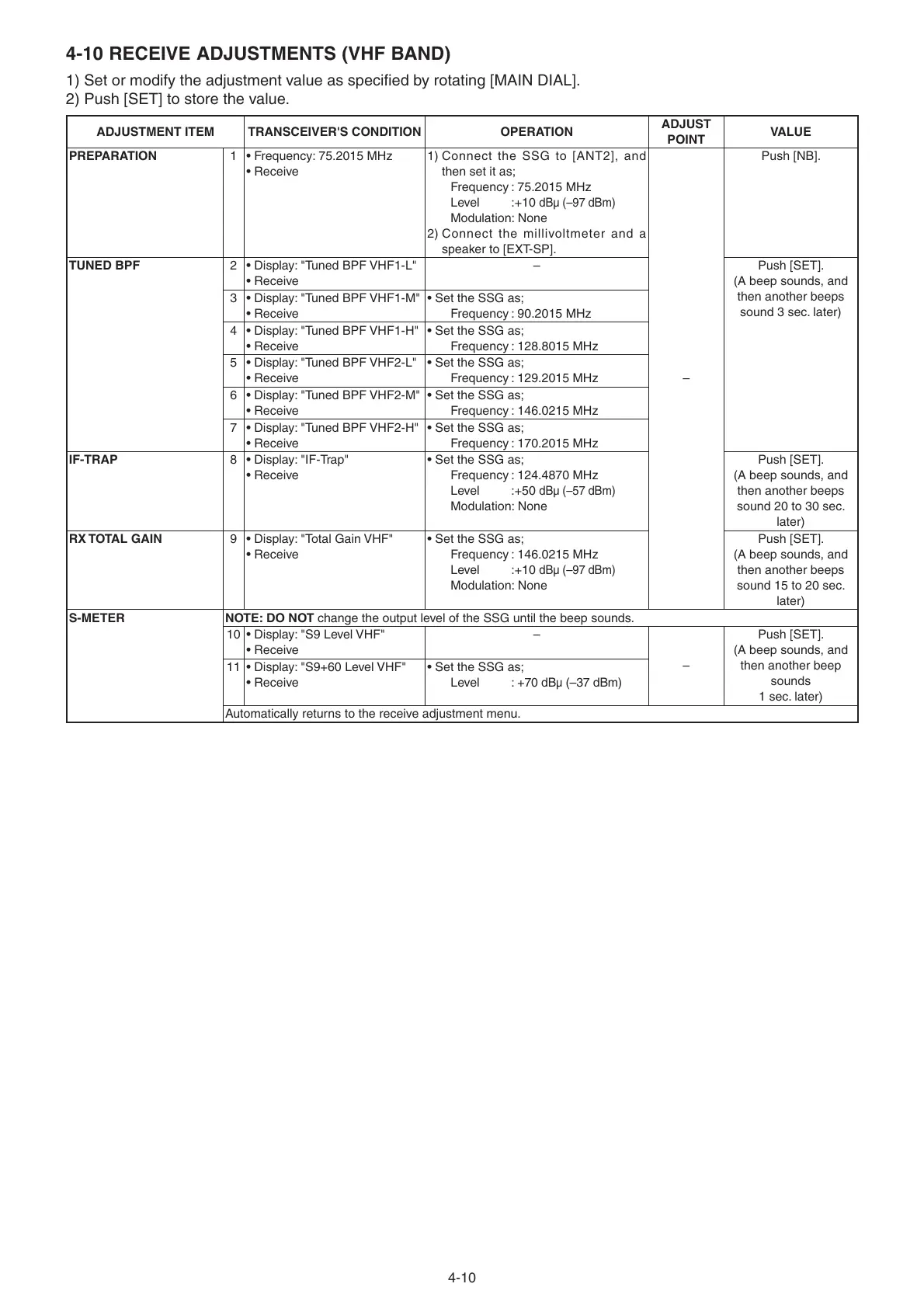

4-10 RECEIVE ADJUSTMENTS (VHF BAND)
1) Set or modify the adjustment value as specifi ed by rotating [MAIN DIAL].
2) Push [SET] to store the value.
