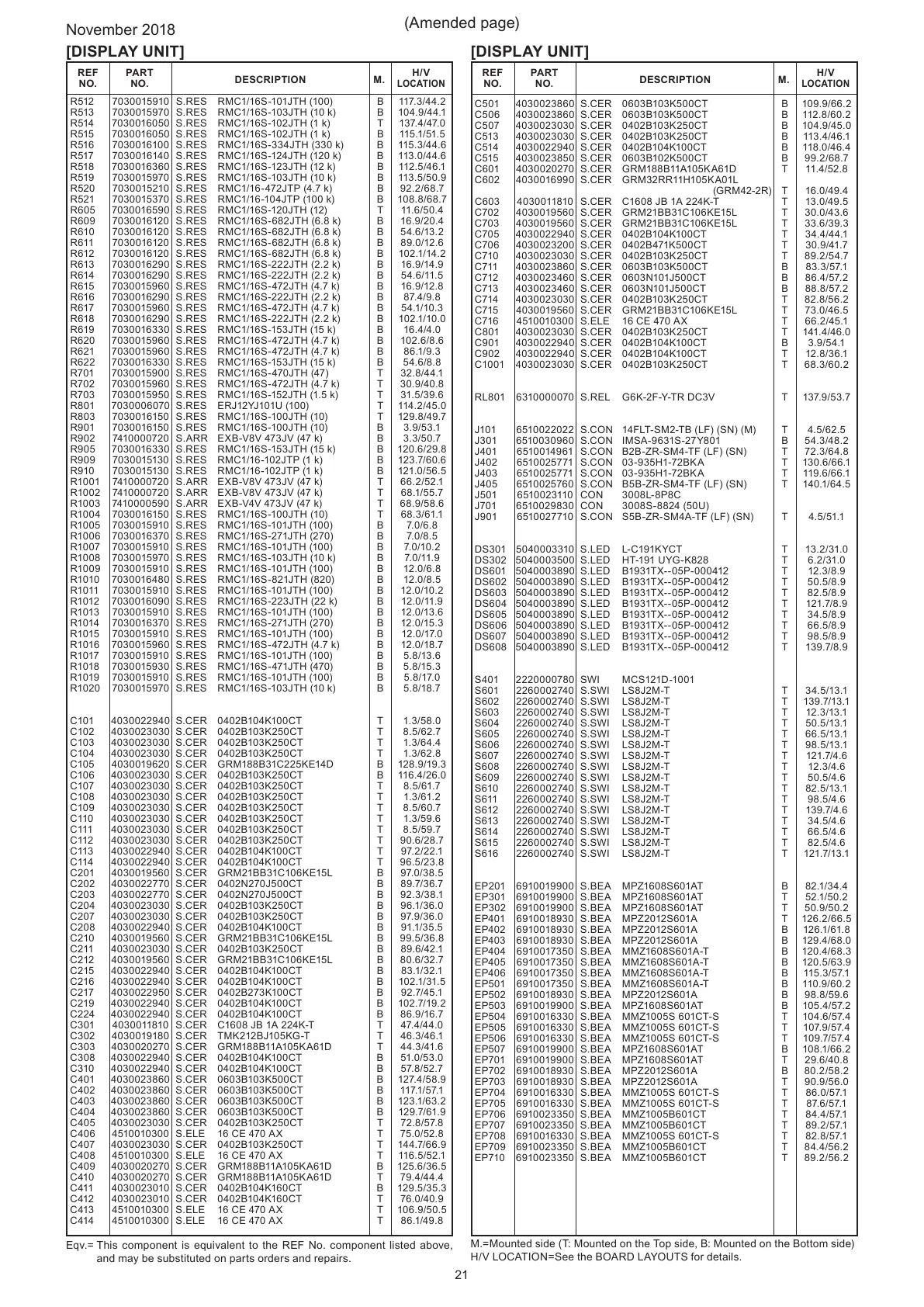

21
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[DISPLAY UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[DISPLAY UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
(Amended page)
November 2018
R512 7030015910 S.RES RMC1/16S-101JTH (100) B 117.3/44.2
R513 7030015970 S.RES RMC1/16S-103JTH (10 k) B 104.9/44.1
R514 7030016050 S.RES RMC1/16S-102JTH (1 k) T 137.4/47.0
R515 7030016050 S.RES RMC1/16S-102JTH (1 k) B 115.1/51.5
R516 7030016100 S.RES RMC1/16S-334JTH (330 k) B 115.3/44.6
R517 7030016140 S.RES RMC1/16S-124JTH (120 k) B 113.0/44.6
R518 7030016360 S.RES RMC1/16S-123JTH (12 k) B 112.5/46.1
R519 7030015970 S.RES RMC1/16S-103JTH (10 k) B 113.5/50.9
R520 7030015210 S.RES RMC1/16-472JTP (4.7 k) B 92.2/68.7
R521 7030015370 S.RES RMC1/16-104JTP (100 k) B 108.8/68.7
R605 7030016590 S.RES RMC1/16S-120JTH (12) T 11.6/50.4
R609 7030016120 S.RES RMC1/16S-682JTH (6.8 k) B 16.9/20.4
R610 7030016120 S.RES RMC1/16S-682JTH (6.8 k) B 54.6/13.2
R611 7030016120 S.RES RMC1/16S-682JTH (6.8 k) B 89.0/12.6
R612 7030016120 S.RES RMC1/16S-682JTH (6.8 k) B 102.1/14.2
R613 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 16.9/14.9
R614 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 54.6/11.5
R615 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 16.9/12.8
R616 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 87.4/9.8
R617 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 54.1/10.3
R618 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 102.1/10.0
R619 7030016330 S.RES RMC1/16S-153JTH (15 k) B 16.4/4.0
R620 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 102.6/8.6
R621 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 86.1/9.3
R622 7030016330 S.RES RMC1/16S-153JTH (15 k) B 54.6/8.8
R701 7030015900 S.RES RMC1/16S-470JTH (47) T 32.8/44.1
R702 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 30.9/40.8
R703 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 31.5/39.6
R801 7030006070 S.RES ERJ12YJ101U (100) T 114.2/45.0
R803 7030016150 S.RES RMC1/16S-100JTH (10) T 129.8/49.7
R901 7030016150 S.RES RMC1/16S-100JTH (10) B 3.9/53.1
R902 7410000720 S.ARR EXB-V8V 473JV (47 k) B 3.3/50.7
R905 7030016330 S.RES RMC1/16S-153JTH (15 k) B 120.6/29.8
R909 7030015130 S.RES RMC1/16-102JTP (1 k) B 123.7/60.6
R910 7030015130 S.RES RMC1/16-102JTP (1 k) B 121.0/56.5
R1001 7410000720 S.ARR EXB-V8V 473JV (47 k) T 66.2/52.1
R1002 7410000720 S.ARR EXB-V8V 473JV (47 k) T 68.1/55.7
R1003 7410000590 S.ARR EXB-V4V 473JV (47 k) T 68.9/58.6
R1004 7030016150 S.RES RMC1/16S-100JTH (10) T 68.3/61.1
R1005 7030015910 S.RES RMC1/16S-101JTH (100) B 7.0/6.8
R1006 7030016370 S.RES RMC1/16S-271JTH (270) B 7.0/8.5
R1007 7030015910 S.RES RMC1/16S-101JTH (100) B 7.0/10.2
R1008 7030015970 S.RES RMC1/16S-103JTH (10 k) B 7.0/11.9
R1009 7030015910 S.RES RMC1/16S-101JTH (100) B 12.0/6.8
R1010 7030016480 S.RES RMC1/16S-821JTH (820) B 12.0/8.5
R1011 7030015910 S.RES RMC1/16S-101JTH (100) B 12.0/10.2
R1012 7030016090 S.RES RMC1/16S-223JTH (22 k) B 12.0/11.9
R1013 7030015910 S.RES RMC1/16S-101JTH (100) B 12.0/13.6
R1014 7030016370 S.RES RMC1/16S-271JTH (270) B 12.0/15.3
R1015 7030015910 S.RES RMC1/16S-101JTH (100) B 12.0/17.0
R1016 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 12.0/18.7
R1017 7030015910 S.RES RMC1/16S-101JTH (100) B 5.8/13.6
R1018 7030015930 S.RES RMC1/16S-471JTH (470) B 5.8/15.3
R1019 7030015910 S.RES RMC1/16S-101JTH (100) B 5.8/17.0
R1020 7030015970 S.RES RMC1/16S-103JTH (10 k) B 5.8/18.7
C101 4030022940 S.CER 0402B104K100CT T 1.3/58.0
C102 4030023030 S.CER 0402B103K250CT T 8.5/62.7
C103 4030023030 S.CER 0402B103K250CT T 1.3/64.4
C104 4030023030 S.CER 0402B103K250CT T 1.3/62.8
C105 4030019620 S.CER GRM188B31C225KE14D B 128.9/19.3
C106 4030023030 S.CER 0402B103K250CT B 116.4/26.0
C107 4030023030 S.CER 0402B103K250CT T 8.5/61.7
C108 4030023030 S.CER 0402B103K250CT T 1.3/61.2
C109 4030023030 S.CER 0402B103K250CT T 8.5/60.7
C110 4030023030 S.CER 0402B103K250CT T 1.3/59.6
C111 4030023030 S.CER 0402B103K250CT T 8.5/59.7
C112 4030023030 S.CER 0402B103K250CT T 90.6/28.7
C113 4030022940 S.CER 0402B104K100CT T 97.2/22.1
C114 4030022940 S.CER 0402B104K100CT T 96.5/23.8
C201 4030019560 S.CER GRM21BB31C106KE15L B 97.0/38.5
C202 4030022770 S.CER 0402N270J500CT B 89.7/36.7
C203 4030022770 S.CER 0402N270J500CT B 92.3/38.1
C204 4030023030 S.CER 0402B103K250CT B 96.1/36.0
C207 4030023030 S.CER 0402B103K250CT B 97.9/36.0
C208 4030022940 S.CER 0402B104K100CT B 91.1/35.5
C210 4030019560 S.CER GRM21BB31C106KE15L B 99.5/36.8
C211 4030023030 S.CER 0402B103K250CT B 89.6/42.1
C212 4030019560 S.CER GRM21BB31C106KE15L B 80.6/32.7
C215 4030022940 S.CER 0402B104K100CT B 83.1/32.1
C216 4030022940 S.CER 0402B104K100CT B 102.1/31.5
C217 4030022950 S.CER 0402B273K100CT B 92.7/45.1
C219 4030022940 S.CER 0402B104K100CT B 102.7/19.2
C224 4030022940 S.CER 0402B104K100CT B 86.9/16.7
C301 4030011810 S.CER C1608 JB 1A 224K-T T 47.4/44.0
C302 4030019180 S.CER TMK212BJ105KG-T T 46.3/46.1
C303 4030020270 S.CER GRM188B11A105KA61D T 44.3/41.6
C308 4030022940 S.CER 0402B104K100CT B 51.0/53.0
C310 4030022940 S.CER 0402B104K100CT B 57.8/52.7
C401 4030023860 S.CER 0603B103K500CT B 127.4/58.9
C402 4030023860 S.CER 0603B103K500CT B 117.1/57.1
C403 4030023860 S.CER 0603B103K500CT B 123.1/63.2
C404 4030023860 S.CER 0603B103K500CT B 129.7/61.9
C405 4030023030 S.CER 0402B103K250CT T 72.8/57.8
C406 4510010300 S.ELE 16 CE 470 AX T 75.0/52.8
C407 4030023030 S.CER 0402B103K250CT T 144.7/66.9
C408 4510010300 S.ELE 16 CE 470 AX T 116.5/52.1
C409 4030020270 S.CER GRM188B11A105KA61D B 125.6/36.5
C410 4030020270 S.CER GRM188B11A105KA61D T 79.4/44.4
C411 4030023010 S.CER 0402B104K160CT B 129.5/35.3
C412 4030023010 S.CER 0402B104K160CT T 76.0/40.9
C413 4510010300 S.ELE 16 CE 470 AX T 106.9/50.5
C414 4510010300 S.ELE 16 CE 470 AX T 86.1/49.8
C501 4030023860 S.CER 0603B103K500CT B 109.9/66.2
C506 4030023860 S.CER 0603B103K500CT B 112.8/60.2
C507 4030023030 S.CER 0402B103K250CT B 104.9/45.0
C513 4030023030 S.CER 0402B103K250CT B 113.4/46.1
C514 4030022940 S.CER 0402B104K100CT B 118.0/46.4
C515 4030023850 S.CER 0603B102K500CT B 99.2/68.7
C601 4030020270 S.CER GRM188B11A105KA61D T 11.4/52.8
C602 4030016990 S.CER GRM32RR11H105KA01L
(GRM42-2R) T 16.0/49.4
C603 4030011810 S.CER C1608 JB 1A 224K-T T 13.0/49.5
C702 4030019560 S.CER GRM21BB31C106KE15L T 30.0/43.6
C703 4030019560 S.CER GRM21BB31C106KE15L T 33.6/39.3
C705 4030022940 S.CER 0402B104K100CT T 34.4/44.1
C706 4030023200 S.CER 0402B471K500CT T 30.9/41.7
C710 4030023030 S.CER 0402B103K250CT T 89.2/54.7
C711 4030023860 S.CER 0603B103K500CT B 83.3/57.1
C712 4030023460 S.CER 0603N101J500CT B 86.4/57.2
C713 4030023460 S.CER 0603N101J500CT B 88.8/57.2
C714 4030023030 S.CER 0402B103K250CT T 82.8/56.2
C715 4030019560 S.CER GRM21BB31C106KE15L T 73.0/46.5
C716 4510010300 S.ELE 16 CE 470 AX T 66.2/45.1
C801 4030023030 S.CER 0402B103K250CT T 141.4/46.0
C901 4030022940 S.CER 0402B104K100CT B 3.9/54.1
C902 4030022940 S.CER 0402B104K100CT T 12.8/36.1
C1001 4030023030 S.CER 0402B103K250CT T 68.3/60.2
RL801 6310000070 S.REL G6K-2F-Y-TR DC3V T 137.9/53.7
J101 6510022022 S.CON 14FLT-SM2-TB (LF) (SN) (M) T 4.5/62.5
J301 6510030960 S.CON IMSA-9631S-27Y801 B 54.3/48.2
J401 6510014961 S.CON B2B-ZR-SM4-TF (LF) (SN) T 72.3/64.8
J402 6510025771 S.CON 03-935H1-72BKA T 130.6/66.1
J403 6510025771 S.CON 03-935H1-72BKA T 119.6/66.1
J405 6510025760 S.CON B5B-ZR-SM4-TF (LF) (SN) T 140.1/64.5
J501 6510023110 CON 3008L-8P8C
J701 6510029830 CON 3008S-8824 (50U)
J901 6510027710 S.CON S5B-ZR-SM4A-TF (LF) (SN) T 4.5/51.1
DS301 5040003310 S.LED L-C191KYCT T 13.2/31.0
DS302 5040003500 S.LED HT-191 UYG-K828 T 6.2/31.0
DS601 5040003890 S.LED B1931TX--05P-000412 T 12.3/8.9
DS602 5040003890 S.LED B1931TX--05P-000412 T 50.5/8.9
DS603 5040003890 S.LED B1931TX--05P-000412 T 82.5/8.9
DS604 5040003890 S.LED B1931TX--05P-000412 T 121.7/8.9
DS605 5040003890 S.LED B1931TX--05P-000412 T 34.5/8.9
DS606 5040003890 S.LED B1931TX--05P-000412 T 66.5/8.9
DS607 5040003890 S.LED B1931TX--05P-000412 T 98.5/8.9
DS608 5040003890 S.LED B1931TX--05P-000412 T 139.7/8.9
S401 2220000780 SWI MCS121D-1001
S601 2260002740 S.SWI LS8J2M-T T 34.5/13.1
S602 2260002740 S.SWI LS8J2M-T T 139.7/13.1
S603 2260002740 S.SWI LS8J2M-T T 12.3/13.1
S604 2260002740 S.SWI LS8J2M-T T 50.5/13.1
S605 2260002740 S.SWI LS8J2M-T T 66.5/13.1
S606 2260002740 S.SWI LS8J2M-T T 98.5/13.1
S607 2260002740 S.SWI LS8J2M-T T 121.7/4.6
S608 2260002740 S.SWI LS8J2M-T T 12.3/4.6
S609 2260002740 S.SWI LS8J2M-T T 50.5/4.6
S610 2260002740 S.SWI LS8J2M-T T 82.5/13.1
S611 2260002740 S.SWI LS8J2M-T T 98.5/4.6
S612 2260002740 S.SWI LS8J2M-T T 139.7/4.6
S613 2260002740 S.SWI LS8J2M-T T 34.5/4.6
S614 2260002740 S.SWI LS8J2M-T T 66.5/4.6
S615 2260002740 S.SWI LS8J2M-T T 82.5/4.6
S616 2260002740 S.SWI LS8J2M-T T 121.7/13.1
EP201 6910019900 S.BEA MPZ1608S601AT B 82.1/34.4
EP301 6910019900 S.BEA MPZ1608S601AT T 52.1/50.2
EP302 6910019900 S.BEA MPZ1608S601AT T 50.9/50.2
EP401 6910018930 S.BEA MPZ2012S601A T 126.2/66.5
EP402 6910018930 S.BEA MPZ2012S601A B 126.1/61.8
EP403 6910018930 S.BEA MPZ2012S601A B 129.4/68.0
EP404 6910017350 S.BEA MMZ1608S601A-T B 120.4/68.3
EP405 6910017350 S.BEA MMZ1608S601A-T B 120.5/63.9
EP406 6910017350 S.BEA MMZ1608S601A-T B 115.3/57.1
EP501 6910017350 S.BEA MMZ1608S601A-T B 110.9/60.2
EP502 6910018930 S.BEA MPZ2012S601A B 98.8/59.6
EP503 6910019900 S.BEA MPZ1608S601AT B 105.4/57.2
EP504 6910016330 S.BEA MMZ1005S 601CT-S T 104.6/57.4
EP505 6910016330 S.BEA MMZ1005S 601CT-S T 107.9/57.4
EP506 6910016330 S.BEA MMZ1005S 601CT-S T 109.7/57.4
EP507 6910019900 S.BEA MPZ1608S601AT B 108.1/66.2
EP701 6910019900 S.BEA MPZ1608S601AT T 29.6/40.8
EP702 6910018930 S.BEA MPZ2012S601A B 80.2/58.2
EP703 6910018930 S.BEA MPZ2012S601A T 90.9/56.0
EP704 6910016330 S.BEA MMZ1005S 601CT-S T 86.0/57.1
EP705 6910016330 S.BEA MMZ1005S 601CT-S T 87.6/57.1
EP706 6910023350 S.BEA MMZ1005B601CT T 84.4/57.1
EP707 6910023350 S.BEA MMZ1005B601CT T 89.2/57.1
EP708 6910016330 S.BEA MMZ1005S 601CT-S T 82.8/57.1
EP709 6910023350 S.BEA MMZ1005B601CT T 84.4/56.2
EP710 6910023350 S.BEA MMZ1005B601CT T 89.2/56.2
