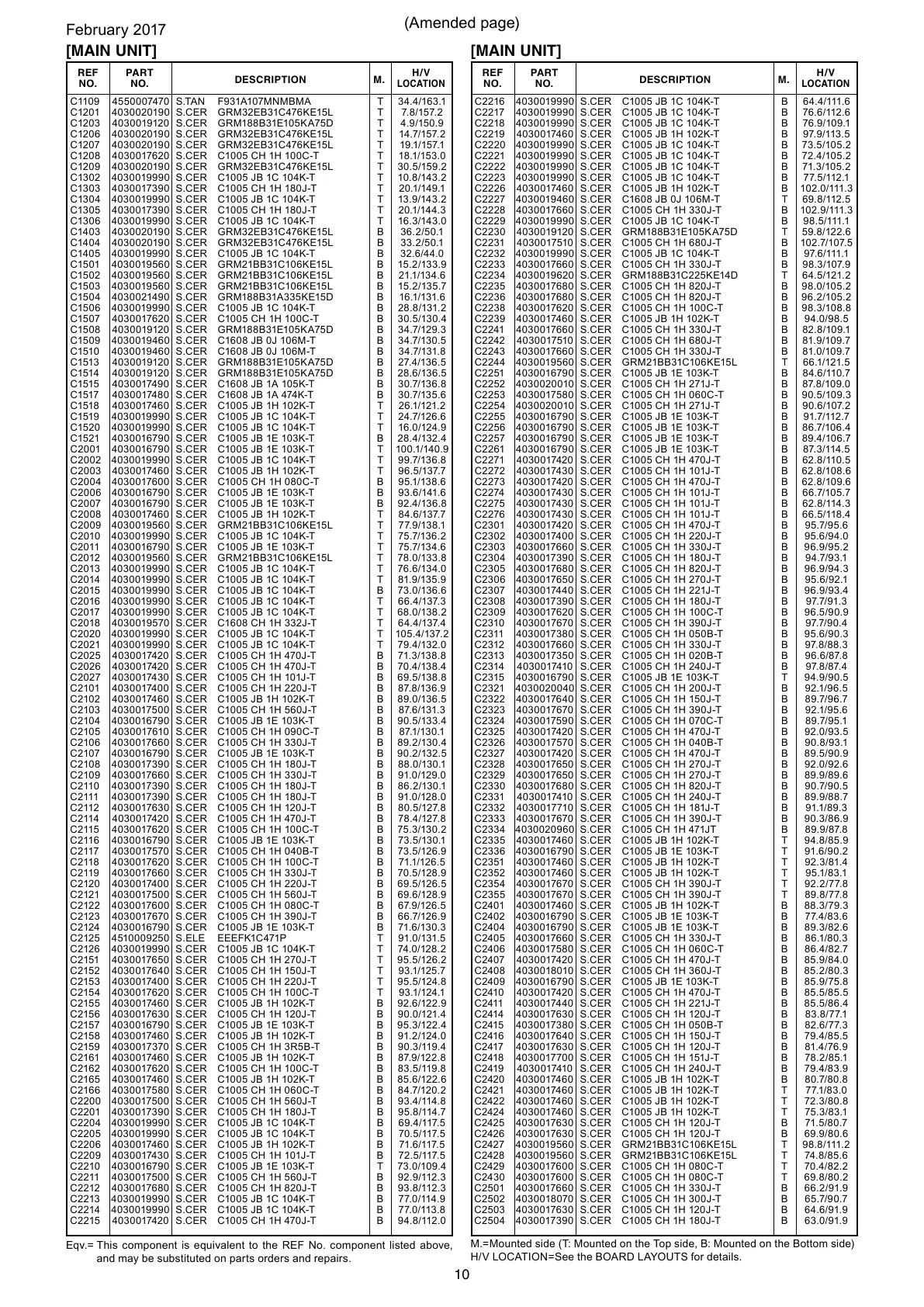

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
C1109 4550007470 S.TAN F931A107MNMBMA T 34.4/163.1
C1201 4030020190 S.CER GRM32EB31C476KE15L T 7.8/157.2
C1203 4030019120 S.CER GRM188B31E105KA75D T 4.9/150.9
C1206 4030020190 S.CER GRM32EB31C476KE15L T 14.7/157.2
C1207 4030020190 S.CER GRM32EB31C476KE15L T 19.1/157.1
C1208 4030017620 S.CER C1005 CH 1H 100C-T T 18.1/153.0
C1209 4030020190 S.CER GRM32EB31C476KE15L T 30.5/159.2
C1302 4030019990 S.CER C1005 JB 1C 104K-T T 10.8/143.2
C1303 4030017390 S.CER C1005 CH 1H 180J-T T 20.1/149.1
C1304 4030019990 S.CER C1005 JB 1C 104K-T T 13.9/143.2
C1305 4030017390 S.CER C1005 CH 1H 180J-T T 20.1/144.3
C1306 4030019990 S.CER C1005 JB 1C 104K-T T 16.3/143.0
C1403 4030020190 S.CER GRM32EB31C476KE15L B 36.2/50.1
C1404 4030020190 S.CER GRM32EB31C476KE15L B 33.2/50.1
C1405 4030019990 S.CER C1005 JB 1C 104K-T B 32.6/44.0
C1501 4030019560 S.CER GRM21BB31C106KE15L B 15.2/133.9
C1502 4030019560 S.CER GRM21BB31C106KE15L B 21.1/134.6
C1503 4030019560 S.CER GRM21BB31C106KE15L B 15.2/135.7
C1504 4030021490 S.CER GRM188B31A335KE15D B 16.1/131.6
C1506 4030019990 S.CER C1005 JB 1C 104K-T B 28.8/131.2
C1507 4030017620 S.CER C1005 CH 1H 100C-T B 30.5/130.4
C1508 4030019120 S.CER GRM188B31E105KA75D B 34.7/129.3
C1509 4030019460 S.CER C1608 JB 0J 106M-T B 34.7/130.5
C1510 4030019460 S.CER C1608 JB 0J 106M-T B 34.7/131.8
C1513 4030019120 S.CER GRM188B31E105KA75D B 27.4/136.5
C1514 4030019120 S.CER GRM188B31E105KA75D B 28.6/136.5
C1515 4030017490 S.CER C1608 JB 1A 105K-T B 30.7/136.8
C1517 4030017480 S.CER C1608 JB 1A 474K-T B 30.7/135.6
C1518 4030017460 S.CER C1005 JB 1H 102K-T T 26.1/121.2
C1519 4030019990 S.CER C1005 JB 1C 104K-T T 24.7/126.6
C1520 4030019990 S.CER C1005 JB 1C 104K-T T 16.0/124.9
C1521 4030016790 S.CER C1005 JB 1E 103K-T B 28.4/132.4
C2001 4030016790 S.CER C1005 JB 1E 103K-T T 100.1/140.9
C2002 4030019990 S.CER C1005 JB 1C 104K-T T 99.7/136.8
C2003 4030017460 S.CER C1005 JB 1H 102K-T T 96.5/137.7
C2004 4030017600 S.CER C1005 CH 1H 080C-T B 95.1/138.6
C2006 4030016790 S.CER C1005 JB 1E 103K-T B 93.6/141.6
C2007 4030016790 S.CER C1005 JB 1E 103K-T B 92.4/136.8
C2008 4030017460 S.CER C1005 JB 1H 102K-T T 84.6/137.7
C2009 4030019560 S.CER GRM21BB31C106KE15L T 77.9/138.1
C2010 4030019990 S.CER C1005 JB 1C 104K-T T 75.7/136.2
C2011 4030016790 S.CER C1005 JB 1E 103K-T T 75.7/134.6
C2012 4030019560 S.CER GRM21BB31C106KE15L T 78.0/133.8
C2013 4030019990 S.CER C1005 JB 1C 104K-T T 76.6/134.0
C2014 4030019990 S.CER C1005 JB 1C 104K-T T 81.9/135.9
C2015 4030019990 S.CER C1005 JB 1C 104K-T B 73.0/136.6
C2016 4030019990 S.CER C1005 JB 1C 104K-T T 66.4/137.3
C2017 4030019990 S.CER C1005 JB 1C 104K-T T 68.0/138.2
C2018 4030019570 S.CER C1608 CH 1H 332J-T T 64.4/137.4
C2020 4030019990 S.CER C1005 JB 1C 104K-T T 105.4/137.2
C2021 4030019990 S.CER C1005 JB 1C 104K-T T 79.4/132.0
C2025 4030017420 S.CER C1005 CH 1H 470J-T B 71.3/138.8
C2026 4030017420 S.CER C1005 CH 1H 470J-T B 70.4/138.4
C2027 4030017430 S.CER C1005 CH 1H 101J-T B 69.5/138.8
C2101 4030017400 S.CER C1005 CH 1H 220J-T B 87.8/136.9
C2102 4030017460 S.CER C1005 JB 1H 102K-T B 89.0/136.5
C2103 4030017500 S.CER C1005 CH 1H 560J-T B 87.6/131.3
C2104 4030016790 S.CER C1005 JB 1E 103K-T B 90.5/133.4
C2105 4030017610 S.CER C1005 CH 1H 090C-T B 87.1/130.1
C2106 4030017660 S.CER C1005 CH 1H 330J-T B 89.2/130.4
C2107 4030016790 S.CER C1005 JB 1E 103K-T B 90.2/132.5
C2108 4030017390 S.CER C1005 CH 1H 180J-T B 88.0/130.1
C2109 4030017660 S.CER C1005 CH 1H 330J-T B 91.0/129.0
C2110 4030017390 S.CER C1005 CH 1H 180J-T B 86.2/130.1
C2111 4030017390 S.CER C1005 CH 1H 180J-T B 91.0/128.0
C2112 4030017630 S.CER C1005 CH 1H 120J-T B 80.5/127.8
C2114 4030017420 S.CER C1005 CH 1H 470J-T B 78.4/127.8
C2115 4030017620 S.CER C1005 CH 1H 100C-T B 75.3/130.2
C2116 4030016790 S.CER C1005 JB 1E 103K-T B 73.5/130.1
C2117 4030017570 S.CER C1005 CH 1H 040B-T B 73.5/126.9
C2118 4030017620 S.CER C1005 CH 1H 100C-T B 71.1/126.5
C2119 4030017660 S.CER C1005 CH 1H 330J-T B 70.5/128.9
C2120 4030017400 S.CER C1005 CH 1H 220J-T B 69.5/126.5
C2121 4030017500 S.CER C1005 CH 1H 560J-T B 69.6/128.9
C2122 4030017600 S.CER C1005 CH 1H 080C-T B 67.9/126.5
C2123 4030017670 S.CER C1005 CH 1H 390J-T B 66.7/126.9
C2124 4030016790 S.CER C1005 JB 1E 103K-T B 71.6/130.3
C2125 4510009250 S.ELE EEEFK1C471P T 91.0/131.5
C2126 4030019990 S.CER C1005 JB 1C 104K-T T 74.0/128.2
C2151 4030017650 S.CER C1005 CH 1H 270J-T T 95.5/126.2
C2152 4030017640 S.CER C1005 CH 1H 150J-T T 93.1/125.7
C2153 4030017400 S.CER C1005 CH 1H 220J-T T 95.5/124.8
C2154 4030017620 S.CER C1005 CH 1H 100C-T T 93.1/124.1
C2155 4030017460 S.CER C1005 JB 1H 102K-T B 92.6/122.9
C2156 4030017630 S.CER C1005 CH 1H 120J-T B 90.0/121.4
C2157 4030016790 S.CER C1005 JB 1E 103K-T B 95.3/122.4
C2158 4030017460 S.CER C1005 JB 1H 102K-T B 91.2/124.0
C2159 4030017370 S.CER C1005 CH 1H 3R5B-T B 90.3/119.4
C2161 4030017460 S.CER C1005 JB 1H 102K-T B 87.9/122.8
C2162 4030017620 S.CER C1005 CH 1H 100C-T B 83.5/119.8
C2165 4030017460 S.CER C1005 JB 1H 102K-T B 85.6/122.6
C2166 4030017580 S.CER C1005 CH 1H 060C-T B 84.7/120.2
C2200 4030017500 S.CER C1005 CH 1H 560J-T B 93.4/114.8
C2201 4030017390 S.CER C1005 CH 1H 180J-T B 95.8/114.7
C2204 4030019990 S.CER C1005 JB 1C 104K-T B 69.4/117.5
C2205 4030019990 S.CER C1005 JB 1C 104K-T B 70.5/117.5
C2206 4030017460 S.CER C1005 JB 1H 102K-T B 71.6/117.5
C2209 4030017430 S.CER C1005 CH 1H 101J-T B 72.5/117.5
C2210 4030016790 S.CER C1005 JB 1E 103K-T T 73.0/109.4
C2211 4030017500 S.CER C1005 CH 1H 560J-T B 92.9/112.3
C2212 4030017680 S.CER C1005 CH 1H 820J-T B 93.8/112.3
C2213 4030019990 S.CER C1005 JB 1C 104K-T B 77.0/114.9
C2214 4030019990 S.CER C1005 JB 1C 104K-T B 77.0/113.8
C2215 4030017420 S.CER C1005 CH 1H 470J-T B 94.8/112.0
C2216 4030019990 S.CER C1005 JB 1C 104K-T B 64.4/111.6
C2217 4030019990 S.CER C1005 JB 1C 104K-T B 76.6/112.6
C2218 4030019990 S.CER C1005 JB 1C 104K-T B 76.9/109.1
C2219 4030017460 S.CER C1005 JB 1H 102K-T B 97.9/113.5
C2220 4030019990 S.CER C1005 JB 1C 104K-T B 73.5/105.2
C2221 4030019990 S.CER C1005 JB 1C 104K-T B 72.4/105.2
C2222 4030019990 S.CER C1005 JB 1C 104K-T B 71.3/105.2
C2223 4030019990 S.CER C1005 JB 1C 104K-T B 77.5/112.1
C2226 4030017460 S.CER C1005 JB 1H 102K-T B 102.0/111.3
C2227 4030019460 S.CER C1608 JB 0J 106M-T T 69.8/112.5
C2228 4030017660 S.CER C1005 CH 1H 330J-T B 102.9/111.3
C2229 4030019990 S.CER C1005 JB 1C 104K-T B 98.5/111.1
C2230 4030019120 S.CER GRM188B31E105KA75D T 59.8/122.6
C2231 4030017510 S.CER C1005 CH 1H 680J-T B 102.7/107.5
C2232 4030019990 S.CER C1005 JB 1C 104K-T B 97.6/111.1
C2233 4030017660 S.CER C1005 CH 1H 330J-T B 98.3/107.9
C2234 4030019620 S.CER GRM188B31C225KE14D T 64.5/121.2
C2235 4030017680 S.CER C1005 CH 1H 820J-T B 98.0/105.2
C2236 4030017680 S.CER C1005 CH 1H 820J-T B 96.2/105.2
C2238 4030017620 S.CER C1005 CH 1H 100C-T B 98.3/108.8
C2239 4030017460 S.CER C1005 JB 1H 102K-T B 94.0/98.5
C2241 4030017660 S.CER C1005 CH 1H 330J-T B 82.8/109.1
C2242 4030017510 S.CER C1005 CH 1H 680J-T B 81.9/109.7
C2243 4030017660 S.CER C1005 CH 1H 330J-T B 81.0/109.7
C2244 4030019560 S.CER GRM21BB31C106KE15L T 66.1/121.5
C2251 4030016790 S.CER C1005 JB 1E 103K-T B 84.6/110.7
C2252 4030020010 S.CER C1005 CH 1H 271J-T B 87.8/109.0
C2253 4030017580 S.CER C1005 CH 1H 060C-T B 90.5/109.3
C2254 4030020010 S.CER C1005 CH 1H 271J-T B 90.6/107.2
C2255 4030016790 S.CER C1005 JB 1E 103K-T B 91.7/112.7
C2256 4030016790 S.CER C1005 JB 1E 103K-T B 86.7/106.4
C2257 4030016790 S.CER C1005 JB 1E 103K-T B 89.4/106.7
C2261 4030016790 S.CER C1005 JB 1E 103K-T B 87.3/114.5
C2271 4030017420 S.CER C1005 CH 1H 470J-T B 62.8/110.5
C2272 4030017430 S.CER C1005 CH 1H 101J-T B 62.8/108.6
C2273 4030017420 S.CER C1005 CH 1H 470J-T B 62.8/109.6
C2274 4030017430 S.CER C1005 CH 1H 101J-T B 66.7/105.7
C2275 4030017430 S.CER C1005 CH 1H 101J-T B 62.8/114.3
C2276 4030017430 S.CER C1005 CH 1H 101J-T B 66.5/118.4
C2301 4030017420 S.CER C1005 CH 1H 470J-T B 95.7/95.6
C2302 4030017400 S.CER C1005 CH 1H 220J-T B 95.6/94.0
C2303 4030017660 S.CER C1005 CH 1H 330J-T B 96.9/95.2
C2304 4030017390 S.CER C1005 CH 1H 180J-T B 94.7/93.1
C2305 4030017680 S.CER C1005 CH 1H 820J-T B 96.9/94.3
C2306 4030017650 S.CER C1005 CH 1H 270J-T B 95.6/92.1
C2307 4030017440 S.CER C1005 CH 1H 221J-T B 96.9/93.4
C2308 4030017390 S.CER C1005 CH 1H 180J-T B 97.7/91.3
C2309 4030017620 S.CER C1005 CH 1H 100C-T B 96.5/90.9
C2310 4030017670 S.CER C1005 CH 1H 390J-T B 97.7/90.4
C2311 4030017380 S.CER C1005 CH 1H 050B-T B 95.6/90.3
C2312 4030017660 S.CER C1005 CH 1H 330J-T B 97.8/88.3
C2313 4030017350 S.CER C1005 CH 1H 020B-T B 96.6/87.8
C2314 4030017410 S.CER C1005 CH 1H 240J-T B 97.8/87.4
C2315 4030016790 S.CER C1005 JB 1E 103K-T T 94.9/90.5
C2321 4030020040 S.CER C1005 CH 1H 200J-T B 92.1/96.5
C2322 4030017640 S.CER C1005 CH 1H 150J-T B 89.7/96.7
C2323 4030017670 S.CER C1005 CH 1H 390J-T B 92.1/95.6
C2324 4030017590 S.CER C1005 CH 1H 070C-T B 89.7/95.1
C2325 4030017420 S.CER C1005 CH 1H 470J-T B 92.0/93.5
C2326 4030017570 S.CER C1005 CH 1H 040B-T B 90.8/93.1
C2327 4030017420 S.CER C1005 CH 1H 470J-T B 89.5/90.9
C2328 4030017650 S.CER C1005 CH 1H 270J-T B 92.0/92.6
C2329 4030017650 S.CER C1005 CH 1H 270J-T B 89.9/89.6
C2330 4030017680 S.CER C1005 CH 1H 820J-T B 90.7/90.5
C2331 4030017410 S.CER C1005 CH 1H 240J-T B 89.9/88.7
C2332 4030017710 S.CER C1005 CH 1H 181J-T B 91.1/89.3
C2333 4030017670 S.CER C1005 CH 1H 390J-T B 90.3/86.9
C2334 4030020960 S.CER C1005 CH 1H 471JT B 89.9/87.8
C2335 4030017460 S.CER C1005 JB 1H 102K-T T 94.8/85.9
C2336 4030016790 S.CER C1005 JB 1E 103K-T T 91.6/90.2
C2351 4030017460 S.CER C1005 JB 1H 102K-T T 92.3/81.4
C2352 4030017460 S.CER C1005 JB 1H 102K-T T 95.1/83.1
C2354 4030017670 S.CER C1005 CH 1H 390J-T T 92.2/77.8
C2355 4030017670 S.CER C1005 CH 1H 390J-T T 89.8/77.8
C2401 4030017460 S.CER C1005 JB 1H 102K-T B 88.3/79.3
C2402 4030016790 S.CER C1005 JB 1E 103K-T B 77.4/83.6
C2404 4030016790 S.CER C1005 JB 1E 103K-T B 89.3/82.6
C2405 4030017660 S.CER C1005 CH 1H 330J-T B 86.1/80.3
C2406 4030017580 S.CER C1005 CH 1H 060C-T B 86.4/82.7
C2407 4030017420 S.CER C1005 CH 1H 470J-T B 85.9/84.0
C2408 4030018010 S.CER C1005 CH 1H 360J-T B 85.2/80.3
C2409 4030016790 S.CER C1005 JB 1E 103K-T B 85.9/75.8
C2410 4030017420 S.CER C1005 CH 1H 470J-T B 85.5/85.5
C2411 4030017440 S.CER C1005 CH 1H 221J-T B 85.5/86.4
C2414 4030017630 S.CER C1005 CH 1H 120J-T B 83.8/77.1
C2415 4030017380 S.CER C1005 CH 1H 050B-T B 82.6/77.3
C2416 4030017640 S.CER C1005 CH 1H 150J-T B 79.4/85.5
C2417 4030017630 S.CER C1005 CH 1H 120J-T B 81.4/76.9
C2418 4030017700 S.CER C1005 CH 1H 151J-T B 78.2/85.1
C2419 4030017410 S.CER C1005 CH 1H 240J-T B 79.4/83.9
C2420 4030017460 S.CER C1005 JB 1H 102K-T B 80.7/80.8
C2421 4030017460 S.CER C1005 JB 1H 102K-T T 77.1/83.0
C2422 4030017460 S.CER C1005 JB 1H 102K-T T 72.3/80.8
C2424 4030017460 S.CER C1005 JB 1H 102K-T T 75.3/83.1
C2425 4030017630 S.CER C1005 CH 1H 120J-T B 71.5/80.7
C2426 4030017630 S.CER C1005 CH 1H 120J-T B 69.9/80.6
C2427 4030019560 S.CER GRM21BB31C106KE15L T 98.8/111.2
C2428 4030019560 S.CER GRM21BB31C106KE15L T 74.8/85.6
C2429 4030017600 S.CER C1005 CH 1H 080C-T T 70.4/82.2
C2430 4030017600 S.CER C1005 CH 1H 080C-T T 69.8/80.2
C2501 4030017660 S.CER C1005 CH 1H 330J-T B 66.2/91.9
C2502 4030018070 S.CER C1005 CH 1H 300J-T B 65.7/90.7
C2503 4030017630 S.CER C1005 CH 1H 120J-T B 64.6/91.9
C2504 4030017390 S.CER C1005 CH 1H 180J-T B 63.0/91.9
(Amended page)
February 2017
To Next Page
Loading...
