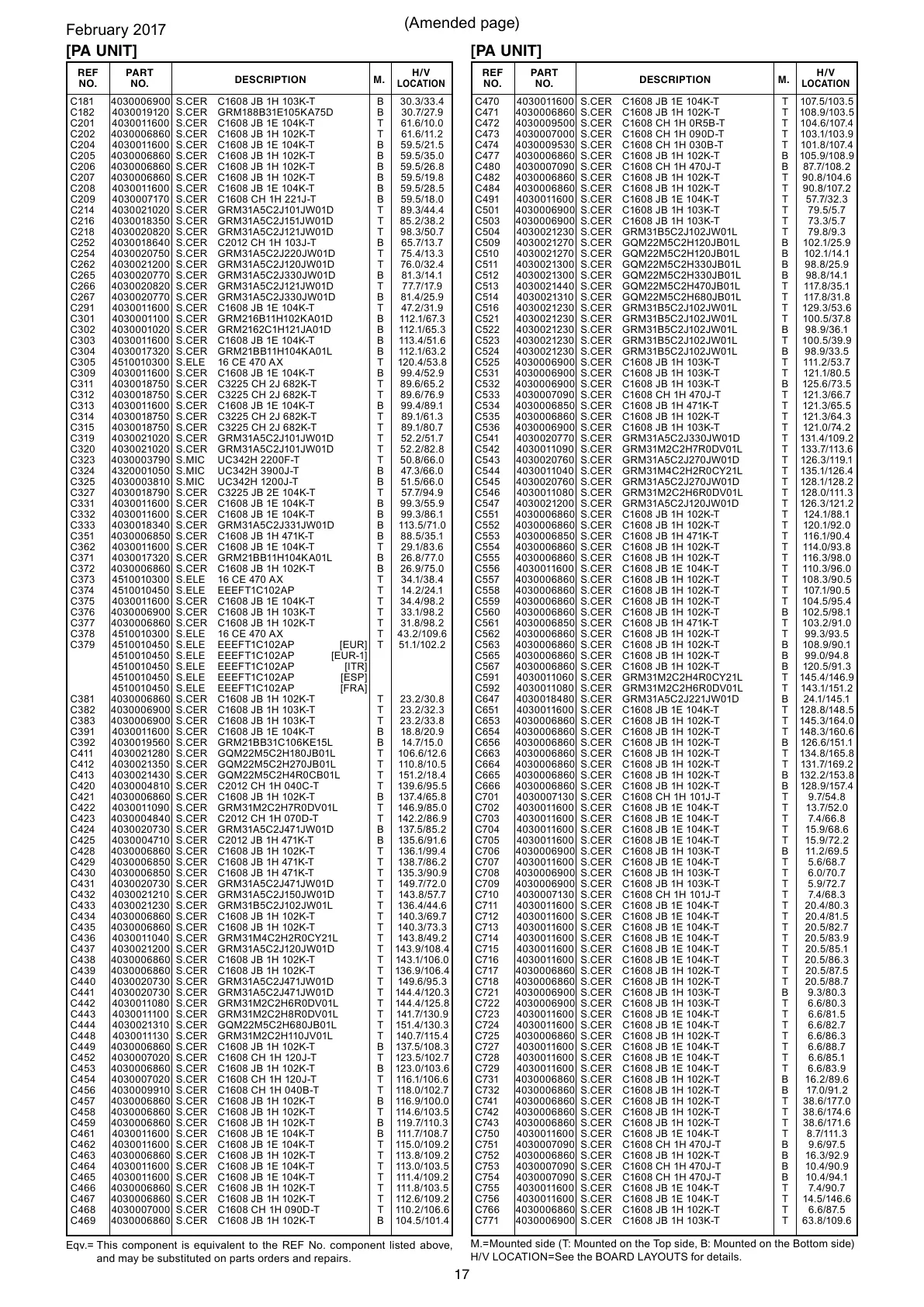

17
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[PA UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
C181 4030006900 S.CER C1608 JB 1H 103K-T B 30.3/33.4
C182 4030019120 S.CER GRM188B31E105KA75D B 30.7/27.9
C201 4030011600 S.CER C1608 JB 1E 104K-T T 61.6/10.0
C202 4030006860 S.CER C1608 JB 1H 102K-T T 61.6/11.2
C204 4030011600 S.CER C1608 JB 1E 104K-T B 59.5/21.5
C205 4030006860 S.CER C1608 JB 1H 102K-T B 59.5/35.0
C206 4030006860 S.CER C1608 JB 1H 102K-T B 59.5/26.8
C207 4030006860 S.CER C1608 JB 1H 102K-T B 59.5/19.8
C208 4030011600 S.CER C1608 JB 1E 104K-T B 59.5/28.5
C209 4030007170 S.CER C1608 CH 1H 221J-T B 59.5/18.0
C214 4030021020 S.CER GRM31A5C2J101JW01D T 89.3/44.4
C216 4030018350 S.CER GRM31A5C2J151JW01D T 85.2/38.2
C218 4030020820 S.CER GRM31A5C2J121JW01D T 98.3/50.7
C252 4030018640 S.CER C2012 CH 1H 103J-T B 65.7/13.7
C254 4030020750 S.CER GRM31A5C2J220JW01D T 75.4/13.3
C262 4030021200 S.CER GRM31A5C2J120JW01D T 76.0/32.4
C265 4030020770 S.CER GRM31A5C2J330JW01D B 81.3/14.1
C266 4030020820 S.CER GRM31A5C2J121JW01D T 77.7/17.9
C267 4030020770 S.CER GRM31A5C2J330JW01D B 81.4/25.9
C291 4030011600 S.CER C1608 JB 1E 104K-T T 47.2/31.9
C301 4030001100 S.CER GRM216B11H102KA01D B 112.1/67.3
C302 4030001020 S.CER GRM2162C1H121JA01D B 112.1/65.3
C303 4030011600 S.CER C1608 JB 1E 104K-T B 113.4/51.6
C304 4030017320 S.CER GRM21BB11H104KA01L B 112.1/63.2
C305 4510010300 S.ELE 16 CE 470 AX T 120.4/53.8
C309 4030011600 S.CER C1608 JB 1E 104K-T B 99.4/52.9
C311 4030018750 S.CER C3225 CH 2J 682K-T T 89.6/65.2
C312 4030018750 S.CER C3225 CH 2J 682K-T T 89.6/76.9
C313 4030011600 S.CER C1608 JB 1E 104K-T B 99.4/89.1
C314 4030018750 S.CER C3225 CH 2J 682K-T T 89.1/61.3
C315 4030018750 S.CER C3225 CH 2J 682K-T T 89.1/80.7
C319 4030021020 S.CER GRM31A5C2J101JW01D T 52.2/51.7
C320 4030021020 S.CER GRM31A5C2J101JW01D T 52.2/82.8
C323 4030003790 S.MIC UC342H 2200F-T T 50.8/66.0
C324 4320001050 S.MIC UC342H 3900J-T B 47.3/66.0
C325 4030003810 S.MIC UC342H 1200J-T B 51.5/66.0
C327 4030018790 S.CER C3225 JB 2E 104K-T T 57.7/94.9
C331 4030011600 S.CER C1608 JB 1E 104K-T B 99.3/55.9
C332 4030011600 S.CER C1608 JB 1E 104K-T B 99.3/86.1
C333 4030018340 S.CER GRM31A5C2J331JW01D B 113.5/71.0
C351 4030006850 S.CER C1608 JB 1H 471K-T B 88.5/35.1
C362 4030011600 S.CER C1608 JB 1E 104K-T T 29.1/83.6
C371 4030017320 S.CER GRM21BB11H104KA01L B 26.8/77.0
C372 4030006860 S.CER C1608 JB 1H 102K-T B 26.9/75.0
C373 4510010300 S.ELE 16 CE 470 AX T 34.1/38.4
C374 4510010450 S.ELE EEEFT1C102AP T 14.2/24.1
C375 4030011600 S.CER C1608 JB 1E 104K-T T 34.4/98.2
C376 4030006900 S.CER C1608 JB 1H 103K-T T 33.1/98.2
C377 4030006860 S.CER C1608 JB 1H 102K-T T 31.8/98.2
C378 4510010300 S.ELE 16 CE 470 AX T 43.2/109.6
C379 4510010450 S.ELE EEEFT1C102AP [EUR] T 51.1/102.2
4510010450 S.ELE EEEFT1C102AP [EUR-1]
4510010450 S.ELE EEEFT1C102AP [ITR]
4510010450 S.ELE EEEFT1C102AP [ESP]
4510010450 S.ELE EEEFT1C102AP [FRA]
C381 4030006860 S.CER C1608 JB 1H 102K-T T 23.2/30.8
C382 4030006900 S.CER C1608 JB 1H 103K-T T 23.2/32.3
C383 4030006900 S.CER C1608 JB 1H 103K-T T 23.2/33.8
C391 4030011600 S.CER C1608 JB 1E 104K-T B 18.8/20.9
C392 4030019560 S.CER GRM21BB31C106KE15L B 14.7/15.0
C411 4030021280 S.CER GQM22M5C2H180JB01L T 106.6/12.6
C412 4030021350 S.CER GQM22M5C2H270JB01L T 110.8/10.5
C413 4030021430 S.CER GQM22M5C2H4R0CB01L T 151.2/18.4
C420 4030004810 S.CER C2012 CH 1H 040C-T T 139.6/95.5
C421 4030006860 S.CER C1608 JB 1H 102K-T B 137.4/65.8
C422 4030011090 S.CER GRM31M2C2H7R0DV01L T 146.9/85.0
C423 4030004840 S.CER C2012 CH 1H 070D-T T 142.2/86.9
C424 4030020730 S.CER GRM31A5C2J471JW01D B 137.5/85.2
C425 4030004710 S.CER C2012 JB 1H 471K-T B 135.6/91.6
C428 4030006860 S.CER C1608 JB 1H 102K-T T 136.1/99.4
C429 4030006850 S.CER C1608 JB 1H 471K-T T 138.7/86.2
C430 4030006850 S.CER C1608 JB 1H 471K-T T 135.3/90.9
C431 4030020730 S.CER GRM31A5C2J471JW01D T 149.7/72.0
C432 4030021210 S.CER GRM31A5C2J150JW01D T 143.8/57.7
C433 4030021230 S.CER GRM31B5C2J102JW01L T 136.4/44.6
C434 4030006860 S.CER C1608 JB 1H 102K-T T 140.3/69.7
C435 4030006860 S.CER C1608 JB 1H 102K-T T 140.3/73.3
C436 4030011040 S.CER GRM31M4C2H2R0CY21L T 143.8/49.2
C437 4030021200 S.CER GRM31A5C2J120JW01D T 143.9/108.4
C438 4030006860 S.CER C1608 JB 1H 102K-T T 143.1/106.0
C439 4030006860 S.CER C1608 JB 1H 102K-T T 136.9/106.4
C440 4030020730 S.CER GRM31A5C2J471JW01D T 149.6/95.3
C441 4030020730 S.CER GRM31A5C2J471JW01D T 144.4/120.3
C442 4030011080 S.CER GRM31M2C2H6R0DV01L T 144.4/125.8
C443 4030011100 S.CER GRM31M2C2H8R0DV01L T 141.7/130.9
C444 4030021310 S.CER GQM22M5C2H680JB01L T 151.4/130.3
C448 4030011130 S.CER GRM31M2C2H110JV01L T 140.7/115.4
C449 4030006860 S.CER C1608 JB 1H 102K-T B 137.5/108.3
C452 4030007020 S.CER C1608 CH 1H 120J-T T 123.5/102.7
C453 4030006860 S.CER C1608 JB 1H 102K-T B 123.0/103.6
C454 4030007020 S.CER C1608 CH 1H 120J-T T 116.1/106.6
C456 4030009910 S.CER C1608 CH 1H 040B-T T 118.0/102.7
C457 4030006860 S.CER C1608 JB 1H 102K-T B 116.9/100.0
C458 4030006860 S.CER C1608 JB 1H 102K-T T 114.6/103.5
C459 4030006860 S.CER C1608 JB 1H 102K-T B 119.7/110.3
C461 4030011600 S.CER C1608 JB 1E 104K-T B 111.7/108.7
C462 4030011600 S.CER C1608 JB 1E 104K-T T 115.0/109.2
C463 4030006860 S.CER C1608 JB 1H 102K-T T 113.8/109.2
C464 4030011600 S.CER C1608 JB 1E 104K-T T 113.0/103.5
C465 4030011600 S.CER C1608 JB 1E 104K-T T 111.4/109.2
C466 4030006860 S.CER C1608 JB 1H 102K-T T 111.8/103.5
C467 4030006860 S.CER C1608 JB 1H 102K-T T 112.6/109.2
C468 4030007000 S.CER C1608 CH 1H 090D-T T 110.2/106.6
C469 4030006860 S.CER C1608 JB 1H 102K-T B 104.5/101.4
(Amended page)
February 2017
[PA UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
C470 4030011600 S.CER C1608 JB 1E 104K-T T 107.5/103.5
C471 4030006860 S.CER C1608 JB 1H 102K-T T 108.9/103.5
C472 4030009500 S.CER C1608 CH 1H 0R5B-T T 104.6/107.4
C473 4030007000 S.CER C1608 CH 1H 090D-T T 103.1/103.9
C474 4030009530 S.CER C1608 CH 1H 030B-T T 101.8/107.4
C477 4030006860 S.CER C1608 JB 1H 102K-T B 105.9/108.9
C480 4030007090 S.CER C1608 CH 1H 470J-T B 87.7/108.2
C482 4030006860 S.CER C1608 JB 1H 102K-T T 90.8/104.6
C484 4030006860 S.CER C1608 JB 1H 102K-T T 90.8/107.2
C491 4030011600 S.CER C1608 JB 1E 104K-T T 57.7/32.3
C501 4030006900 S.CER C1608 JB 1H 103K-T T 79.5/5.7
C503 4030006900 S.CER C1608 JB 1H 103K-T T 73.3/5.7
C504 4030021230 S.CER GRM31B5C2J102JW01L T 79.8/9.3
C509 4030021270 S.CER GQM22M5C2H120JB01L B 102.1/25.9
C510 4030021270 S.CER GQM22M5C2H120JB01L B 102.1/14.1
C511 4030021300 S.CER GQM22M5C2H330JB01L B 98.8/25.9
C512 4030021300 S.CER GQM22M5C2H330JB01L B 98.8/14.1
C513 4030021440 S.CER GQM22M5C2H470JB01L T 117.8/35.1
C514 4030021310 S.CER GQM22M5C2H680JB01L T 117.8/31.8
C516 4030021230 S.CER GRM31B5C2J102JW01L T 129.3/53.6
C521 4030021230 S.CER GRM31B5C2J102JW01L T 100.5/37.8
C522 4030021230 S.CER GRM31B5C2J102JW01L B 98.9/36.1
C523 4030021230 S.CER GRM31B5C2J102JW01L T 100.5/39.9
C524 4030021230 S.CER GRM31B5C2J102JW01L B 98.9/33.5
C525 4030006900 S.CER C1608 JB 1H 103K-T T 111.2/53.7
C531 4030006900 S.CER C1608 JB 1H 103K-T T 121.1/80.5
C532 4030006900 S.CER C1608 JB 1H 103K-T B 125.6/73.5
C533 4030007090 S.CER C1608 CH 1H 470J-T T 121.3/66.7
C534 4030006850 S.CER C1608 JB 1H 471K-T T 121.3/65.5
C535 4030006860 S.CER C1608 JB 1H 102K-T T 121.3/64.3
C536 4030006900 S.CER C1608 JB 1H 103K-T T 121.0/74.2
C541 4030020770 S.CER GRM31A5C2J330JW01D T 131.4/109.2
C542 4030011090 S.CER GRM31M2C2H7R0DV01L T 133.7/113.6
C543 4030020760 S.CER GRM31A5C2J270JW01D T 126.3/119.1
C544 4030011040 S.CER GRM31M4C2H2R0CY21L T 135.1/126.4
C545 4030020760 S.CER GRM31A5C2J270JW01D T 128.1/128.2
C546 4030011080 S.CER GRM31M2C2H6R0DV01L T 128.0/111.3
C547 4030021200 S.CER GRM31A5C2J120JW01D T 126.3/121.2
C551 4030006860 S.CER C1608 JB 1H 102K-T T 124.1/88.1
C552 4030006860 S.CER C1608 JB 1H 102K-T T 120.1/92.0
C553 4030006850 S.CER C1608 JB 1H 471K-T T 116.1/90.4
C554 4030006860 S.CER C1608 JB 1H 102K-T T 114.0/93.8
C555 4030006860 S.CER C1608 JB 1H 102K-T T 116.3/98.0
C556 4030011600 S.CER C1608 JB 1E 104K-T T 110.3/96.0
C557 4030006860 S.CER C1608 JB 1H 102K-T T 108.3/90.5
C558 4030006860 S.CER C1608 JB 1H 102K-T T 107.1/90.5
C559 4030006860 S.CER C1608 JB 1H 102K-T T 104.5/95.4
C560 4030006860 S.CER C1608 JB 1H 102K-T B 102.5/98.1
C561 4030006850 S.CER C1608 JB 1H 471K-T T 103.2/91.0
C562 4030006860 S.CER C1608 JB 1H 102K-T T 99.3/93.5
C563 4030006860 S.CER C1608 JB 1H 102K-T B 108.9/90.1
C565 4030006860 S.CER C1608 JB 1H 102K-T B 99.0/94.8
C567 4030006860 S.CER C1608 JB 1H 102K-T B 120.5/91.3
C591 4030011060 S.CER GRM31M2C2H4R0CY21L T 145.4/146.9
C592 4030011080 S.CER GRM31M2C2H6R0DV01L T 143.1/151.2
C647 4030018480 S.CER GRM31A5C2J221JW01D B 24.1/145.1
C651 4030011600 S.CER C1608 JB 1E 104K-T T 128.8/148.5
C653 4030006860 S.CER C1608 JB 1H 102K-T T 145.3/164.0
C654 4030006860 S.CER C1608 JB 1H 102K-T T 148.3/160.6
C656 4030006860 S.CER C1608 JB 1H 102K-T B 126.6/151.1
C663 4030006860 S.CER C1608 JB 1H 102K-T T 134.8/165.8
C664 4030006860 S.CER C1608 JB 1H 102K-T T 131.7/169.2
C665 4030006860 S.CER C1608 JB 1H 102K-T B 132.2/153.8
C666 4030006860 S.CER C1608 JB 1H 102K-T B 128.9/157.4
C701 4030007130 S.CER C1608 CH 1H 101J-T T 9.7/54.8
C702 4030011600 S.CER C1608 JB 1E 104K-T T 13.7/52.0
C703 4030011600 S.CER C1608 JB 1E 104K-T T 7.4/66.8
C704 4030011600 S.CER C1608 JB 1E 104K-T T 15.9/68.6
C705 4030011600 S.CER C1608 JB 1E 104K-T T 15.9/72.2
C706 4030006900 S.CER C1608 JB 1H 103K-T B 11.2/69.5
C707 4030011600 S.CER C1608 JB 1E 104K-T T 5.6/68.7
C708 4030006900 S.CER C1608 JB 1H 103K-T T 6.0/70.7
C709 4030006900 S.CER C1608 JB 1H 103K-T T 5.9/72.7
C710 4030007130 S.CER C1608 CH 1H 101J-T T 7.4/68.3
C711 4030011600 S.CER C1608 JB 1E 104K-T T 20.4/80.3
C712 4030011600 S.CER C1608 JB 1E 104K-T T 20.4/81.5
C713 4030011600 S.CER C1608 JB 1E 104K-T T 20.5/82.7
C714 4030011600 S.CER C1608 JB 1E 104K-T T 20.5/83.9
C715 4030011600 S.CER C1608 JB 1E 104K-T T 20.5/85.1
C716 4030011600 S.CER C1608 JB 1E 104K-T T 20.5/86.3
C717 4030006860 S.CER C1608 JB 1H 102K-T T 20.5/87.5
C718 4030006860 S.CER C1608 JB 1H 102K-T T 20.5/88.7
C721 4030006900 S.CER C1608 JB 1H 103K-T B 9.3/80.3
C722 4030006900 S.CER C1608 JB 1H 103K-T T 6.6/80.3
C723 4030011600 S.CER C1608 JB 1E 104K-T T 6.6/81.5
C724 4030011600 S.CER C1608 JB 1E 104K-T T 6.6/82.7
C725 4030006860 S.CER C1608 JB 1H 102K-T T 6.6/86.3
C727 4030011600 S.CER C1608 JB 1E 104K-T T 6.6/88.7
C728 4030011600 S.CER C1608 JB 1E 104K-T T 6.6/85.1
C729 4030011600 S.CER C1608 JB 1E 104K-T T 6.6/83.9
C731 4030006860 S.CER C1608 JB 1H 102K-T B 16.2/89.6
C732 4030006860 S.CER C1608 JB 1H 102K-T B 17.0/91.2
C741 4030006860 S.CER C1608 JB 1H 102K-T T 38.6/177.0
C742 4030006860 S.CER C1608 JB 1H 102K-T T 38.6/174.6
C743 4030006860 S.CER C1608 JB 1H 102K-T T 38.6/171.6
C750 4030011600 S.CER C1608 JB 1E 104K-T T 8.7/111.3
C751 4030007090 S.CER C1608 CH 1H 470J-T B 9.6/97.5
C752 4030006860 S.CER C1608 JB 1H 102K-T B 16.3/92.9
C753 4030007090 S.CER C1608 CH 1H 470J-T B 10.4/90.9
C754 4030007090 S.CER C1608 CH 1H 470J-T B 10.4/94.1
C755 4030011600 S.CER C1608 JB 1E 104K-T T 7.4/90.7
C756 4030011600 S.CER C1608 JB 1E 104K-T T 14.5/146.6
C766 4030006860 S.CER C1608 JB 1H 102K-T T 6.6/87.5
C771 4030006900 S.CER C1608 JB 1H 103K-T T 63.8/109.6
To Next Page
Loading...
