20
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.

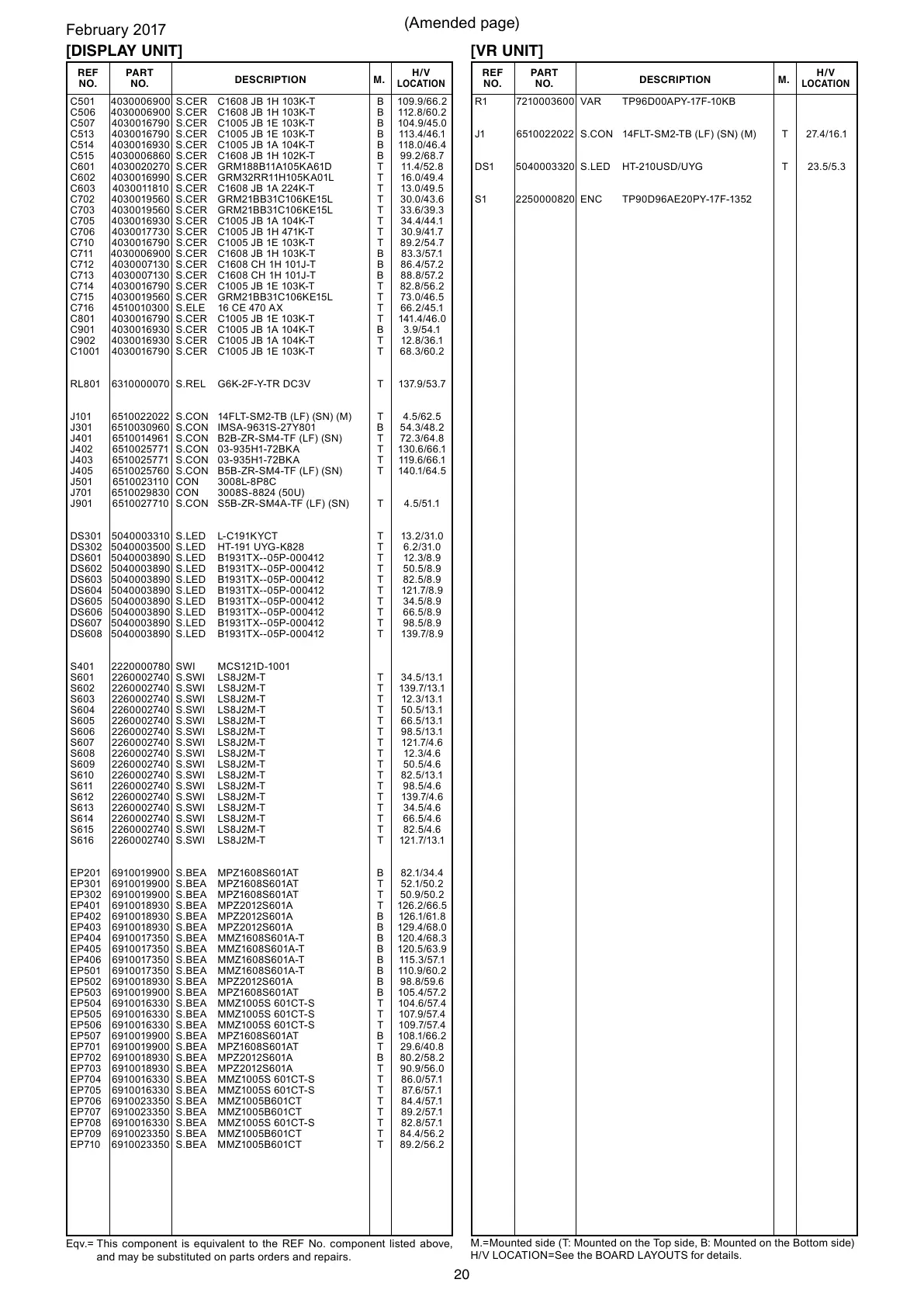

[DISPLAY UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[VR UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
(Amended page)
February 2017
C501 4030006900 S.CER C1608 JB 1H 103K-T B 109.9/66.2
C506 4030006900 S.CER C1608 JB 1H 103K-T B 112.8/60.2
C507 4030016790 S.CER C1005 JB 1E 103K-T B 104.9/45.0
C513 4030016790 S.CER C1005 JB 1E 103K-T B 113.4/46.1
C514 4030016930 S.CER C1005 JB 1A 104K-T B 118.0/46.4
C515 4030006860 S.CER C1608 JB 1H 102K-T B 99.2/68.7
C601 4030020270 S.CER GRM188B11A105KA61D T 11.4/52.8
C602 4030016990 S.CER GRM32RR11H105KA01L T 16.0/49.4
C603 4030011810 S.CER C1608 JB 1A 224K-T T 13.0/49.5
C702 4030019560 S.CER GRM21BB31C106KE15L T 30.0/43.6
C703 4030019560 S.CER GRM21BB31C106KE15L T 33.6/39.3
C705 4030016930 S.CER C1005 JB 1A 104K-T T 34.4/44.1
C706 4030017730 S.CER C1005 JB 1H 471K-T T 30.9/41.7
C710 4030016790 S.CER C1005 JB 1E 103K-T T 89.2/54.7
C711 4030006900 S.CER C1608 JB 1H 103K-T B 83.3/57.1
C712 4030007130 S.CER C1608 CH 1H 101J-T B 86.4/57.2
C713 4030007130 S.CER C1608 CH 1H 101J-T B 88.8/57.2
C714 4030016790 S.CER C1005 JB 1E 103K-T T 82.8/56.2
C715 4030019560 S.CER GRM21BB31C106KE15L T 73.0/46.5
C716 4510010300 S.ELE 16 CE 470 AX T 66.2/45.1
C801 4030016790 S.CER C1005 JB 1E 103K-T T 141.4/46.0
C901 4030016930 S.CER C1005 JB 1A 104K-T B 3.9/54.1
C902 4030016930 S.CER C1005 JB 1A 104K-T T 12.8/36.1
C1001 4030016790 S.CER C1005 JB 1E 103K-T T 68.3/60.2
RL801 6310000070 S.REL G6K-2F-Y-TR DC3V T 137.9/53.7
J101 6510022022 S.CON 14FLT-SM2-TB (LF) (SN) (M) T 4.5/62.5
J301 6510030960 S.CON IMSA-9631S-27Y801 B 54.3/48.2
J401 6510014961 S.CON B2B-ZR-SM4-TF (LF) (SN) T 72.3/64.8
J402 6510025771 S.CON 03-935H1-72BKA T 130.6/66.1
J403 6510025771 S.CON 03-935H1-72BKA T 119.6/66.1
J405 6510025760 S.CON B5B-ZR-SM4-TF (LF) (SN) T 140.1/64.5
J501 6510023110 CON 3008L-8P8C
J701 6510029830 CON 3008S-8824 (50U)
J901 6510027710 S.CON S5B-ZR-SM4A-TF (LF) (SN) T 4.5/51.1
DS301 5040003310 S.LED L-C191KYCT T 13.2/31.0
DS302 5040003500 S.LED HT-191 UYG-K828 T 6.2/31.0
DS601 5040003890 S.LED B1931TX--05P-000412 T 12.3/8.9
DS602 5040003890 S.LED B1931TX--05P-000412 T 50.5/8.9
DS603 5040003890 S.LED B1931TX--05P-000412 T 82.5/8.9
DS604 5040003890 S.LED B1931TX--05P-000412 T 121.7/8.9
DS605 5040003890 S.LED B1931TX--05P-000412 T 34.5/8.9
DS606 5040003890 S.LED B1931TX--05P-000412 T 66.5/8.9
DS607 5040003890 S.LED B1931TX--05P-000412 T 98.5/8.9
DS608 5040003890 S.LED B1931TX--05P-000412 T 139.7/8.9
S401 2220000780 SWI MCS121D-1001
S601 2260002740 S.SWI LS8J2M-T T 34.5/13.1
S602 2260002740 S.SWI LS8J2M-T T 139.7/13.1
S603 2260002740 S.SWI LS8J2M-T T 12.3/13.1
S604 2260002740 S.SWI LS8J2M-T T 50.5/13.1
S605 2260002740 S.SWI LS8J2M-T T 66.5/13.1
S606 2260002740 S.SWI LS8J2M-T T 98.5/13.1
S607 2260002740 S.SWI LS8J2M-T T 121.7/4.6
S608 2260002740 S.SWI LS8J2M-T T 12.3/4.6
S609 2260002740 S.SWI LS8J2M-T T 50.5/4.6
S610 2260002740 S.SWI LS8J2M-T T 82.5/13.1
S611 2260002740 S.SWI LS8J2M-T T 98.5/4.6
S612 2260002740 S.SWI LS8J2M-T T 139.7/4.6
S613 2260002740 S.SWI LS8J2M-T T 34.5/4.6
S614 2260002740 S.SWI LS8J2M-T T 66.5/4.6
S615 2260002740 S.SWI LS8J2M-T T 82.5/4.6
S616 2260002740 S.SWI LS8J2M-T T 121.7/13.1
EP201 6910019900 S.BEA MPZ1608S601AT B 82.1/34.4
EP301 6910019900 S.BEA MPZ1608S601AT T 52.1/50.2
EP302 6910019900 S.BEA MPZ1608S601AT T 50.9/50.2
EP401 6910018930 S.BEA MPZ2012S601A T 126.2/66.5
EP402 6910018930 S.BEA MPZ2012S601A B 126.1/61.8
EP403 6910018930 S.BEA MPZ2012S601A B 129.4/68.0
EP404 6910017350 S.BEA MMZ1608S601A-T B 120.4/68.3
EP405 6910017350 S.BEA MMZ1608S601A-T B 120.5/63.9
EP406 6910017350 S.BEA MMZ1608S601A-T B 115.3/57.1
EP501 6910017350 S.BEA MMZ1608S601A-T B 110.9/60.2
EP502 6910018930 S.BEA MPZ2012S601A B 98.8/59.6
EP503 6910019900 S.BEA MPZ1608S601AT B 105.4/57.2
EP504 6910016330 S.BEA MMZ1005S 601CT-S T 104.6/57.4
EP505 6910016330 S.BEA MMZ1005S 601CT-S T 107.9/57.4
EP506 6910016330 S.BEA MMZ1005S 601CT-S T 109.7/57.4
EP507 6910019900 S.BEA MPZ1608S601AT B 108.1/66.2
EP701 6910019900 S.BEA MPZ1608S601AT T 29.6/40.8
EP702 6910018930 S.BEA MPZ2012S601A B 80.2/58.2
EP703 6910018930 S.BEA MPZ2012S601A T 90.9/56.0
EP704 6910016330 S.BEA MMZ1005S 601CT-S T 86.0/57.1
EP705 6910016330 S.BEA MMZ1005S 601CT-S T 87.6/57.1
EP706 6910023350 S.BEA MMZ1005B601CT T 84.4/57.1
EP707 6910023350 S.BEA MMZ1005B601CT T 89.2/57.1
EP708 6910016330 S.BEA MMZ1005S 601CT-S T 82.8/57.1
EP709 6910023350 S.BEA MMZ1005B601CT T 84.4/56.2
EP710 6910023350 S.BEA MMZ1005B601CT T 89.2/56.2
R1 7210003600 VAR TP96D00APY-17F-10KB
J1 6510022022 S.CON 14FLT-SM2-TB (LF) (SN) (M) T 27.4/16.1
DS1 5040003320 S.LED HT-210USD/UYG T 23.5/5.3
S1 2250000820 ENC TP90D96AE20PY-17F-1352
To Next Page
