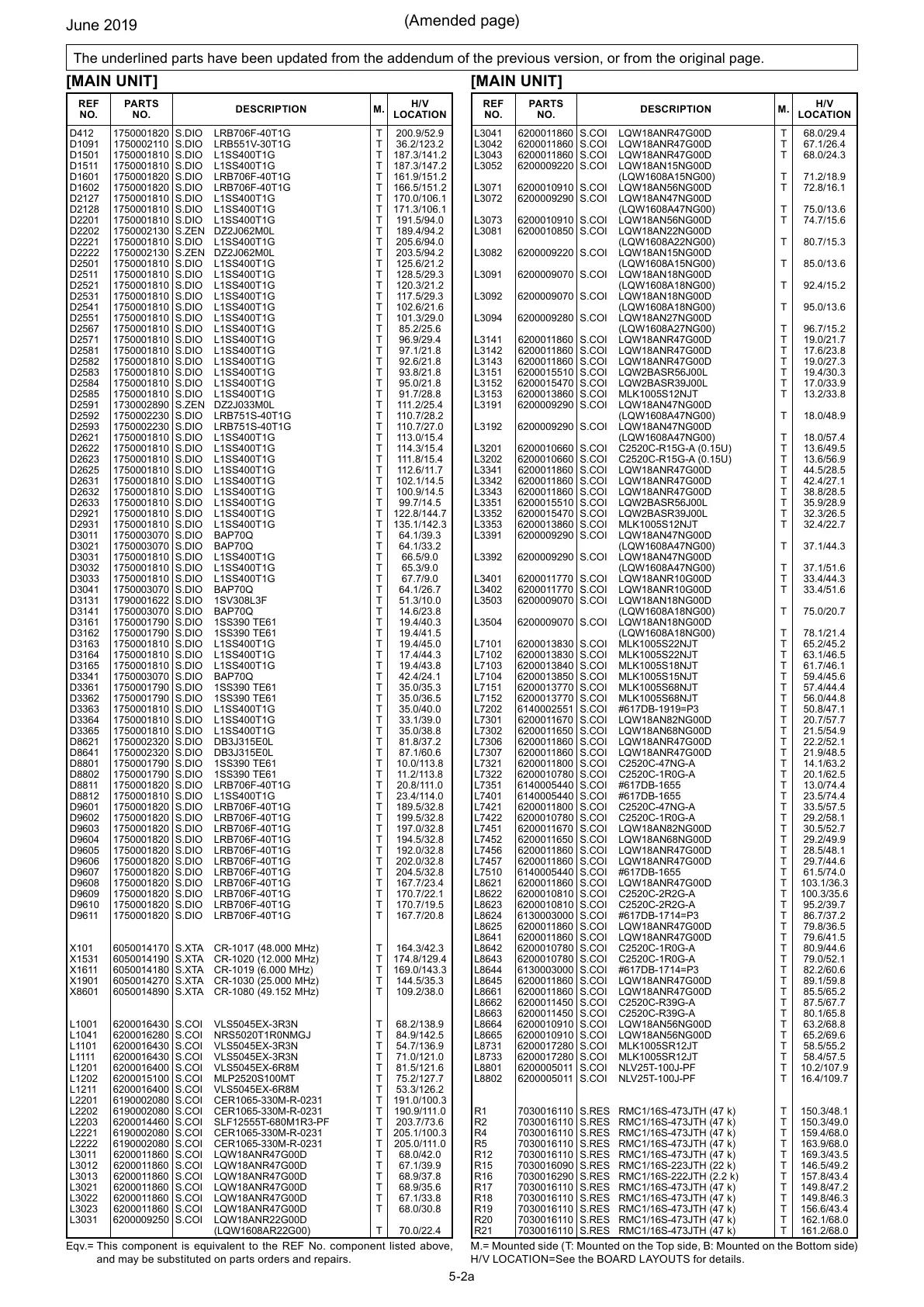

The underlined parts have been updated from the addendum of the previous version, or from the original page.
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=
Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
REF
NO.
PARTS
NO.
DESCRIPTION M
.
H/V
LOCATION
REF
NO.
PARTS
NO.
DESCRIPTION M
.
H/V
LOCATION
5-2a
(Amended page)
June 2019
[MAIN UNIT] [MAIN UNIT]
D412 1750001820 S.DIO LRB706F-40T1G T 200.9/52.9
D1091 1750002110 S.DIO LRB551V-30T1G T 36.2/123.2
D1501 1750001810 S.DIO L1SS400T1G T 187.3/141.2
D1511 1750001810 S.DIO L1SS400T1G T 187.3/147.2
D1601 1750001820 S.DIO LRB706F-40T1G T 161.9/151.2
D1602 1750001820 S.DIO LRB706F-40T1G T 166.5/151.2
D2127 1750001810 S.DIO L1SS400T1G T 170.0/106.1
D2128 1750001810 S.DIO L1SS400T1G T 171.3/106.1
D2201 1750001810 S.DIO L1SS400T1G T 191.5/94.0
D2202 1750002130 S.ZEN DZ2J062M0L T 189.4/94.2
D2221 1750001810 S.DIO L1SS400T1G T 205.6/94.0
D2222 1750002130 S.ZEN DZ2J062M0L T 203.5/94.2
D2501 1750001810 S.DIO L1SS400T1G T 125.6/21.2
D2511 1750001810 S.DIO L1SS400T1G T 128.5/29.3
D2521 1750001810 S.DIO L1SS400T1G T 120.3/21.2
D2531 1750001810 S.DIO L1SS400T1G T 117.5/29.3
D2541 1750001810 S.DIO L1SS400T1G T 102.6/21.6
D2551 1750001810 S.DIO L1SS400T1G T 101.3/29.0
D2567 1750001810 S.DIO L1SS400T1G T 85.2/25.6
D2571 1750001810 S.DIO L1SS400T1G T 96.9/29.4
D2581 1750001810 S.DIO L1SS400T1G T 97.1/21.8
D2582 1750001810 S.DIO L1SS400T1G T 92.6/21.8
D2583 1750001810 S.DIO L1SS400T1G T 93.8/21.8
D2584 1750001810 S.DIO L1SS400T1G T 95.0/21.8
D2585 1750001810 S.DIO L1SS400T1G T 91.7/28.8
D2591 1730002890 S.ZEN DZ2J033M0L T 111.2/25.4
D2592 1750002230 S.DIO LRB751S-40T1G T 110.7/28.2
D2593 1750002230 S.DIO LRB751S-40T1G T 110.7/27.0
D2621 1750001810 S.DIO L1SS400T1G T 113.0/15.4
D2622 1750001810 S.DIO L1SS400T1G T 114.3/15.4
D2623 1750001810 S.DIO L1SS400T1G T 111.8/15.4
D2625 1750001810 S.DIO L1SS400T1G T 112.6/11.7
D2631 1750001810 S.DIO L1SS400T1G T 102.1/14.5
D2632 1750001810 S.DIO L1SS400T1G T 100.9/14.5
D2633 1750001810 S.DIO L1SS400T1G T 99.7/14.5
D2921 1750001810 S.DIO L1SS400T1G T 122.8/144.7
D2931 1750001810 S.DIO L1SS400T1G T 135.1/142.3
D3011 1750003070 S.DIO BAP70Q T 64.1/39.3
D3021 1750003070 S.DIO BAP70Q T 64.1/33.2
D3031 1750001810 S.DIO L1SS400T1G T 66.5/9.0
D3032 1750001810 S.DIO L1SS400T1G T 65.3/9.0
D3033 1750001810 S.DIO L1SS400T1G T 67.7/9.0
D3041 1750003070 S.DIO BAP70Q T 64.1/26.7
D3131 1790001622 S.DIO 1SV308L3F T 51.3/10.0
D3141 1750003070 S.DIO BAP70Q T 14.6/23.8
D3161 1750001790 S.DIO 1SS390 TE61 T 19.4/40.3
D3162 1750001790 S.DIO 1SS390 TE61 T 19.4/41.5
D3163 1750001810 S.DIO L1SS400T1G T 19.4/45.0
D3164 1750001810 S.DIO L1SS400T1G T 17.4/44.3
D3165 1750001810 S.DIO L1SS400T1G T 19.4/43.8
D3341 1750003070 S.DIO BAP70Q T 42.4/24.1
D3361 1750001790 S.DIO 1SS390 TE61 T 35.0/35.3
D3362 1750001790 S.DIO 1SS390 TE61 T 35.0/36.5
D3363 1750001810 S.DIO L1SS400T1G T 35.0/40.0
D3364 1750001810 S.DIO L1SS400T1G T 33.1/39.0
D3365 1750001810 S.DIO L1SS400T1G T 35.0/38.8
D8621 1750002320 S.DIO DB3J315E0L T 81.8/37.2
D8641 1750002320 S.DIO DB3J315E0L T 87.1/60.6
D8801 1750001790 S.DIO 1SS390 TE61 T 10.0/113.8
D8802 1750001790 S.DIO 1SS390 TE61 T 11.2/113.8
D8811 1750001820 S.DIO LRB706F-40T1G T 20.8/111.0
D8812 1750001810 S.DIO L1SS400T1G T 23.4/114.0
D9601 1750001820 S.DIO LRB706F-40T1G T 189.5/32.8
D9602 1750001820 S.DIO LRB706F-40T1G T 199.5/32.8
D9603 1750001820 S.DIO LRB706F-40T1G T 197.0/32.8
D9604 1750001820 S.DIO LRB706F-40T1G T 194.5/32.8
D9605 1750001820 S.DIO LRB706F-40T1G T 192.0/32.8
D9606 1750001820 S.DIO LRB706F-40T1G T 202.0/32.8
D9607 1750001820 S.DIO LRB706F-40T1G T 204.5/32.8
D9608 1750001820 S.DIO LRB706F-40T1G T 167.7/23.4
D9609 1750001820 S.DIO LRB706F-40T1G T 170.7/22.1
D9610 1750001820 S.DIO LRB706F-40T1G T 170.7/19.5
D9611 1750001820 S.DIO LRB706F-40T1G T 167.7/20.8
X101 6050014170 S.XTA CR-1017 (48.000 MHz) T 164.3/42.3
X1531 6050014190 S.XTA CR-1020 (12.000 MHz) T 174.8/129.4
X1611 6050014180 S.XTA CR-1019 (6.000 MHz) T 169.0/143.3
X1901 6050014270 S.XTA CR-1030 (25.000 MHz) T 144.5/35.3
X8601 6050014890 S.XTA CR-1080 (49.152 MHz) T 109.2/38.0
L1001 6200016430 S.COI VLS5045EX-3R3N T 68.2/138.9
L1041 6200016280 S.COI NRS5020T1R0NMGJ T 84.9/142.5
L1101 6200016430 S.COI VLS5045EX-3R3N T 54.7/136.9
L1111 6200016430 S.COI VLS5045EX-3R3N T 71.0/121.0
L1201 6200016400 S.COI VLS5045EX-6R8M T 81.5/121.6
L1202 6200015100 S.COI MLP2520S100MT T 75.2/127.7
L1211 6200016400 S.COI VLS5045EX-6R8M T 53.3/126.2
L2201 6190002080 S.COI CER1065-330M-R-0231 T 191.0/100.3
L2202 6190002080 S.COI CER1065-330M-R-0231 T 190.9/111.0
L2203 6200014460 S.COI SLF12555T-680M1R3-PF T 203.7/73.6
L2221 6190002080 S.COI CER1065-330M-R-0231 T 205.1/100.3
L2222 6190002080 S.COI CER1065-330M-R-0231 T 205.0/111.0
L3011 6200011860 S.COI LQW18ANR47G00D T 68.0/42.0
L3012 6200011860 S.COI LQW18ANR47G00D T 67.1/39.9
L3013 6200011860 S.COI LQW18ANR47G00D T 68.9/37.8
L3021 6200011860 S.COI LQW18ANR47G00D T 68.9/35.6
L3022 6200011860 S.COI LQW18ANR47G00D T 67.1/33.8
L3023 6200011860 S.COI LQW18ANR47G00D T 68.0/30.8
L3031 6200009250 S.COI LQW18ANR22G00D
(LQW1608AR22G00) T 70.0/22.4
L3041 6200011860 S.COI LQW18ANR47G00D T 68.0/29.4
L3042 6200011860 S.COI LQW18ANR47G00D T 67.1/26.4
L3043 6200011860 S.COI LQW18ANR47G00D T 68.0/24.3
L3052 6200009220 S.COI LQW18AN15NG00D
(LQW1608A15NG00) T 71.2/18.9
L3071 6200010910 S.COI LQW18AN56NG00D T 72.8/16.1
L3072 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 75.0/13.6
L3073 6200010910 S.COI LQW18AN56NG00D T 74.7/15.6
L3081 6200010850 S.COI LQW18AN22NG00D
(LQW1608A22NG00) T 80.7/15.3
L3082 6200009220 S.COI LQW18AN15NG00D
(LQW1608A15NG00) T 85.0/13.6
L3091 6200009070 S.COI LQW18AN18NG00D
(LQW1608A18NG00) T 92.4/15.2
L3092 6200009070 S.COI LQW18AN18NG00D
(LQW1608A18NG00) T 95.0/13.6
L3094 6200009280 S.COI LQW18AN27NG00D
(LQW1608A27NG00) T 96.7/15.2
L3141 6200011860 S.COI LQW18ANR47G00D T 19.0/21.7
L3142 6200011860 S.COI LQW18ANR47G00D T 17.6/23.8
L3143 6200011860 S.COI LQW18ANR47G00D T 19.0/27.3
L3151 6200015510 S.COI LQW2BASR56J00L T 19.4/30.3
L3152 6200015470 S.COI LQW2BASR39J00L T 17.0/33.9
L3153 6200013860 S.COI MLK1005S12NJT T 13.2/33.8
L3191 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 18.0/48.9
L3192 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 18.0/57.4
L3201 6200010660 S.COI C2520C-R15G-A (0.15U) T 13.6/49.5
L3202 6200010660 S.COI C2520C-R15G-A (0.15U) T 13.6/56.9
L3341 6200011860 S.COI LQW18ANR47G00D T 44.5/28.5
L3342 6200011860 S.COI LQW18ANR47G00D T 42.4/27.1
L3343 6200011860 S.COI LQW18ANR47G00D T 38.8/28.5
L3351 6200015510 S.COI LQW2BASR56J00L T 35.9/28.9
L3352 6200015470 S.COI LQW2BASR39J00L T 32.3/26.5
L3353 6200013860 S.COI MLK1005S12NJT T 32.4/22.7
L3391 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 37.1/44.3
L3392 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 37.1/51.6
L3401 6200011770 S.COI LQW18ANR10G00D T 33.4/44.3
L3402 6200011770 S.COI LQW18ANR10G00D T 33.4/51.6
L3503 6200009070 S.COI LQW18AN18NG00D
(LQW1608A18NG00) T 75.0/20.7
L3504 6200009070 S.COI LQW18AN18NG00D
(LQW1608A18NG00) T 78.1/21.4
L7101 6200013830 S.COI MLK1005S22NJT T 65.2/45.2
L7102 6200013830 S.COI MLK1005S22NJT T 63.1/46.5
L7103 6200013840 S.COI MLK1005S18NJT T 61.7/46.1
L7104 6200013850 S.COI MLK1005S15NJT T 59.4/45.6
L7151 6200013770 S.COI MLK1005S68NJT T 57.4/44.4
L7152 6200013770 S.COI MLK1005S68NJT T 56.0/44.8
L7202 6140002551 S.COI #617DB-1919=P3 T 50.8/47.1
L7301 6200011670 S.COI LQW18AN82NG00D T 20.7/57.7
L7302 6200011650 S.COI LQW18AN68NG00D T 21.5/54.9
L7306 6200011860 S.COI LQW18ANR47G00D T 22.2/52.1
L7307 6200011860 S.COI LQW18ANR47G00D T 21.9/48.5
L7321 6200011800 S.COI C2520C-47NG-A T 14.1/63.2
L7322 6200010780 S.COI C2520C-1R0G-A T 20.1/62.5
L7351 6140005440 S.COI #617DB-1655 T 13.0/74.4
L7401 6140005440 S.COI #617DB-1655 T 23.5/74.4
L7421 6200011800 S.COI C2520C-47NG-A T 33.5/57.5
L7422 6200010780 S.COI C2520C-1R0G-A T 29.2/58.1
L7451 6200011670 S.COI LQW18AN82NG00D T 30.5/52.7
L7452 6200011650 S.COI LQW18AN68NG00D T 29.2/49.9
L7456 6200011860 S.COI LQW18ANR47G00D T 28.5/48.1
L7457 6200011860 S.COI LQW18ANR47G00D T 29.7/44.6
L7510 6140005440 S.COI #617DB-1655 T 61.5/74.0
L8621 6200011860 S.COI LQW18ANR47G00D T 103.1/36.3
L8622 6200010810 S.COI C2520C-2R2G-A T 100.3/35.6
L8623 6200010810 S.COI C2520C-2R2G-A T 95.2/39.7
L8624 6130003000 S.COI #617DB-1714=P3 T 86.7/37.2
L8625 6200011860 S.COI LQW18ANR47G00D T 79.8/36.5
L8641 6200011860 S.COI LQW18ANR47G00D T 79.6/41.5
L8642 6200010780 S.COI C2520C-1R0G-A T 80.9/44.6
L8643 6200010780 S.COI C2520C-1R0G-A T 79.0/52.1
L8644 6130003000 S.COI #617DB-1714=P3 T 82.2/60.6
L8645 6200011860 S.COI LQW18ANR47G00D T 89.1/59.8
L8661 6200011860 S.COI LQW18ANR47G00D T 85.5/65.2
L8662 6200011450 S.COI C2520C-R39G-A T 87.5/67.7
L8663 6200011450 S.COI C2520C-R39G-A T 80.1/65.8
L8664 6200010910 S.COI LQW18AN56NG00D T 63.2/68.8
L8665 6200010910 S.COI LQW18AN56NG00D T 65.2/69.6
L8731 6200017280 S.COI MLK1005SR12JT T 58.5/55.2
L8733 6200017280 S.COI MLK1005SR12JT T 58.4/57.5
L8801 6200005011 S.COI NLV25T-100J-PF T 10.2/107.9
L8802 6200005011 S.COI NLV25T-100J-PF T 16.4/109.7
R1 7030016110 S.RES RMC1/16S-473JTH (47 k) T 150.3/48.1
R2 7030016110 S.RES RMC1/16S-473JTH (47 k) T 150.3/49.0
R4 7030016110 S.RES RMC1/16S-473JTH (47 k) T 159.4/68.0
R5 7030016110 S.RES RMC1/16S-473JTH (47 k) T 163.9/68.0
R12 7030016110 S.RES RMC1/16S-473JTH (47 k) T 169.3/43.5
R15 7030016090 S.RES RMC1/16S-223JTH (22 k) T 146.5/49.2
R16 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 157.8/43.4
R17 7030016110 S.RES RMC1/16S-473JTH (47 k) T 149.8/47.2
R18 7030016110 S.RES RMC1/16S-473JTH (47 k) T 149.8/46.3
R19 7030016110 S.RES RMC1/16S-473JTH (47 k) T 156.6/43.4
R20 7030016110 S.RES RMC1/16S-473JTH (47 k) T 162.1/68.0
R21 7030016110 S.RES RMC1/16S-473JTH (47 k) T 161.2/68.0
