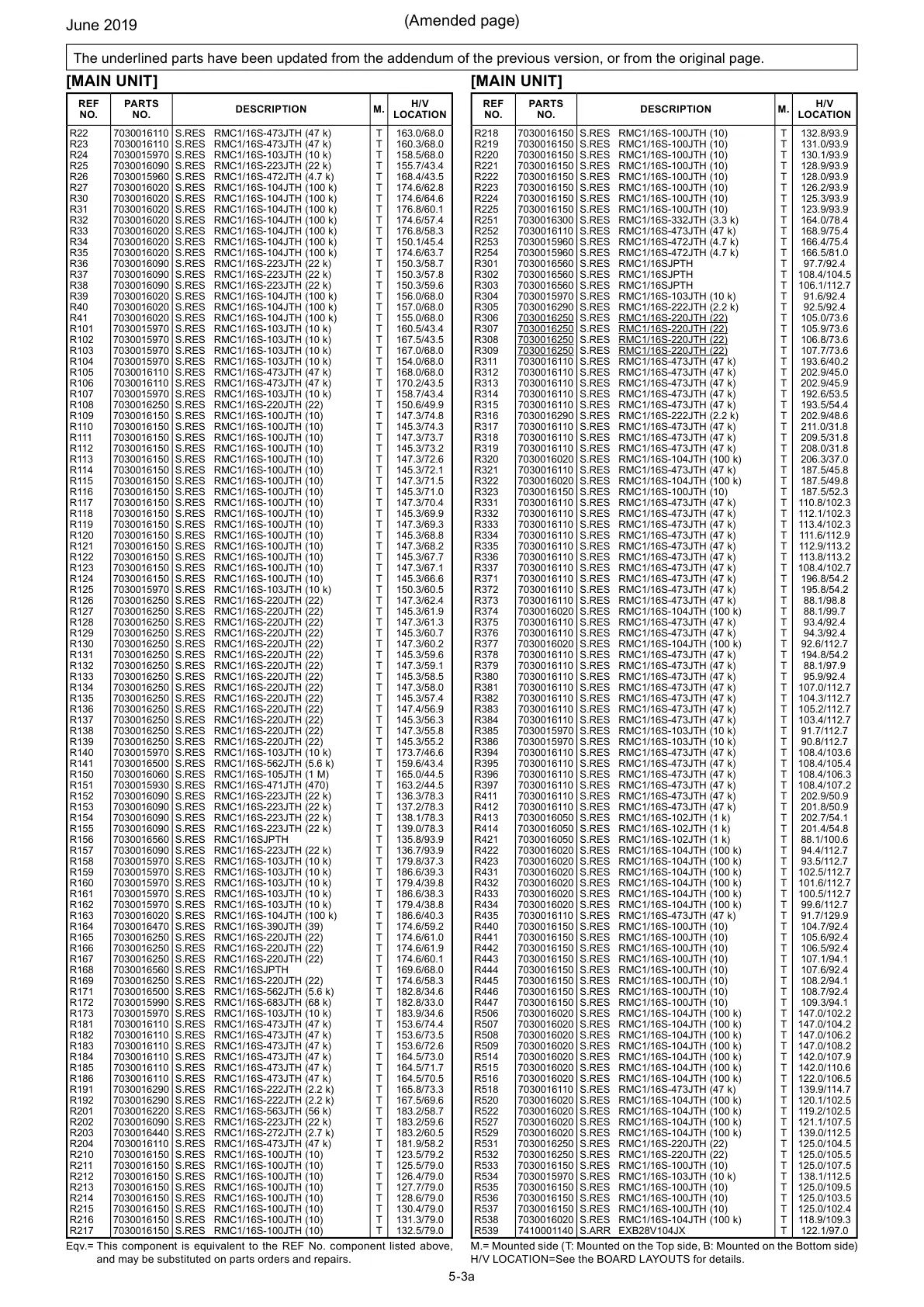

Icom IC-9700 Service Manual Addendum

The underlined parts have been updated from the addendum of the previous version, or from the original page.
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
REF
NO.
PARTS
NO.
DESCRIPTION M
.
H/V
LOCATION
REF
NO.
PARTS
NO.
DESCRIPTION M
.
H/V
LOCATION
5-3a
(Amended page)
June 2019
[MAIN UNIT] [MAIN UNIT]
R22 7030016110 S.RES RMC1/16S-473JTH (47 k) T 163.0/68.0
R23 7030016110 S.RES RMC1/16S-473JTH (47 k) T 160.3/68.0
R24 7030015970 S.RES RMC1/16S-103JTH (10 k) T 158.5/68.0
R25 7030016090 S.RES RMC1/16S-223JTH (22 k) T 155.7/43.4
R26 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 168.4/43.5
R27 7030016020 S.RES RMC1/16S-104JTH (100 k) T 174.6/62.8
R30 7030016020 S.RES RMC1/16S-104JTH (100 k) T 174.6/64.6
R31 7030016020 S.RES RMC1/16S-104JTH (100 k) T 176.8/60.1
R32 7030016020 S.RES RMC1/16S-104JTH (100 k) T 174.6/57.4
R33 7030016020 S.RES RMC1/16S-104JTH (100 k) T 176.8/58.3
R34 7030016020 S.RES RMC1/16S-104JTH (100 k) T 150.1/45.4
R35 7030016020 S.RES RMC1/16S-104JTH (100 k) T 174.6/63.7
R36 7030016090 S.RES RMC1/16S-223JTH (22 k) T 150.3/58.7
R37 7030016090 S.RES RMC1/16S-223JTH (22 k) T 150.3/57.8
R38 7030016090 S.RES RMC1/16S-223JTH (22 k) T 150.3/59.6
R39 7030016020 S.RES RMC1/16S-104JTH (100 k) T 156.0/68.0
R40 7030016020 S.RES RMC1/16S-104JTH (100 k) T 157.0/68.0
R41 7030016020 S.RES RMC1/16S-104JTH (100 k) T 155.0/68.0
R101 7030015970 S.RES RMC1/16S-103JTH (10 k) T 160.5/43.4
R102 7030015970 S.RES RMC1/16S-103JTH (10 k) T 167.5/43.5
R103 7030015970 S.RES RMC1/16S-103JTH (10 k) T 167.0/68.0
R104 7030015970 S.RES RMC1/16S-103JTH (10 k) T 154.0/68.0
R105 7030016110 S.RES RMC1/16S-473JTH (47 k) T 168.0/68.0
R106 7030016110 S.RES RMC1/16S-473JTH (47 k) T 170.2/43.5
R107 7030015970 S.RES RMC1/16S-103JTH (10 k) T 158.7/43.4
R108 7030016250 S.RES RMC1/16S-220JTH (22) T 150.6/49.9
R109 7030016150 S.RES RMC1/16S-100JTH (10) T 147.3/74.8
R110 7030016150 S.RES RMC1/16S-100JTH (10) T 145.3/74.3
R111 7030016150 S.RES RMC1/16S-100JTH (10) T 147.3/73.7
R112 7030016150 S.RES RMC1/16S-100JTH (10) T 145.3/73.2
R113 7030016150 S.RES RMC1/16S-100JTH (10) T 147.3/72.6
R114 7030016150 S.RES RMC1/16S-100JTH (10) T 145.3/72.1
R115 7030016150 S.RES RMC1/16S-100JTH (10) T 147.3/71.5
R116 7030016150 S.RES RMC1/16S-100JTH (10) T 145.3/71.0
R117 7030016150 S.RES RMC1/16S-100JTH (10) T 147.3/70.4
R118 7030016150 S.RES RMC1/16S-100JTH (10) T 145.3/69.9
R119 7030016150 S.RES RMC1/16S-100JTH (10) T 147.3/69.3
R120 7030016150 S.RES RMC1/16S-100JTH (10) T 145.3/68.8
R121 7030016150 S.RES RMC1/16S-100JTH (10) T 147.3/68.2
R122 7030016150 S.RES RMC1/16S-100JTH (10) T 145.3/67.7
R123 7030016150 S.RES RMC1/16S-100JTH (10) T 147.3/67.1
R124 7030016150 S.RES RMC1/16S-100JTH (10) T 145.3/66.6
R125 7030015970 S.RES RMC1/16S-103JTH (10 k) T 150.3/60.5
R126 7030016250 S.RES RMC1/16S-220JTH (22) T 147.3/62.4
R127 7030016250 S.RES RMC1/16S-220JTH (22) T 145.3/61.9
R128 7030016250 S.RES RMC1/16S-220JTH (22) T 147.3/61.3
R129 7030016250 S.RES RMC1/16S-220JTH (22) T 145.3/60.7
R130 7030016250 S.RES RMC1/16S-220JTH (22) T 147.3/60.2
R131 7030016250 S.RES RMC1/16S-220JTH (22) T 145.3/59.6
R132 7030016250 S.RES RMC1/16S-220JTH (22) T 147.3/59.1
R133 7030016250 S.RES RMC1/16S-220JTH (22) T 145.3/58.5
R134 7030016250 S.RES RMC1/16S-220JTH (22) T 147.3/58.0
R135 7030016250 S.RES RMC1/16S-220JTH (22) T 145.3/57.4
R136 7030016250 S.RES RMC1/16S-220JTH (22) T 147.4/56.9
R137 7030016250 S.RES RMC1/16S-220JTH (22) T 145.3/56.3
R138 7030016250 S.RES RMC1/16S-220JTH (22) T 147.3/55.8
R139 7030016250 S.RES RMC1/16S-220JTH (22) T 145.3/55.2
R140 7030015970 S.RES RMC1/16S-103JTH (10 k) T 173.7/46.6
R141 7030016500 S.RES RMC1/16S-562JTH (5.6 k) T 159.6/43.4
R150 7030016060 S.RES RMC1/16S-105JTH (1 M) T 165.0/44.5
R151 7030015930 S.RES RMC1/16S-471JTH (470) T 163.2/44.5
R152 7030016090 S.RES RMC1/16S-223JTH (22 k) T 136.3/78.3
R153 7030016090 S.RES RMC1/16S-223JTH (22 k) T 137.2/78.3
R154 7030016090 S.RES RMC1/16S-223JTH (22 k) T 138.1/78.3
R155 7030016090 S.RES RMC1/16S-223JTH (22 k) T 139.0/78.3
R156 7030016560 S.RES RMC1/16SJPTH T 135.8/93.9
R157 7030016090 S.RES RMC1/16S-223JTH (22 k) T 136.7/93.9
R158 7030015970 S.RES RMC1/16S-103JTH (10 k) T 179.8/37.3
R159 7030015970 S.RES RMC1/16S-103JTH (10 k) T 186.6/39.3
R160 7030015970 S.RES RMC1/16S-103JTH (10 k) T 179.4/39.8
R161 7030015970 S.RES RMC1/16S-103JTH (10 k) T 186.6/38.3
R162 7030015970 S.RES RMC1/16S-103JTH (10 k) T 179.4/38.8
R163 7030016020 S.RES RMC1/16S-104JTH (100 k) T 186.6/40.3
R164 7030016470 S.RES RMC1/16S-390JTH (39) T 174.6/59.2
R165 7030016250 S.RES RMC1/16S-220JTH (22) T 174.6/61.0
R166 7030016250 S.RES RMC1/16S-220JTH (22) T 174.6/61.9
R167 7030016250 S.RES RMC1/16S-220JTH (22) T 174.6/60.1
R168 7030016560 S.RES RMC1/16SJPTH T 169.6/68.0
R169 7030016250 S.RES RMC1/16S-220JTH (22) T 174.6/58.3
R171 7030016500 S.RES RMC1/16S-562JTH (5.6 k) T 182.8/34.6
R172 7030015990 S.RES RMC1/16S-683JTH (68 k) T 182.8/33.0
R173 7030015970 S.RES RMC1/16S-103JTH (10 k) T 183.9/34.6
R181 7030016110 S.RES RMC1/16S-473JTH (47 k) T 153.6/74.4
R182 7030016110 S.RES RMC1/16S-473JTH (47 k) T 153.6/73.5
R183 7030016110 S.RES RMC1/16S-473JTH (47 k) T 153.6/72.6
R184 7030016110 S.RES RMC1/16S-473JTH (47 k) T 164.5/73.0
R185 7030016110 S.RES RMC1/16S-473JTH (47 k) T 164.5/71.7
R186 7030016110 S.RES RMC1/16S-473JTH (47 k) T 164.5/70.5
R191 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 165.8/73.3
R192 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 167.5/69.6
R201 7030016220 S.RES RMC1/16S-563JTH (56 k) T 183.2/58.7
R202 7030016090 S.RES RMC1/16S-223JTH (22 k) T 183.2/59.6
R203 7030016440 S.RES RMC1/16S-272JTH (2.7 k) T 183.2/60.5
R204 7030016110 S.RES RMC1/16S-473JTH (47 k) T 181.9/58.2
R210 7030016150 S.RES RMC1/16S-100JTH (10) T 123.5/79.2
R211 7030016150 S.RES RMC1/16S-100JTH (10) T 125.5/79.0
R212 7030016150 S.RES RMC1/16S-100JTH (10) T 126.4/79.0
R213 7030016150 S.RES RMC1/16S-100JTH (10) T 127.7/79.0
R214 7030016150 S.RES RMC1/16S-100JTH (10) T 128.6/79.0
R215 7030016150 S.RES RMC1/16S-100JTH (10) T 130.4/79.0
R216 7030016150 S.RES RMC1/16S-100JTH (10) T 131.3/79.0
R217 7030016150 S.RES RMC1/16S-100JTH (10) T 132.5/79.0
R218 7030016150 S.RES RMC1/16S-100JTH (10) T 132.8/93.9
R219 7030016150 S.RES RMC1/16S-100JTH (10) T 131.0/93.9
R220 7030016150 S.RES RMC1/16S-100JTH (10) T 130.1/93.9
R221 7030016150 S.RES RMC1/16S-100JTH (10) T 128.9/93.9
R222 7030016150 S.RES RMC1/16S-100JTH (10) T 128.0/93.9
R223 7030016150 S.RES RMC1/16S-100JTH (10) T 126.2/93.9
R224 7030016150 S.RES RMC1/16S-100JTH (10) T 125.3/93.9
R225 7030016150 S.RES RMC1/16S-100JTH (10) T 123.9/93.9
R251 7030016300 S.RES RMC1/16S-332JTH (3.3 k) T 164.0/78.4
R252 7030016110 S.RES RMC1/16S-473JTH (47 k) T 168.9/75.4
R253 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 166.4/75.4
R254 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 166.5/81.0
R301 7030016560 S.RES RMC1/16SJPTH T 97.7/92.4
R302 7030016560 S.RES RMC1/16SJPTH T 108.4/104.5
R303 7030016560 S.RES RMC1/16SJPTH T 106.1/112.7
R304 7030015970 S.RES RMC1/16S-103JTH (10 k) T 91.6/92.4
R305 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 92.5/92.4
R306 7030016250 S.RES RMC1/16S-220JTH (22) T 105.0/73.6
R307 7030016250 S.RES RMC1/16S-220JTH (22) T 105.9/73.6
R308 7030016250 S.RES RMC1/16S-220JTH (22) T 106.8/73.6
R309 7030016250 S.RES RMC1/16S-220JTH (22) T 107.7/73.6
R311 7030016110 S.RES RMC1/16S-473JTH (47 k) T 193.6/40.2
R312 7030016110 S.RES RMC1/16S-473JTH (47 k) T 202.9/45.0
R313 7030016110 S.RES RMC1/16S-473JTH (47 k) T 202.9/45.9
R314 7030016110 S.RES RMC1/16S-473JTH (47 k) T 192.6/53.5
R315 7030016110 S.RES RMC1/16S-473JTH (47 k) T 193.5/54.4
R316 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 202.9/48.6
R317 7030016110 S.RES RMC1/16S-473JTH (47 k) T 211.0/31.8
R318 7030016110 S.RES RMC1/16S-473JTH (47 k) T 209.5/31.8
R319 7030016110 S.RES RMC1/16S-473JTH (47 k) T 208.0/31.8
R320 7030016020 S.RES RMC1/16S-104JTH (100 k) T 206.3/37.0
R321 7030016110 S.RES RMC1/16S-473JTH (47 k) T 187.5/45.8
R322 7030016020 S.RES RMC1/16S-104JTH (100 k) T 187.5/49.8
R323 7030016150 S.RES RMC1/16S-100JTH (10) T 187.5/52.3
R331 7030016110 S.RES RMC1/16S-473JTH (47 k) T 110.8/102.3
R332 7030016110 S.RES RMC1/16S-473JTH (47 k) T 112.1/102.3
R333 7030016110 S.RES RMC1/16S-473JTH (47 k) T 113.4/102.3
R334 7030016110 S.RES RMC1/16S-473JTH (47 k) T 111.6/112.9
R335 7030016110 S.RES RMC1/16S-473JTH (47 k) T 112.9/113.2
R336 7030016110 S.RES RMC1/16S-473JTH (47 k) T 113.8/113.2
R337 7030016110 S.RES RMC1/16S-473JTH (47 k) T 108.4/102.7
R371 7030016110 S.RES RMC1/16S-473JTH (47 k) T 196.8/54.2
R372 7030016110 S.RES RMC1/16S-473JTH (47 k) T 195.8/54.2
R373 7030016110 S.RES RMC1/16S-473JTH (47 k) T 88.1/98.8
R374 7030016020 S.RES RMC1/16S-104JTH (100 k) T 88.1/99.7
R375 7030016110 S.RES RMC1/16S-473JTH (47 k) T 93.4/92.4
R376 7030016110 S.RES RMC1/16S-473JTH (47 k) T 94.3/92.4
R377 7030016020 S.RES RMC1/16S-104JTH (100 k) T 92.6/112.7
R378 7030016110 S.RES RMC1/16S-473JTH (47 k) T 194.8/54.2
R379 7030016110 S.RES RMC1/16S-473JTH (47 k) T 88.1/97.9
R380 7030016110 S.RES RMC1/16S-473JTH (47 k) T 95.9/92.4
R381 7030016110 S.RES RMC1/16S-473JTH (47 k) T 107.0/112.7
R382 7030016110 S.RES RMC1/16S-473JTH (47 k) T 104.3/112.7
R383 7030016110 S.RES RMC1/16S-473JTH (47 k) T 105.2/112.7
R384 7030016110 S.RES RMC1/16S-473JTH (47 k) T 103.4/112.7
R385 7030015970 S.RES RMC1/16S-103JTH (10 k) T 91.7/112.7
R386 7030015970 S.RES RMC1/16S-103JTH (10 k) T 90.8/112.7
R394 7030016110 S.RES RMC1/16S-473JTH (47 k) T 108.4/103.6
R395 7030016110 S.RES RMC1/16S-473JTH (47 k) T 108.4/105.4
R396 7030016110 S.RES RMC1/16S-473JTH (47 k) T 108.4/106.3
R397 7030016110 S.RES RMC1/16S-473JTH (47 k) T 108.4/107.2
R411 7030016110 S.RES RMC1/16S-473JTH (47 k) T 202.9/50.9
R412 7030016110 S.RES RMC1/16S-473JTH (47 k) T 201.8/50.9
R413 7030016050 S.RES RMC1/16S-102JTH (1 k) T 202.7/54.1
R414 7030016050 S.RES RMC1/16S-102JTH (1 k) T 201.4/54.8
R421 7030016050 S.RES RMC1/16S-102JTH (1 k) T 88.1/100.6
R422 7030016020 S.RES RMC1/16S-104JTH (100 k) T 94.4/112.7
R423 7030016020 S.RES RMC1/16S-104JTH (100 k) T 93.5/112.7
R431 7030016020 S.RES RMC1/16S-104JTH (100 k) T 102.5/112.7
R432 7030016020 S.RES RMC1/16S-104JTH (100 k) T 101.6/112.7
R433 7030016020 S.RES RMC1/16S-104JTH (100 k) T 100.5/112.7
R434 7030016020 S.RES RMC1/16S-104JTH (100 k) T 99.6/112.7
R435 7030016110 S.RES RMC1/16S-473JTH (47 k) T 91.7/129.9
R440 7030016150 S.RES RMC1/16S-100JTH (10) T 104.7/92.4
R441 7030016150 S.RES RMC1/16S-100JTH (10) T 105.6/92.4
R442 7030016150 S.RES RMC1/16S-100JTH (10) T 106.5/92.4
R443 7030016150 S.RES RMC1/16S-100JTH (10) T 107.1/94.1
R444 7030016150 S.RES RMC1/16S-100JTH (10) T 107.6/92.4
R445 7030016150 S.RES RMC1/16S-100JTH (10) T 108.2/94.1
R446 7030016150 S.RES RMC1/16S-100JTH (10) T 108.7/92.4
R447 7030016150 S.RES RMC1/16S-100JTH (10) T 109.3/94.1
R506 7030016020 S.RES RMC1/16S-104JTH (100 k) T 147.0/102.2
R507 7030016020 S.RES RMC1/16S-104JTH (100 k) T 147.0/104.2
R508 7030016020 S.RES RMC1/16S-104JTH (100 k) T 147.0/106.2
R509 7030016020 S.RES RMC1/16S-104JTH (100 k) T 147.0/108.2
R514 7030016020 S.RES RMC1/16S-104JTH (100 k) T 142.0/107.9
R515 7030016020 S.RES RMC1/16S-104JTH (100 k) T 142.0/110.6
R516 7030016020 S.RES RMC1/16S-104JTH (100 k) T 122.0/106.5
R518 7030016110 S.RES RMC1/16S-473JTH (47 k) T 139.9/114.7
R520 7030016020 S.RES RMC1/16S-104JTH (100 k) T 120.1/102.5
R522 7030016020 S.RES RMC1/16S-104JTH (100 k) T 119.2/102.5
R527 7030016020 S.RES RMC1/16S-104JTH (100 k) T 121.1/107.5
R529 7030016020 S.RES RMC1/16S-104JTH (100 k) T 139.0/112.5
R531 7030016250 S.RES RMC1/16S-220JTH (22) T 125.0/104.5
R532 7030016250 S.RES RMC1/16S-220JTH (22) T 125.0/105.5
R533 7030016150 S.RES RMC1/16S-100JTH (10) T 125.0/107.5
R534 7030015970 S.RES RMC1/16S-103JTH (10 k) T 138.1/112.5
R535 7030016150 S.RES RMC1/16S-100JTH (10) T 125.0/109.5
R536 7030016150 S.RES RMC1/16S-100JTH (10) T 125.0/103.5
R537 7030016150 S.RES RMC1/16S-100JTH (10) T 125.0/102.4
R538 7030016020 S.RES RMC1/16S-104JTH (100 k) T 118.9/109.3
R539 7410001140 S.ARR EXB28V104JX T 122.1/97.0

Icom IC-9700 Specifications

General

Receiver Type	Triple conversion superheterodyne
Display	4.3 inch color TFT touch screen
Type	VHF/UHF/1.2GHz All Mode Transceiver
Receiver System	Triple conversion superheterodyne
D-STAR	Yes
Antenna Impedance	50 ohms
Power Supply	13.8V DC ±15%
Frequency Range	144-146 MHz, 430-440 MHz, 1240-1300 MHz
Mode	FM, SSB, CW, AM
Antenna Connector	2m/70cm: SO-239, 23cm: Type-N
Dimensions	240 x 94 x 238 mm
Weight	Approx. 4.7 kg
RF Power Output	2m/70cm: 100W, 23cm: 10W
GPS	Yes (Internal)
Sensitivity	0.18 μV (FM)
