2-3

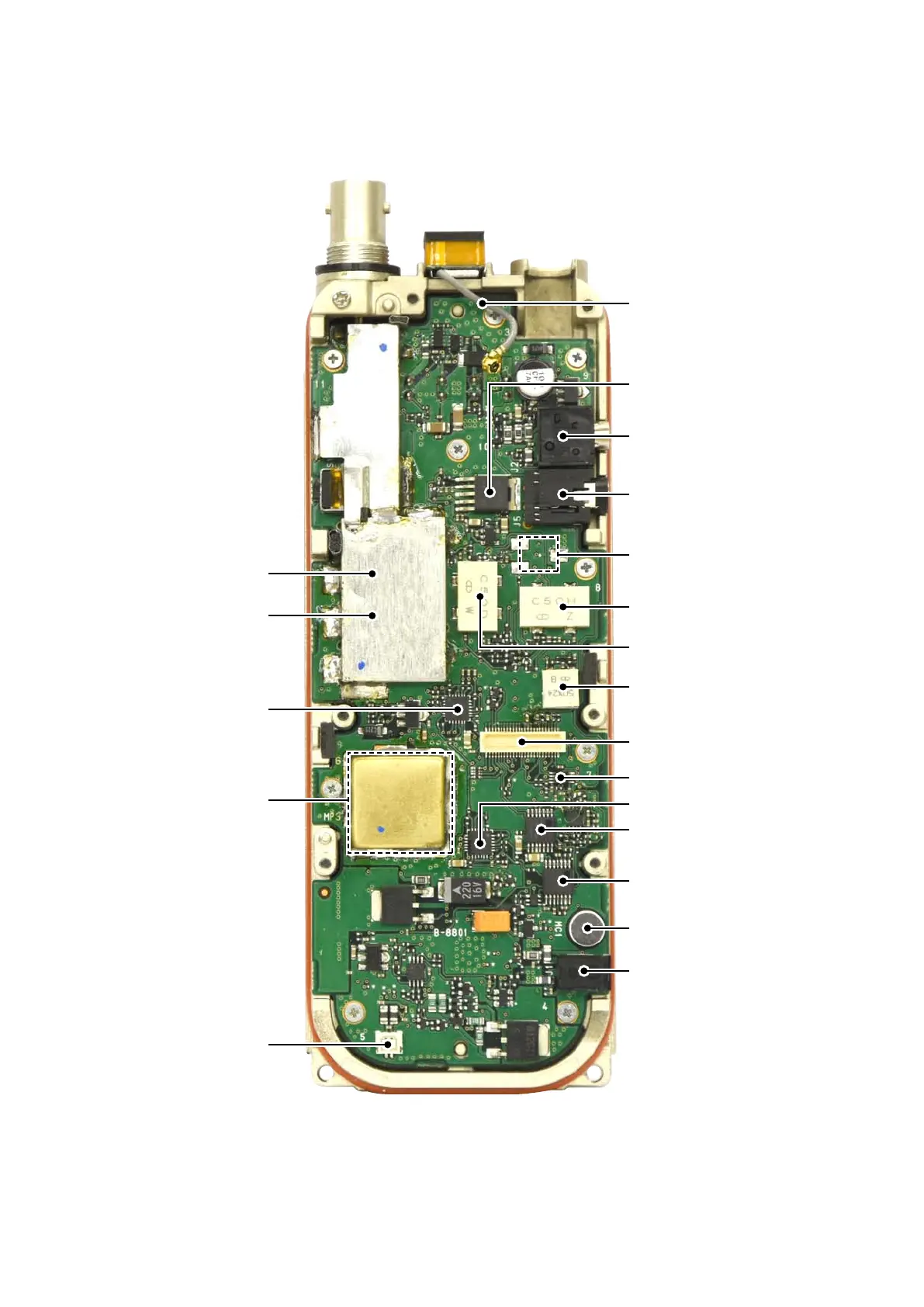

MAIN/MAIN-1 UNIT (TOP VIEW)
Tx/Rx VCO Circuits
2nd IF Filter
(FI5: for WX Channels)
Only for #11, #12, #21, and #22
Coaxial Cable*
[MIC] (J2)
+5 V Regulator
(IC240)
[SP] (J5)
[DC 11V] (J1)
Internal Microphone
(MC1)
2nd IF Filter
(FI4: for Narrow)
Discriminator
(X1)
ALC Amplifier (IC215)
Audio Volume (IC229)
J6
MIC Switch (IC231)
J4
2nd IF Filter
(FI2: for Wide)
D/A Converter (IC220)
Tx Power Amplifier (Q2)
Under the shield plate
Drive Amplifier (Q3)
Under the shield plate
D/A Converter (IC216)
*Only for IC-A25N
