Icom IC-A25C Service Manual

6-2

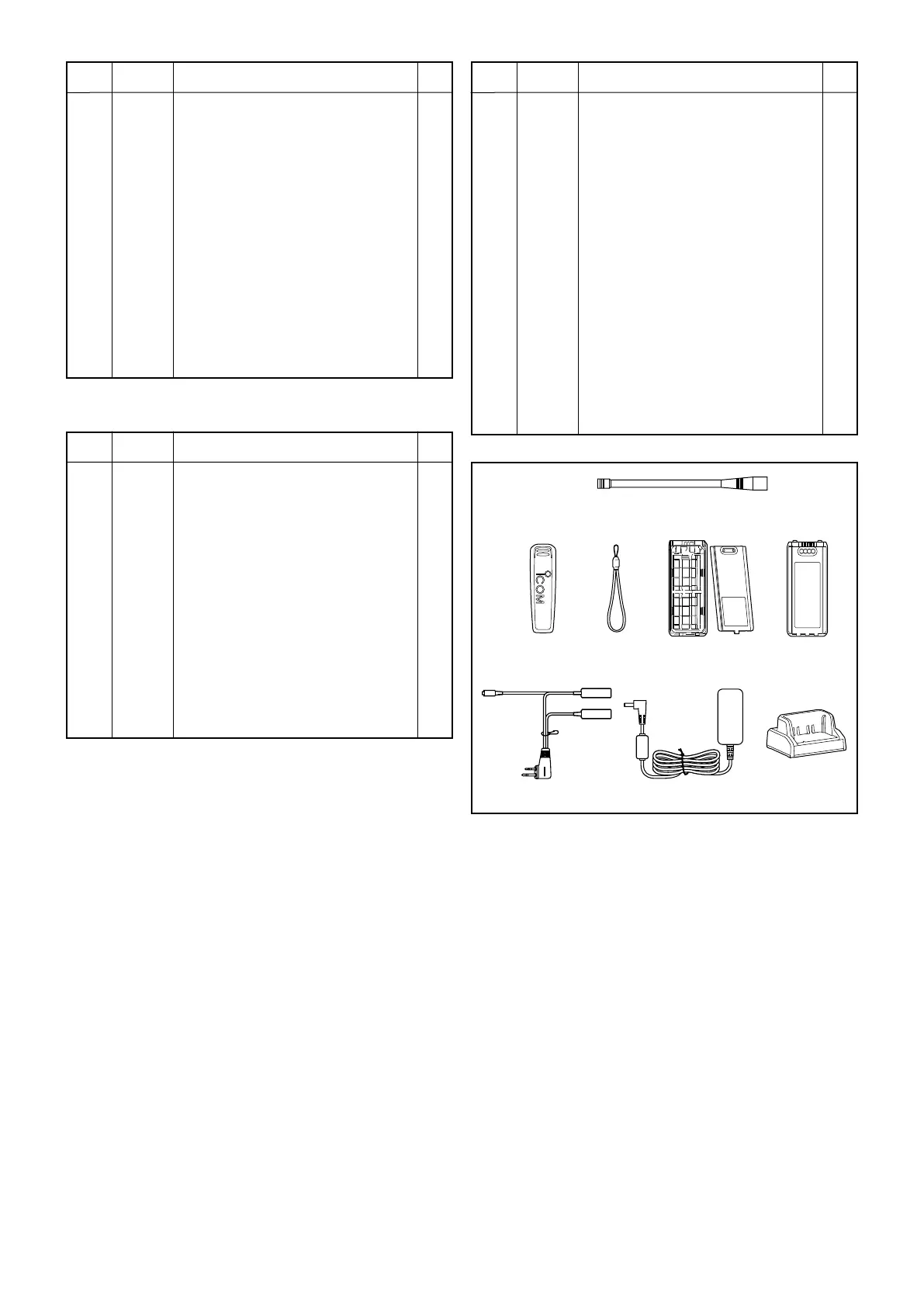

[ACCESSORIES]
REF PART
DESCRIPTION qTY.
NO. NO.
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head BS: Brass NI: Nickel ZU: Zinc SUS: Stainless
†
Sold as an option.
EP1
MP1
W1 EP5
EP2 EP3
EP7
EP8
[LOGIC-1 UNIT] (for #13, #14, #23, and #24)
REF PART
DESCRIPTION qTY.
NO. NO.
J1* 6510030220 50RF-JMCS-G-1B-TF (N) (LF) (SN) 1
J2* 6510031390 15FXVL-RSM1-GAN-TF-1 (HF) 1
J3* 6510023480 AYU1-1P-02676-120-TF [#13] 1
6510023480 AYU1-1P-02676-120-TF [#14] 1
J4* 6510031380 31FXVL-RSM1-GAN-TF-1 (HF) 1
DS5 5030004360 TM128160D1CIWUGND 1
S23* 2260003320 SKRTLAE010 1
S24* 2260003320 SKRTLAE010 1
S25* 2260003320 SKRTLAE010 1
MP1* 8510022120 3699 VCO CASE [#13] 1
8510022120 3699 VCO CASE [#14] 1
MP2 8930096860 3699 WHITE SHEET 1
MP3 8930096870 3699 LCD FILTER 1
MP4 8930094680 DOUBLE SIDE TAPE (CC) 2
MP5 8210032890 3699 REFLECTOR 1
MP6* 8510022280 3699 CPU SHIELD 1
MP7 8930097820 3699 LCD HOLDER 1
MP8 8930083700 DOUBLE SIDE TAPE (BM) 1
[MAIN-1 UNIT] (for #13, #14, #23, and #24)
REF PART
DESCRIPTION qTY.
NO. NO.
J1* 6450000870 HEC2711-01-020 1
J2* 6450000131 HSJ1102-018540 1
J4* 6510021901 BM02B-ASRS-TF (LF) (SN) 1
J5 6450001060 HSJ1493-01-010 1
J6* 6510031230 50P4.5-JMCS-G-TF (N) (1) 1
MC1* 7700003060 F6027AP-SBC-462 <TDS> 1
S1* 2260003640 SKHLLCA010 1
MP1* 8410003040 3699 PA HEATSINK 1
MP3* 8510022120 3699 VCO CASE 1
MP5 8950009230 3699 CONTACT SPRING 1
MP10 8930097700 3699 JACK SHEET 1
MP11 8510022270 3699 ANT SHIELD 1
MP12 8510022260 3699 PA CASE 1
MP20 8930070581 SHIELD SPONGE (BA)-1 1
MP21 8930072061 SHIELD SPONGE (BU)-1 1
MP22 8930085111 SHIELD SPONGE (CX)-1 1
MP23 8930058510 INSULATION SHEET HC 1
W1 – OPC-2379
†
[#11] 1
– OPC-2379
†
[#13] 1
– OPC-2379
†
[#14] 1
– OPC-2379
†
[#21] 1
– OPC-2379
†
[#23] 1
– OPC-2379
†
[#24] 1
EP1 3310002130 FA-B02AR (125) 1
EP2 6910018620 BLACK HANDY STRAP 1
EP3 – BP-288
†
1
EP5 – BC-123SA
†
[#11] 1
– BC-123SE
†
[#12] 1
– BC-123SE
†
[#13] 1
– BC-123SV
†
[#14] 1
– BC-123SA
†
[#21] 1
– BC-123SE
†
[#22] 1
– BC-123SE
†
[#23] 1
– BC-123SV
†
[#24] 1
EP7 – BC-224
†
1
EP8 – BP-289
†
[#11] 1
– BP-289
†
[#13] 1
– BP-289
†
[#14] 1
– BP-289
†
[#21] 1
– BP-289
†
[#23] 1
– BP-289
†
[#24] 1
MP1 – MB-133
†
1

Icom IC-A25C Specifications

General

Purpose	Aviation Service (Air Band)
Operating frequency	118.000 – 136.992 MHz
Display type	LCD
Display diagonal	2.3 \
Battery type	BP-288
Battery life (max)	10.5 h
Battery low indication	Yes
Number of batteries supported	1
Product color	Black
Operating temperature (T-T)	-10 - 60 °C
Number of batteries included	1 pc(s)
Antenna connector type	FA-B02AR

Weight and Dimensions

Depth	31.8 mm
Width	58.9 mm
Height	148.4 mm
Weight	384 g
