Icom IC-A25C Service Manual

6-3

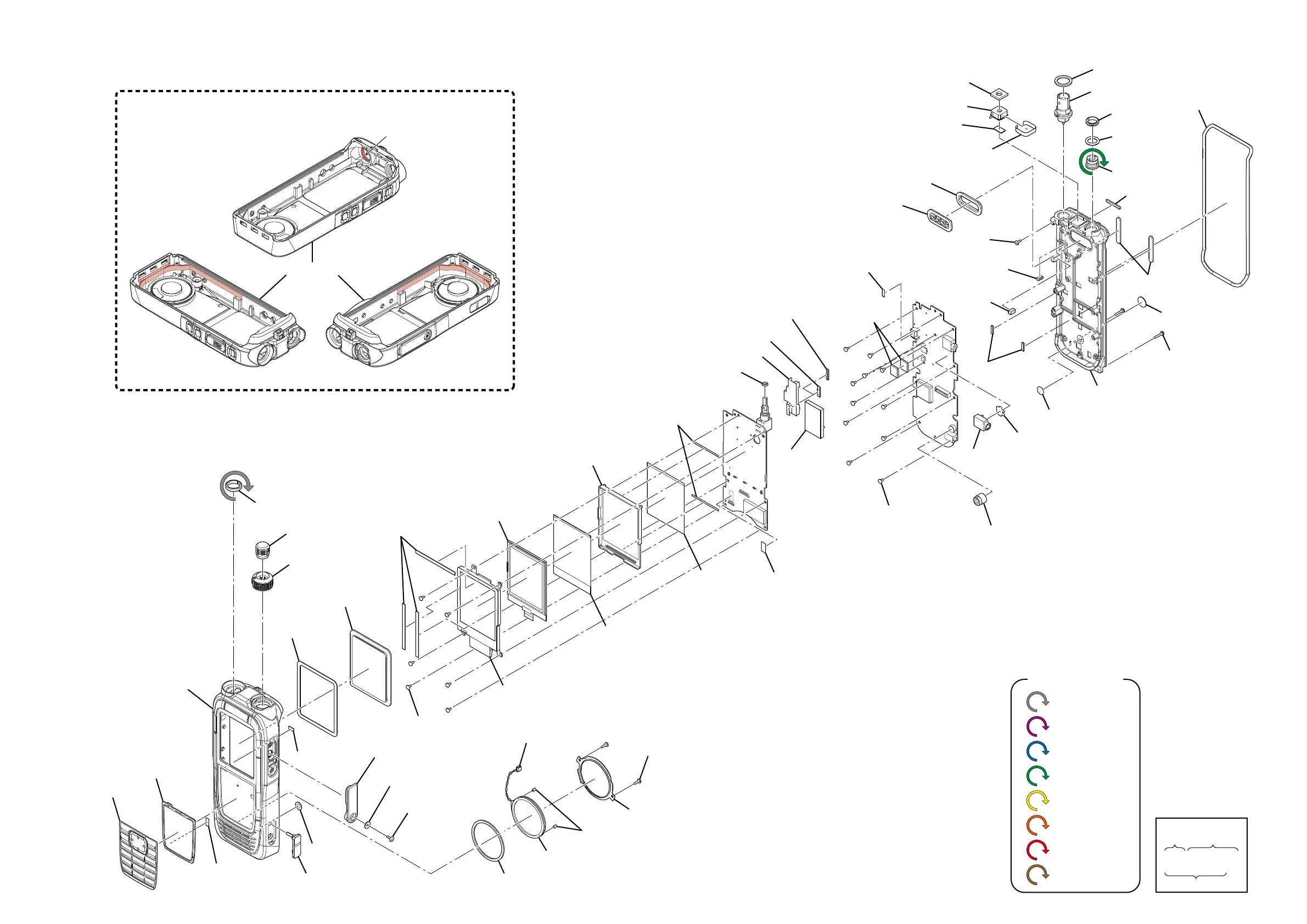

Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
: <0.8 (N•m)>
: <0.7 (N•m)>
: <0.6 (N•m)>
: <0.5 (N•m)>
: <0.4 (N•m)>
: <0.3 (N•m)>
: <0.2 (N•m)>
: <0.1 (N•m)>
Tightening torque
MP2 (CHASSIS)
(Refere to the parts list.)
J1 (CHASSIS)
(6510027690)
SP1 (CHASSIS)
(2510002150)
W1 (CHASSIS)
(8900009640)
EP1 (CHASSIS)
(Refere to the parts list.)
EP2 (CHASSIS)
(8940000080)
MP1 (CHASSIS)
(8010024120)
MP5 (CHASSIS)
(8310091150)
MP6 (CHASSIS)
(8610016330)
MP7 (CHASSIS)
(8610016340)
MP10 (CHASSIS)
(8930096800)
MP11 (CHASSIS)
(8930096810)
MP12 (CHASSIS)
(8930096820)
MP13 (CHASSIS)
(8930096830)
MP14 (CHASSIS)
(8930096840)
MP15 (CHASSIS)
(Refere to the parts list.)
MP16 (CHASSIS)
(8930096850)
MP18 (CHASSIS)
(Refere to the parts list.)
MP20 (CHASSIS)
(8830004260)
MP21 (CHASSIS)
(8830003900)
MP23 (CHASSIS)
(8930074350)
MP24 (CHASSIS)
(8930088050)
MP25 (CHASSIS)
(8930090100)
MP26 (CHASSIS)
(8850003421)
MP27 (CHASSIS)
(8930098360)
MP28 (CHASSIS)
(8930084870)
MP29 (CHASSIS)
(8930088670)
MP30 (CHASSIS)
(8930068980)
MP32 (CHASSIS)
(Refere to the parts list.)
MP34 (CHASSIS)
(8810011050)
MP35 (CHASSIS)
(8810009181)
MP36 (CHASSIS)
(8810009511)
MP37 (CHASSIS)
(8810011050)
MP38 (CHASSIS)
(8810010850)
MP39 (CHASSIS)
(8810011830)
MP40 (CHASSIS)
(8850003250)
MP41 (CHASSIS)
(Refere to the parts list.)
MP42 (CHASSIS)
(8930097220)
MP43 (CHASSIS)
(8930097830)
MP44 (CHASSIS)
(8930098420)
MP45 (CHASSIS)
(8930098420)
MP46 (CHASSIS)
(8930098430)
MP47 (CHASSIS)
(8930098410)
MP48 (CHASSIS)
(8930098440)
MP49 (CHASSIS)
(8930098420)
DS5 (LOGIC/-1)
(5030004360)
MP2 (LOGIC/-1)
(8930096860)
MP3 (LOGIC/-1)
(8930096870)
MP4 (LOGIC/-1)
(8930094680)
MP5 (LOGIC/-1)
(8210032890)
MP7 (LOGIC/-1)
(8930097820)
MP8 (LOGIC/-1)
(8930083700)
J5 (MAIN/-1)
(6450001060)
MP5 (MAIN/-1)
(8950009230)
MP10 (MAIN/-1)
(8930097700)
MP11 (MAIN/-1)
(8510022270)
MP12 (MAIN/-1)
(8510022260)
MP20 (MAIN/-1)
(8930070581)
MP21 (MAIN)
(8930085101)
MP22 (MAIN/-1)
(8930085111)
MP23 (MAIN/-1)
(8930058510)
MP24 (MAIN)
(8930084910)
MP21 (MAIN-1)
(8930072061)
MP2 (CHASSIS)
Apply all around
Apply the grease to the following area of the front panel
Used grease: G501 (80G) SHINETSU (8950002750)

Icom IC-A25C Specifications

General

Purpose	Aviation Service (Air Band)
Operating frequency	118.000 – 136.992 MHz
Display type	LCD
Display diagonal	2.3 \
Battery type	BP-288
Battery life (max)	10.5 h
Battery low indication	Yes
Number of batteries supported	1
Product color	Black
Operating temperature (T-T)	-10 - 60 °C
Number of batteries included	1 pc(s)
Antenna connector type	FA-B02AR

Weight and Dimensions

Depth	31.8 mm
Width	58.9 mm
Height	148.4 mm
Weight	384 g
