PANEL DESCRIPTION

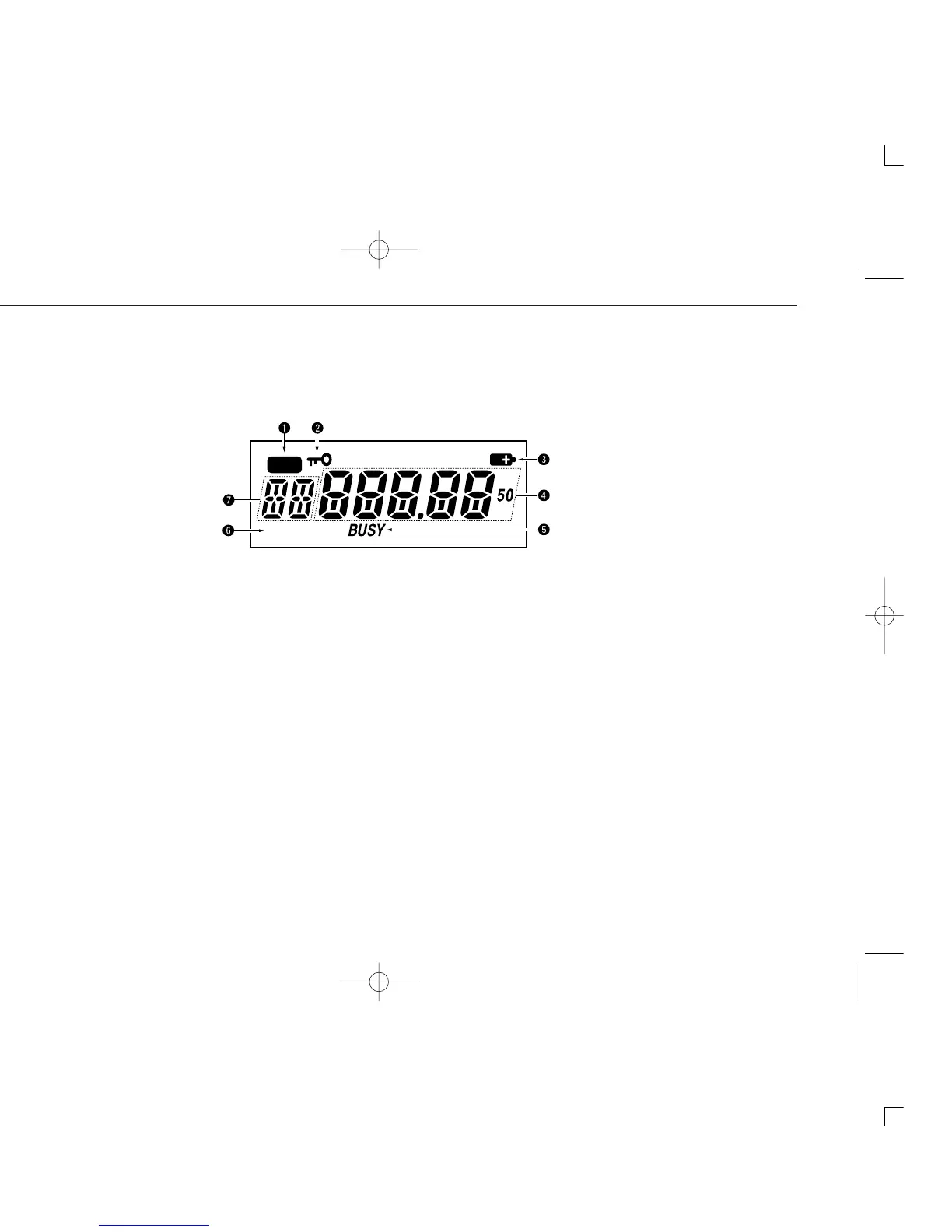

■ Function display
q MEMORY MODE INDICATOR (p. 9)
Appears when memory mode is selected.
w LOCK INDICATOR (p. 6)
Indicates that the lock function is in use.
e LOW BATTERY INDICATOR
➥ Appears when the battery is nearing exhaustion.
➥ Appears and flashes when battery replacement is nec-
essary.
r FREQUENCY DISPLAY (p. 11)
➥Shows the operating frequency.
➥Shows the channel name when the memory name func-
tion is selected. (p. 10)
t BUSY INDICATORS
➥ “BUSY” appears when receiving a signal or when the
squelch is open.
y MEMORY LOCKOUT INDICATOR
➥ ”SKIP” appears when the memory channel is set as
lockout channel.
u MEMORY CHANNEL INDICATOR
➥Shows the memory channel number.
➥When the transceiver output power increases above a
specified level, a protection circuit stops the transmitting,
then “--” appears on the display instead of the memory
channel number. Release [PTT] then push it again to
continue transmitting.
