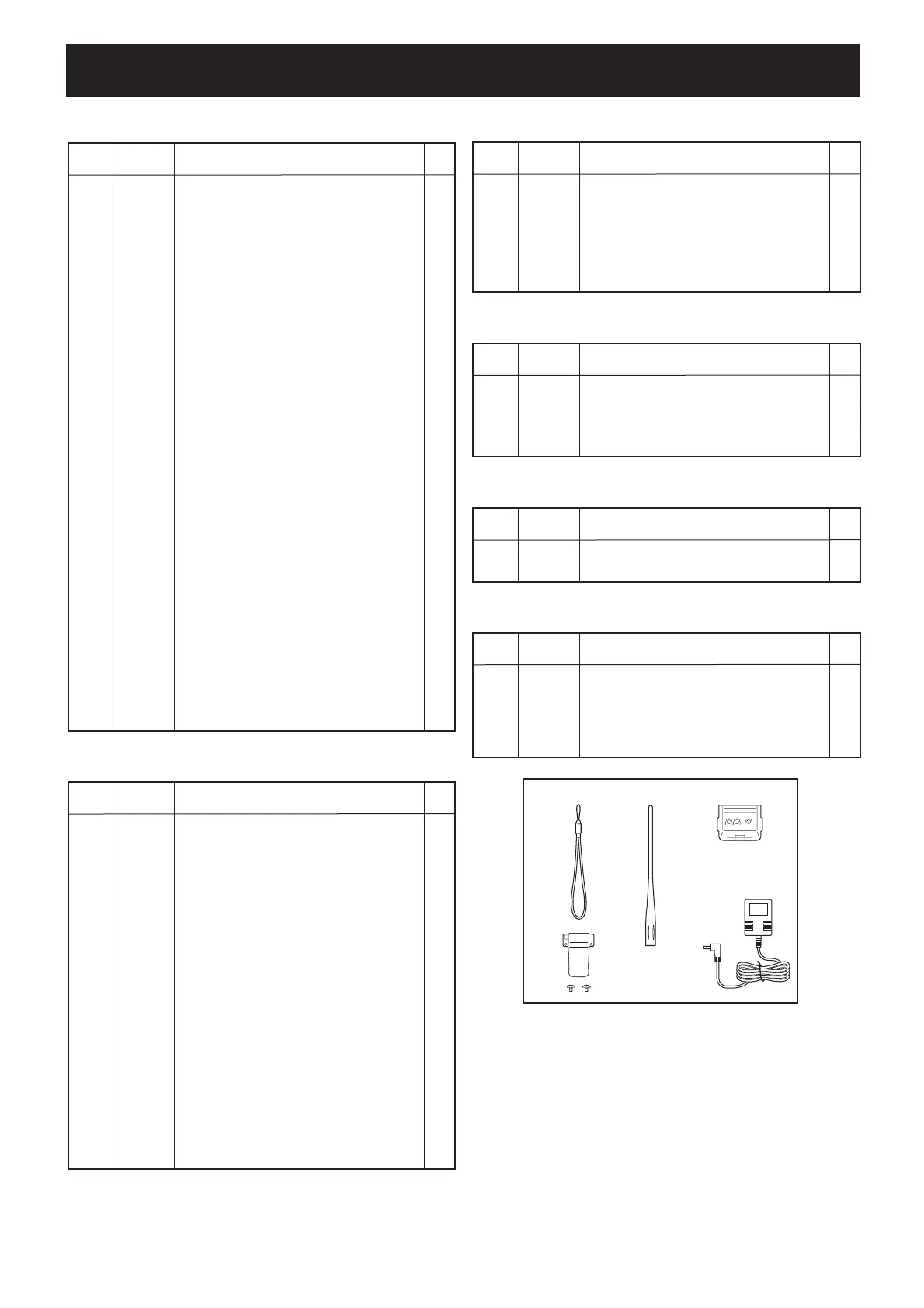

SECTION 7 MECHANICAL PARTS
SCREW abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
7 - 1
[CHASSIS PARTS]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1 6910017840 2905 ANT CONNECTOR 1
S702 2250000630 TP70D974E20-21F-3066 1
W1 8900016810 OPC-1792 (Incl. W2) 1
W2 8900016791 OPC-1763A 1
MP1 8210024420 3066 REAR PANEL 1
MP2 8210024300 3066 PTT PANEL 1
MP3 8310070540 3066 LOCK PLATE 1
MP4 8310070550 3066 T-HOLDER 1
MP5 8930073710 3066 MIC CAP 1
MP6 8930073700 3066 DC CAP 1
MP7 8930073730 3066 MAIN SEAL 1
MP8 8930073720 3066 PTT RUBBER 1
MP9 8930073740 3066 T-RUBBER 1
MP10 8930073880 3066 BP SHEET 1
MP11 8930073870 3066 SHEET 1
MP12 8930073750 3066 SHAFT 1
MP13 8610012870 KNOB N-342 (Incl. MP21) 1
MP14 8610012890 KNOB N-342 COVER 1
MP15 8610013520 KNOB N-364 1
MP16 8930073850 O-RING (BP) 1
MP17 8850002830 PLAIN WASHER (AO) 1
MP18 8930053590 O-RING (AG) 1
MP19 8830001160 VR NUT (K) 1
MP20 8830001470 VR NUT (N) 1
MP21 8610007510 KNOB SPRING NO.7800 1
MP22 8930059830 2600 SHEET 1
MP23 8850002770 PLAIN WASHER (AM) 7
MP24 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT) 10
MP25 8810009181 0-TAP FLAT WASHER B0 2X5 NI-ZC3 (BT) 2
MP26 8810010450 0-TAP SCREW PH M2X3 SUS SSBC 2
MP27 8810009161 SCREW BT B0 2X20 SUS SSBC 2
MP28 8810010750 SCREW BTB0 2X6SUS SSBC (BT) 4
MP29 8810010191 SCREW BiH M2X4 SUS SSBC 1
MP30 8810010630 0-TAP SCREW 3 PH M2X3 SUS SSBC 1
MP31 8950007300 3066 CONTACT SPRING 1
MP32 8930057022 THERMALLY SHEET (AE)-2 2
MP34 8930074690 3066 T-SHEET 1
MP35 8510018710 3066 MIC SHIELD 1
MP36 8930070590 SHIELD TAPE (S) 1
MP37 8930074980 SHIELD SPONGE (CF) 1
MP38 8510018950 3066 SHIELD PLATE 1
[LOGIC UNIT]
[ACCESSORIES]
[MAIN UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
DS1 5030002880 HLM7972-010100 1
MC300 7700002850 EM6022P-65B-G 1
SP1 2510001420 PSC-2849PA 1
W1 7120000470 ERDS2T0 1
W2 8900007682 OPC-741A-1 1
MP1 8210024350 3066 FRONT PANEL ASSY (Incl. MP8) 1
MP2 8310070860 3066 WINDOW PLATE (B) 1
MP3 8930073580 3066 LED LENS 1
MP4 8930073640 3066 KEY 1
MP5 8930073860 3066 WINDOW SHEET 1
MP6 8210022450 2888 REFLECTOR 1
MP7 8930074790 3066 LCD SPONGE 1
MP8 8930018220 870 SARAN NET 1
MP9 8930048840 2135 MIC SPONGE 1
MP10 8930061110 2681 MIC TAPE 1
MP11 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT) 8
MP12 8930062970 DOUBLE SIDE TAPE (AN) 1
MP13 8930074970 3066 WHITE SHEET 1
MP24 8510017840 OG-321610G 1
MP500 8510017840 OG-321610G 1
MP501 8510017840 OG-321610G 1
MP510 8510017840 OG-321610G 1
MP511 8930074500 3066 A-SPRING 1
MP512 8930074510 3066 B-SPRING 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J702 6510024131 IMSA-9637S-40Y905 1
J703 6510022880 AXK5S30340P 1
S700 2260002840 SKHLLFA010 1
S701 2260002840 SKHLLFA010 1
MP300 8510016470 2775 VCO CASE 1
MP301 8510016460 2775 VCO COVER 1
MP302 8510017840 OG-321610G 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
EP1 3310002150 FA-S270C 1
EP2 (Optional) BP-256 1
EP3 (Optional) BC-167D 1
EP4 6910018620 BLACK HANDY STRAP 1
MP1 (Optional) MB-111 (Incl. MP2) 1
MP2 8810010470 SCREW truss M3X4 SUS SSBC 2
*: Refer to SECTION 9 “BOARD LAYOUTS.”
[RF UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J800 6510025370 AXK816145YG 1
J1000 6450000870 HEC2711-01-020 1
J1001 6510024410 AXK6S30545 1
MP100 8410002610 2888 PA HEATSINK 1
MP101 6910014760 OG-503040 1
[VCO UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1 6510025380 AXK716147G 1
MP1 8510017470 2888 VCO CASE 1
EP3
EP2
EP4
MP1
MP2
EP1
