CONNECTION AND INSTALLATION
New2001
qANTENNA CONNECTOR
Connects to an antenna. Ask your dealer about antenna
selection and optimal antenna locations.
wMICROPHONE HANGER
Connects the supplied microphone hanger to the vehicle’s
ground for the hanger function.
eDC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay attention to polarities.
NEVER connect to a 24 V battery. This could damage
the transceiver.
rEXTERNAL SPEAKER JACK
Connects an optional external speaker.
tOPTIONAL CABLE (OPC-617 or OPC-822)
Connects an external modem unit, GPS receiver, printer,
PC, LCD backlight control, audio amplifier for the ‘public
address’ function, etc., according to the installed cable
type.

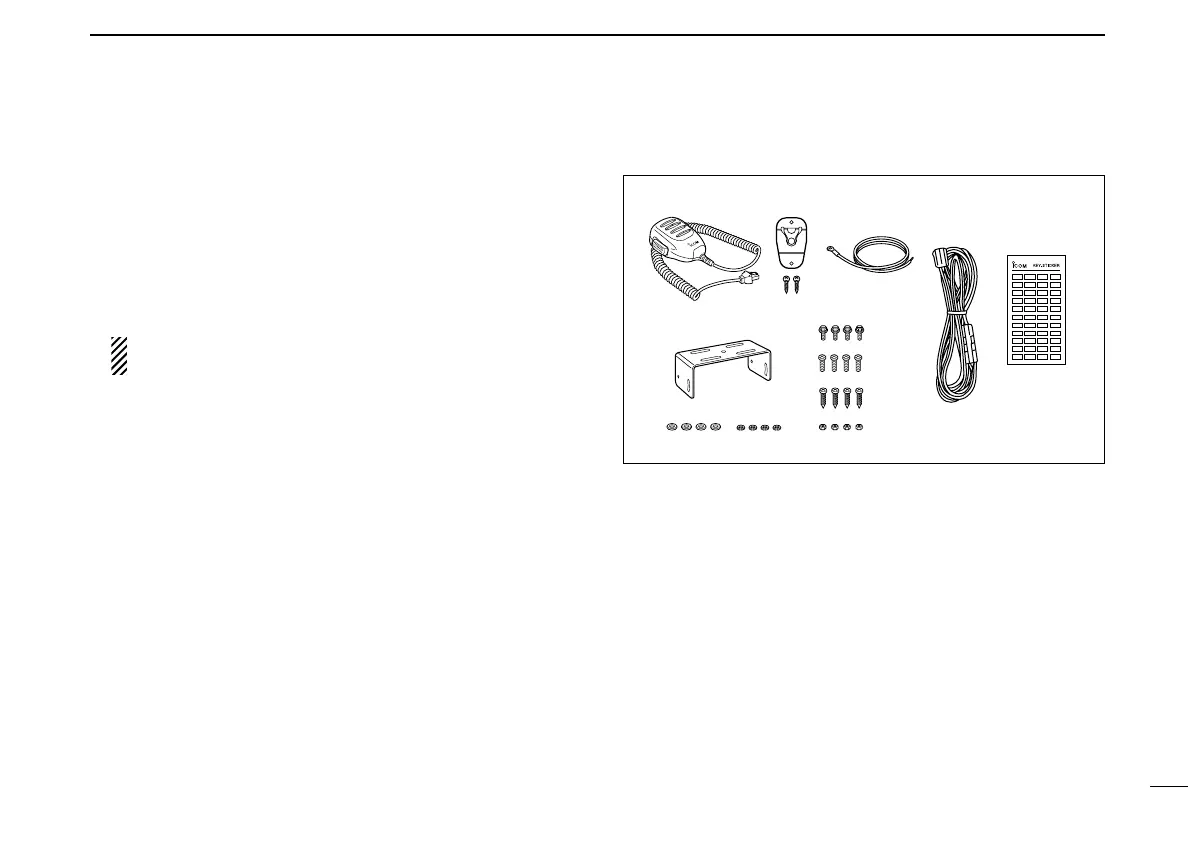

■ Supplied accessories
D Function name stickers
Use these to label the programmable function keys ([P0] to
[P4]) according to their assigned functions.
q Microphone …………………1
w Microphone hanger and
screw set ………………1 set
e Microphone hanger cable …1
r DC power cable (OPC-345)
………………………………1
t Function name stickers
(KEY STICKERS) …………1
y Mounting bracket …………1
u Mounting bolts ……………4
i Mounting screws (M5×12) 4
o Self-tapping screws (M5×20)
………………………………4
!0 Flat washers ………………4
!1 Spring washers ……………4
!2 Nuts …………………………4
qw
e
r
y
u
i
o
!0 !1 !2
t
