27
5 CONNECTION AND INSTALLATION
New2001
■ Mounting the transceiver
The front panel can be inverted for correct viewing while leav-
ing the built-in speaker facing away from the mounting surface.

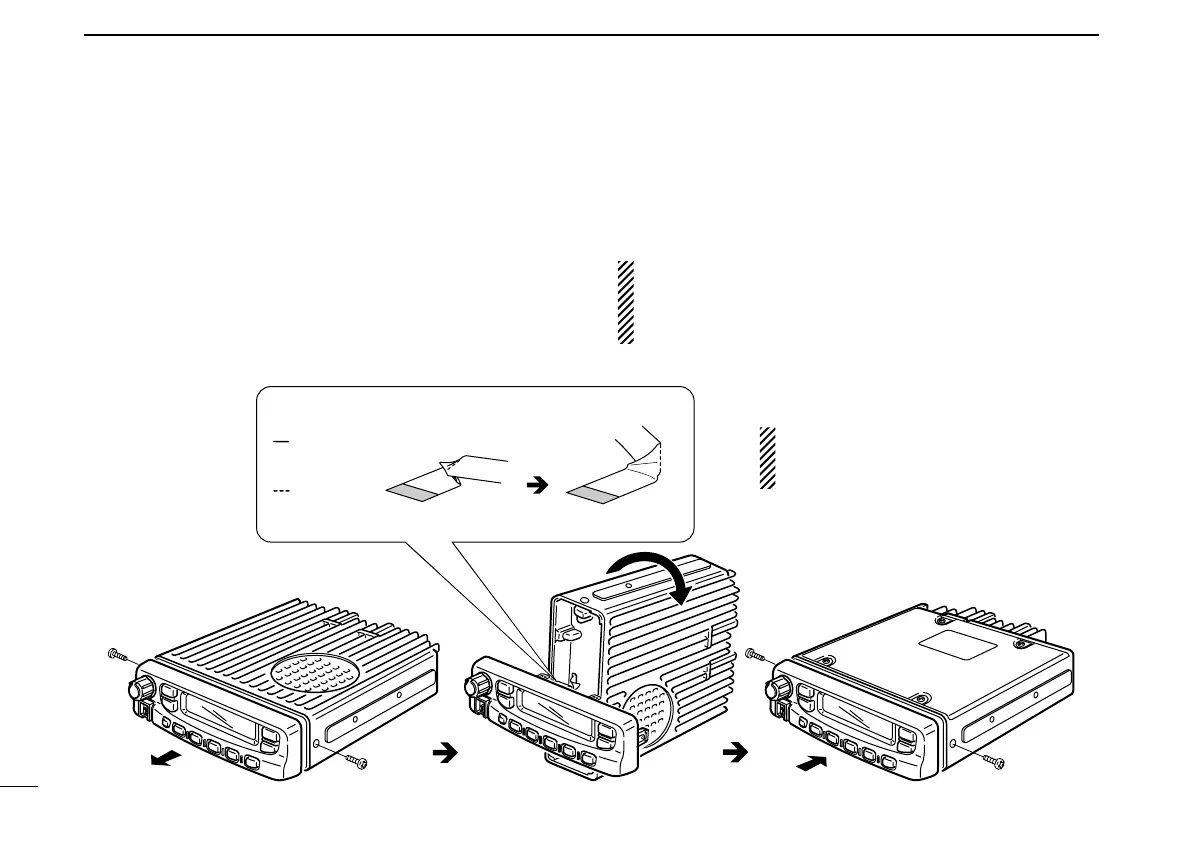

D Inverting the Front panel
q Unscrew the 2-side screws.
w Detach the Front panel forward from the transceiver.
e Bend the flat cable between the Front panel and main unit
as shown in the following diagram.
r Invert the transceiver 180 degrees clockwise as below.
t Re-attach the Front panel to the transceiver.
y Tighten the 2 screws.
CAUTION:
• NEVER rotate the transceiver more than 180 degrees.
• DO NOT bend the flat cable too much. Damage may
occur.
to Front panel
to MAIN unit
Flat cable orientation
normal bend line
inverted
bend line
NOTE: Be sure to bend the flat cable in
the correct direction, before turning over
(inverting) the transceiver.
IC-F510 Series_BIIS-2.qxd 06.7.13 1:31 PM Page 27 (1,1)
