CONNECTION AND MAINTENANCE
■ Antenna
A key element in the performance of any communication sys-
tems is the antenna. Contact your dealer for more information
regarding antennas and how to install them.
■ Fuse replacement

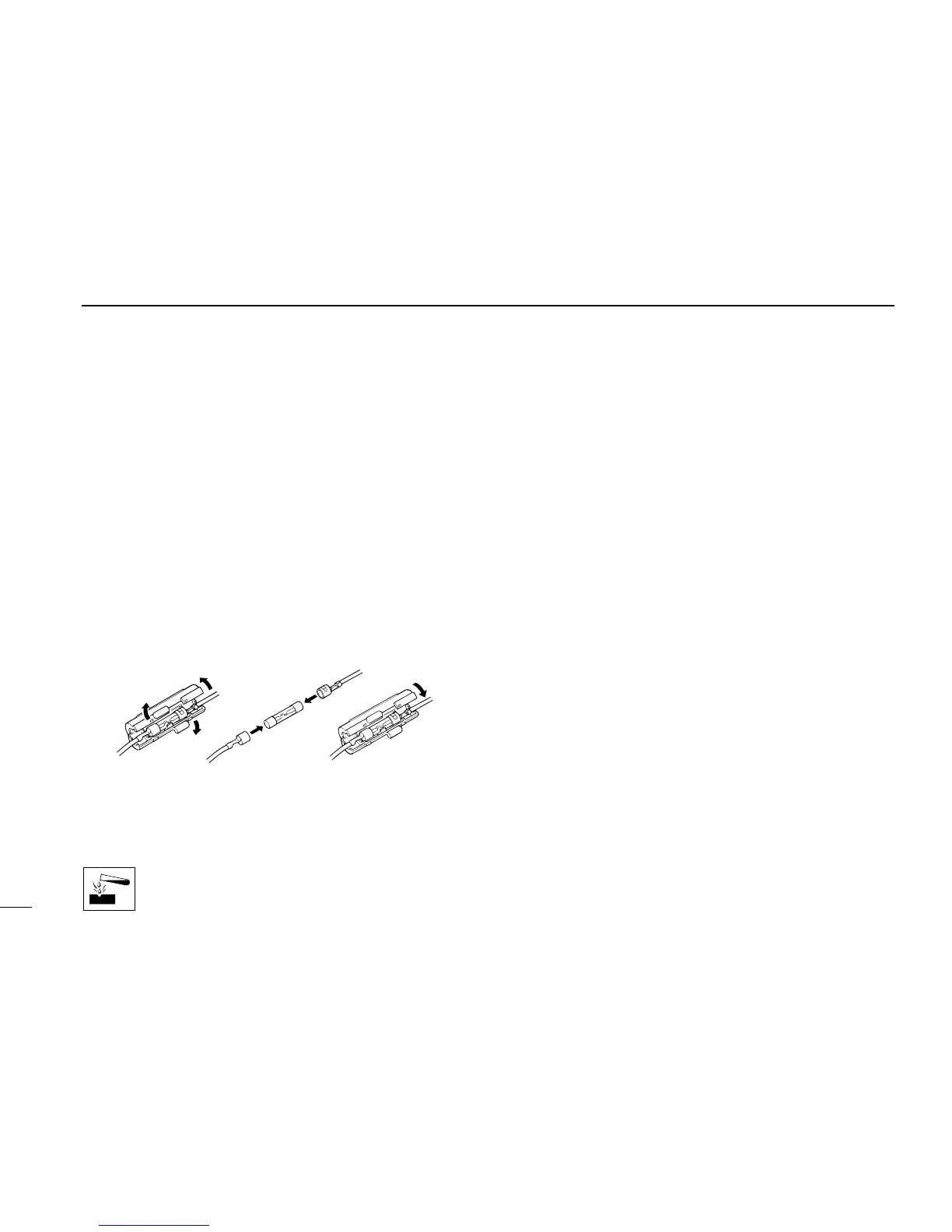

A fuse is installed in each fuse holder of the supplied DC
power cable*. If a fuse blows or the transceiver stops func-
tioning, track down the source of the problem if possible, re-
paire it and then replace the damaged fuse with a new rated
one.
*Depending on the version, only 1 fuse holder may be attached.
❑฀Fuse฀rating:฀10฀A฀(for฀1฀fuse฀holder)/20฀A฀(for฀2฀fuse฀holders)
USE the applicable fuse only.
■ Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
DO NOT use harsh solvents such as benzine or
alcohol, as they will damage the transceiver sur-
faces.
■ Options
•฀OPC-1132A/OPC-347฀D C P O W E R C A B L E
2 fuse holders are attached. USE only a 20 A fuse.
OPC-1132A : 3 m (9.8 ft)
OPC-347 : 7 m (23 ft)
•฀OPC-1939/OPC-2078฀
A C C C A B L E
฀Allows฀you฀to฀connect฀to฀an฀external฀terminal.
OPC-1939: D-sub 15-pin, OPC-2078: D-sub 25-pin
•฀HM-152/HM-152T/HM-148G/HM-148T
H A N D M I C R O P H O N E
HM-152 : Hand microphone
HM-152T : DTMF microphone
HM-148G : Self grounding heavy duty microphone
HM-148T : Self grounding heavy duty DTMF microphone
•฀SM-26
D E S K T O P M I C R O P H O N E
•฀SP-22/SP-30 E X T E R N A L S P E A K E R
Input impedance : 4 ø
฀SP-22฀:฀Rated฀input;฀5฀W,฀Max.฀input;฀7฀W
฀SP-30฀:฀Rated฀input;฀20฀W,฀Max.฀input;฀30฀W
•฀UT-108R
D T M F D E C O D E R U N I T
provides pager and code squelch capabilities.
•฀UT-109R/UT-110R
V O I C E S C R A M B L E R U N I T
Non-rolling type (UT-109R) and Rolling type (UT-110R)
voice scrambler units provides higher communication secu-
rity.
