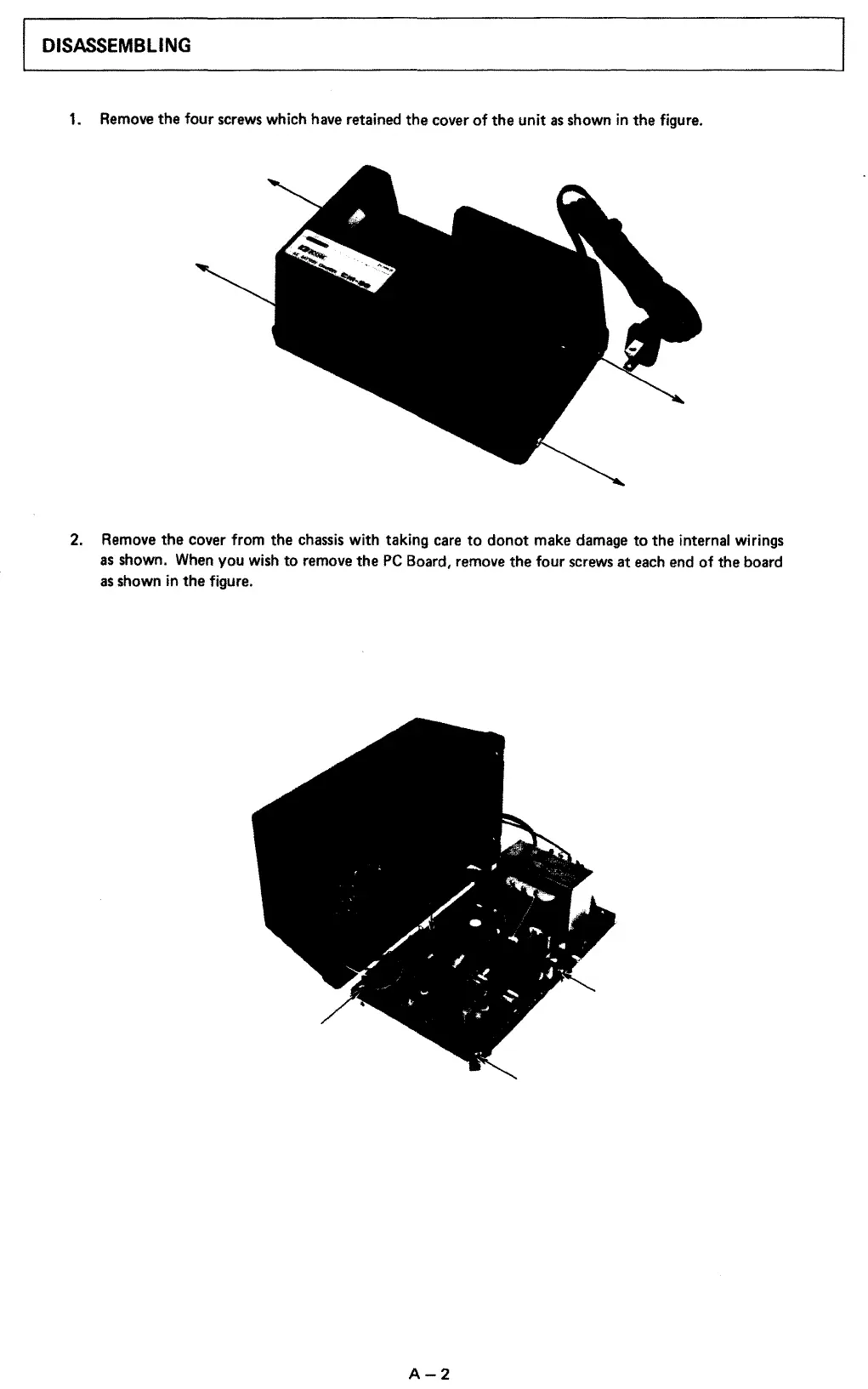

DISASSEMBLING
1.
Remove the four screws which have retained
the
cover
of
the
unit
as
shown
in
the
figure.
2. Remove the cover from the chassis with taking care
to
donot
make damage to the internal wirings
as shown.
When
you wish
to
remove the
PC
Board, remove the four screws
at
each end
of
the board
as
shown
in
the
figure.
A-2
