BATTERY PACK RELEASE BUTTON
To remove the battery pack:
Push and hold the battery release button
downwards, then open the battery pack as
shown below.
To attach the battery pack:
Mate the notched ends of the transceiver
and the battery pack, and click the battery
pack into place.
1

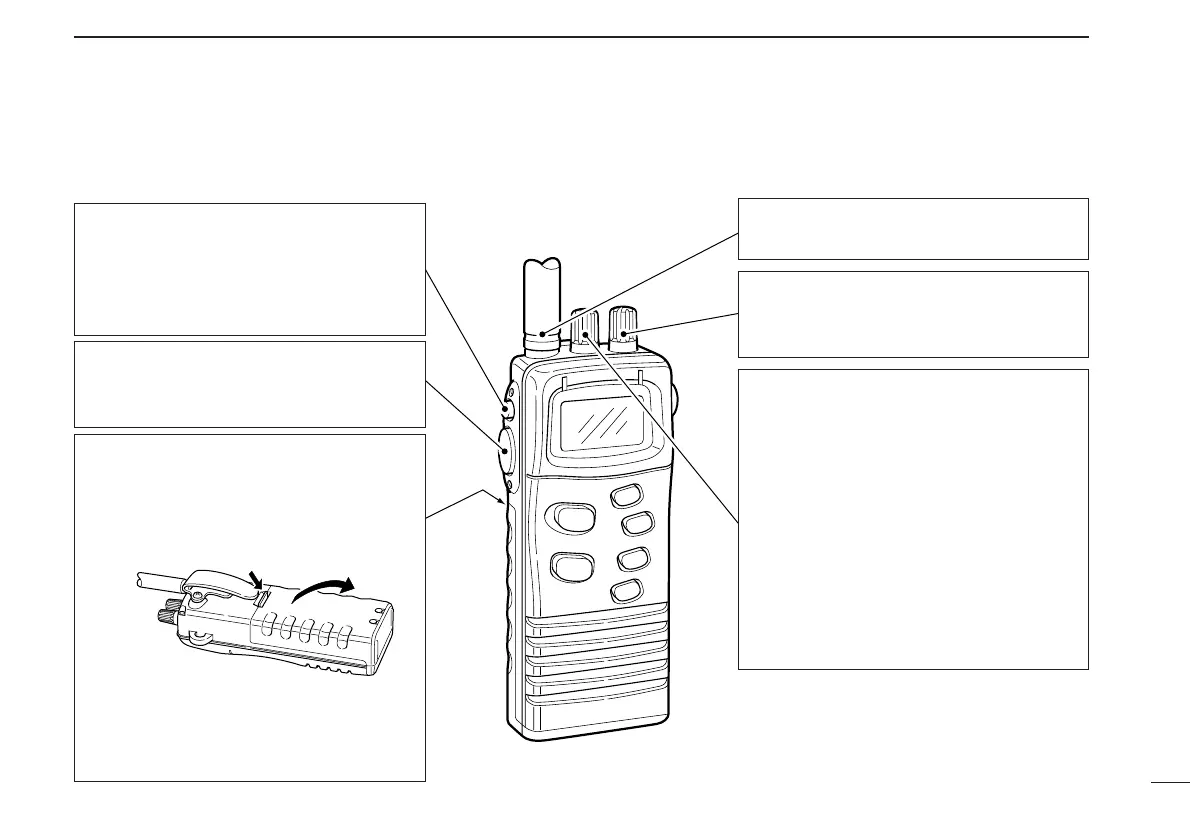

PANEL DESCRIPTION
2
■ Top and side panels
PTT SWITCH [PTT]
Push and hold to transmit; release to re-
ceive. (p. 7)
SQUELCH/MONITOR SWITCH [SQL]
•Opens the squelch and monitors the op-
erating channel while being pushed.
•Sets the squelch level with the channel
selector. (p. 6)
ANTENNA CONNECTOR (p. 17)
Connects the supplied antenna.
CHANNEL SELECTOR [CH]
•Sets an operating channel during normal
operation. (pgs. 5, 6)
•Sets a squelch threshold level while
pushing [SQL]. (p. 6)
•Checks tag channels or changes scan-
ning direction during scan. (p. 12)
•Selects the set mode contents in SET
mode. (pgs. 13, 14)
•Selects the optional scrambler code
when [SCN
•SCRM] is pushed and held.
(p. 8)
VOLUME CONTROL [OFF/VOL]
Turns power ON and adjusts the audio
level. (p. 7)
