Icom IC-M35

2 - 1
SECTION 2
.

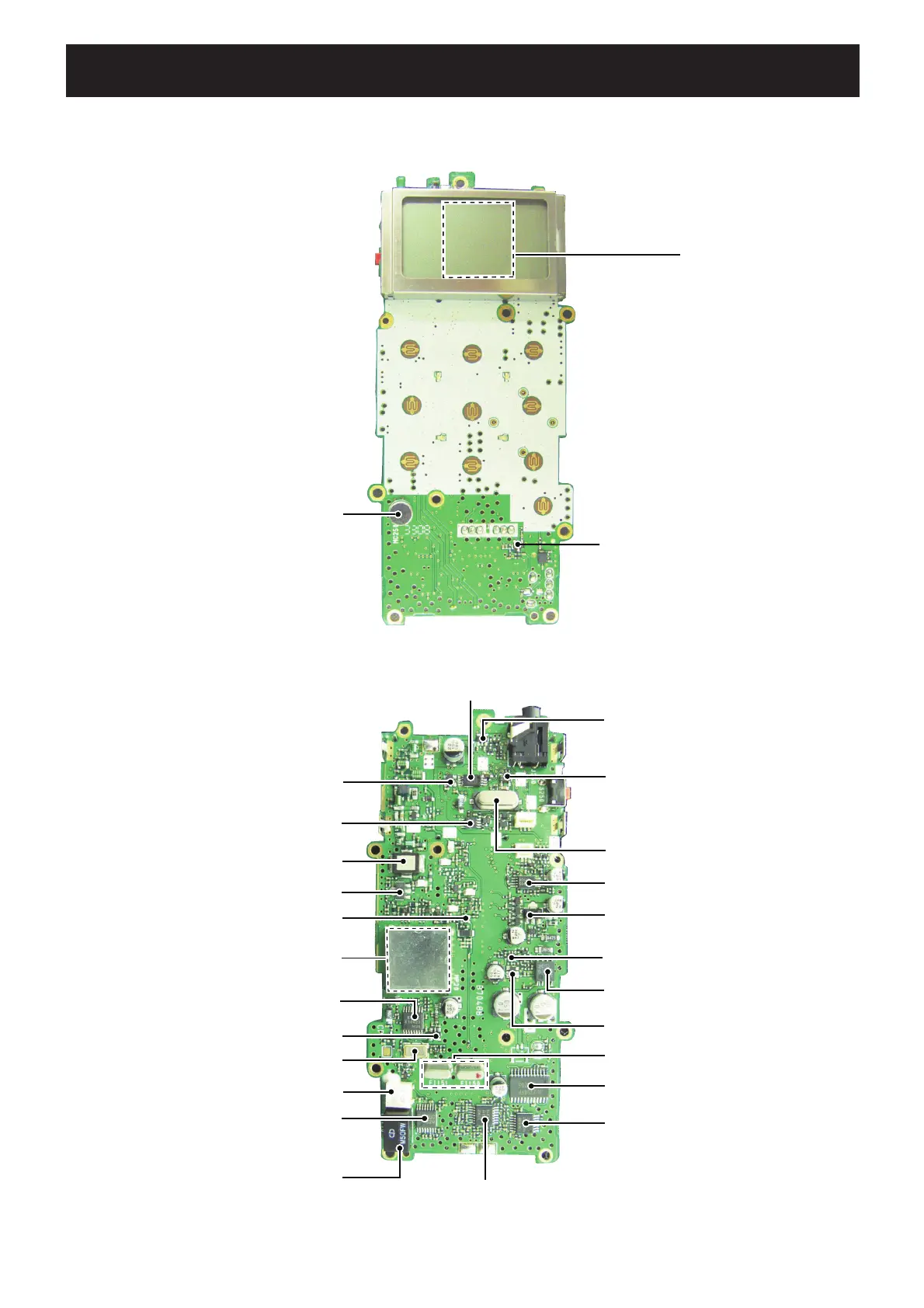

INSIDE VIEWS
CPU (under the LCD)
(IC360)
VCO
• MAIN UNIT
(TOP VIEW)
• MAIN UNIT
(BOTTOM VIEW)
1st IF MIXER
(Q150)
QUAD OP AMP (AF FILETR/AF AMPs)
(IC200)
INTERNAL MICROPHONE
(MC250)
“VCC” LINE SWITCH
(Q353)
1ST IF FILTERS
(FI150, 151)
1ST IF AMP
(Q151)
AF POWER AMP
(IC362)
CPU CLOCK
(X360)
AF POWER AMP SWITCH
(Q230)
PLL IC
(IC1)
REFERENCE FREQUENCY OSCILLATOR
(X1)
2ND IF FILTER
(FI170)
PRE-DRIVER AMP
(Q53)
TX POWER AMP
(Q54)
IF IC
(IC170)
DISCRIMINATOR
(X170)
3V REGULATOR
(IC2)
INVERTER (data interface)
(IC364)
“CPU5V” LINE REGULATOR
(IC220)
AF MUTE SWITCH
(IC260)
D/A CONVERTER
(IC190)
AF POWER AMP REGULATOR
(Q231)
AMBIENT NOISE AMP
(IC363)
5V REGULATOR
(Q225)
CPU RESET IC
(IC341)
EEPROM
(IC340)
