Icom IC-M35 Service Manual

5 - 5
ADJUSTMENT
ADJUSTMENT
ITEM
TRANSCEIVER’S
CONDITION
OPERATION VALUE
TX POWER
-High power-
(Using BP-250)
1
[RF Power
(High)]
• CH. : 16
• TX power : High
• Transmitting

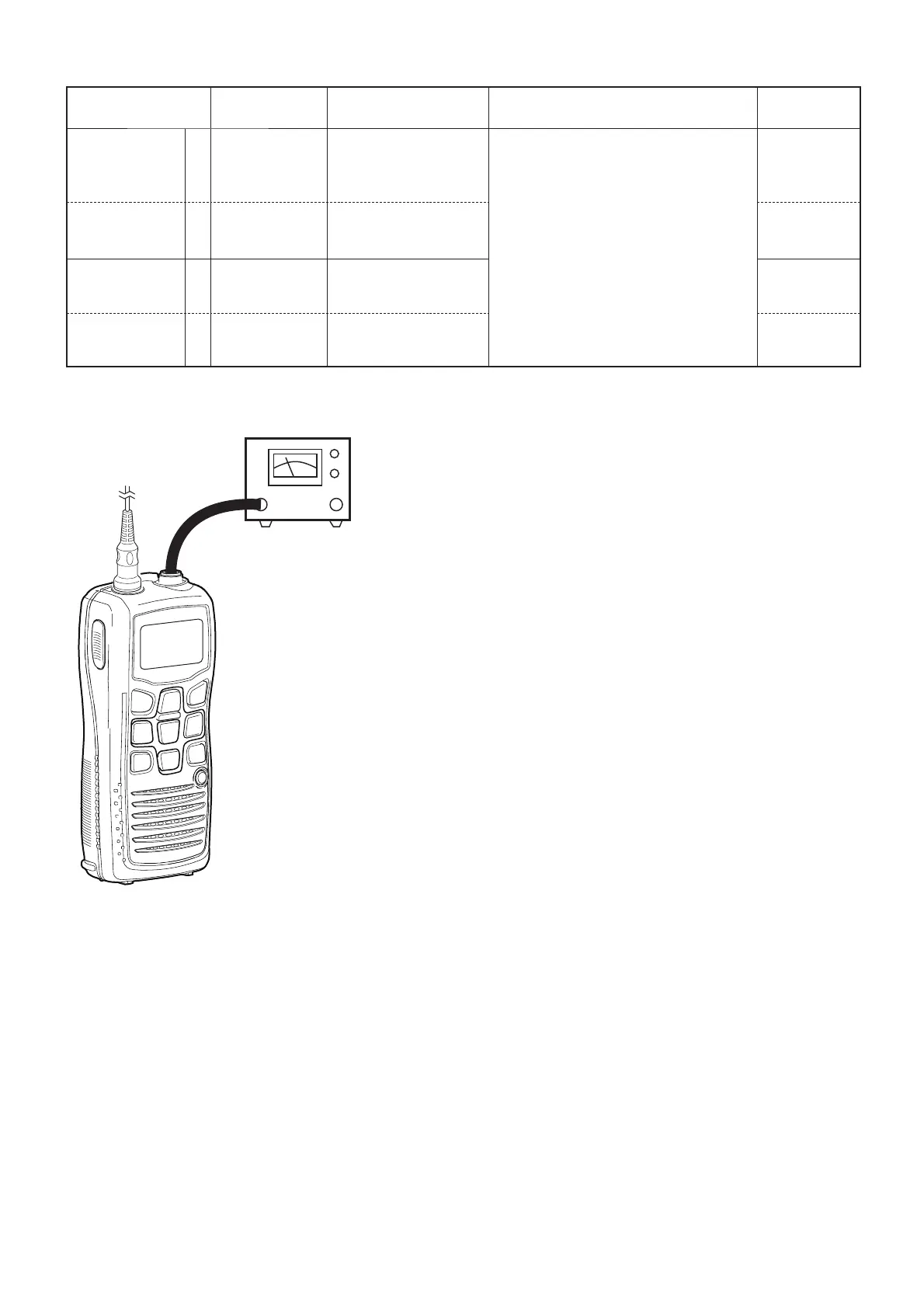

1) Connect an RF power meter to the
antenna connector.
2) Adjust the TX power.
5.6 W
Except [AUS]
4.7 W
[AUS]
(Using BP-251;
With alkaline
batteries)
1
[RF Power
(A_High)]
• CH. : 16
• TX power : High
• Transmitting
2.0 W
-Low power-
(Except [FRG])
2
[RF Power
(Low)]
• CH. : 16
• TX power : Low
• Transmitting
0.75 W
(For [FRG]) 2
[RF Power
(E-Low)]
• CH. : 16
• TX power : Low
• Transmitting
0.45 W
RF POWER METER
(10 W/50 Ω)
JIG cable
Select an adjustment item using [
↑
] / [
↓
] keys, then set to the specifi ed value using [
←
] / [
→
] keys on the connected PC’s keyboard.
5-4 TRANSMIT ADJUSTMENTS
