CONNECTIONS AND MAINTENANCE

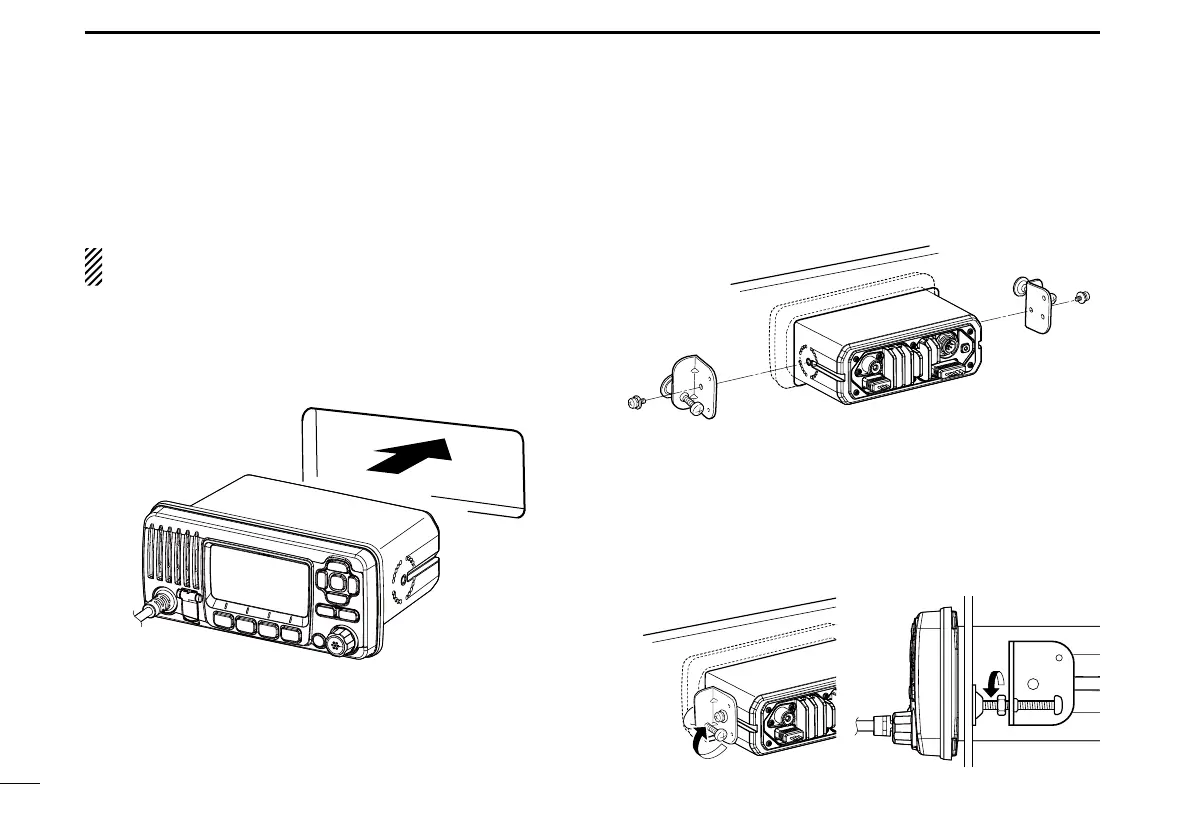

■ MB-132 installation
An optional MB-132 flush mount is available for mounting
the transceiver to a flat surface, such as an instrument panel.
KEEP the transceiver and microphone at least 1 meter
away from your vessel’s magnetic navigation compass.
q Using the template on page 95, carefully cut a hole into
the instrument panel, or wherever you plan to mount the
transceiver.
w Slide the transceiver through the hole, as shown below.
e Attach the clamps on either side of the transceiver with two
M5 × 8 mm supplied bolts.
• Make sure that the clamps align parallel to the transceiver body.
r Tighten the end bolts on the clamps (clockwise) so that the
clamps press firmly against the inside of the instrument
control panel.
t Tighten the locking nuts (counterclockwise) so that the
transceiver is securely mounted in position, as shown below.
y Connect the antenna and power cable, then return the in-
strument control panel to its original place.
